▼ Connect the Ethernet Network Cables

The server has four network connectors, marked NET0, NET1, NET2, and NET3.
These connectors are RJ-45 Gigabit Ethernet.
●
Connect a Category 5 cable from your network switch or hub to Ethernet Port 0
(NET0) on the rear of the chassis.
NET0 is the farthest left port in the 4-port network cluster.
Connect Category 5 cables from your network switch or hub to the remaining
Ethernet ports (NET1, NET2, NET3), as needed.

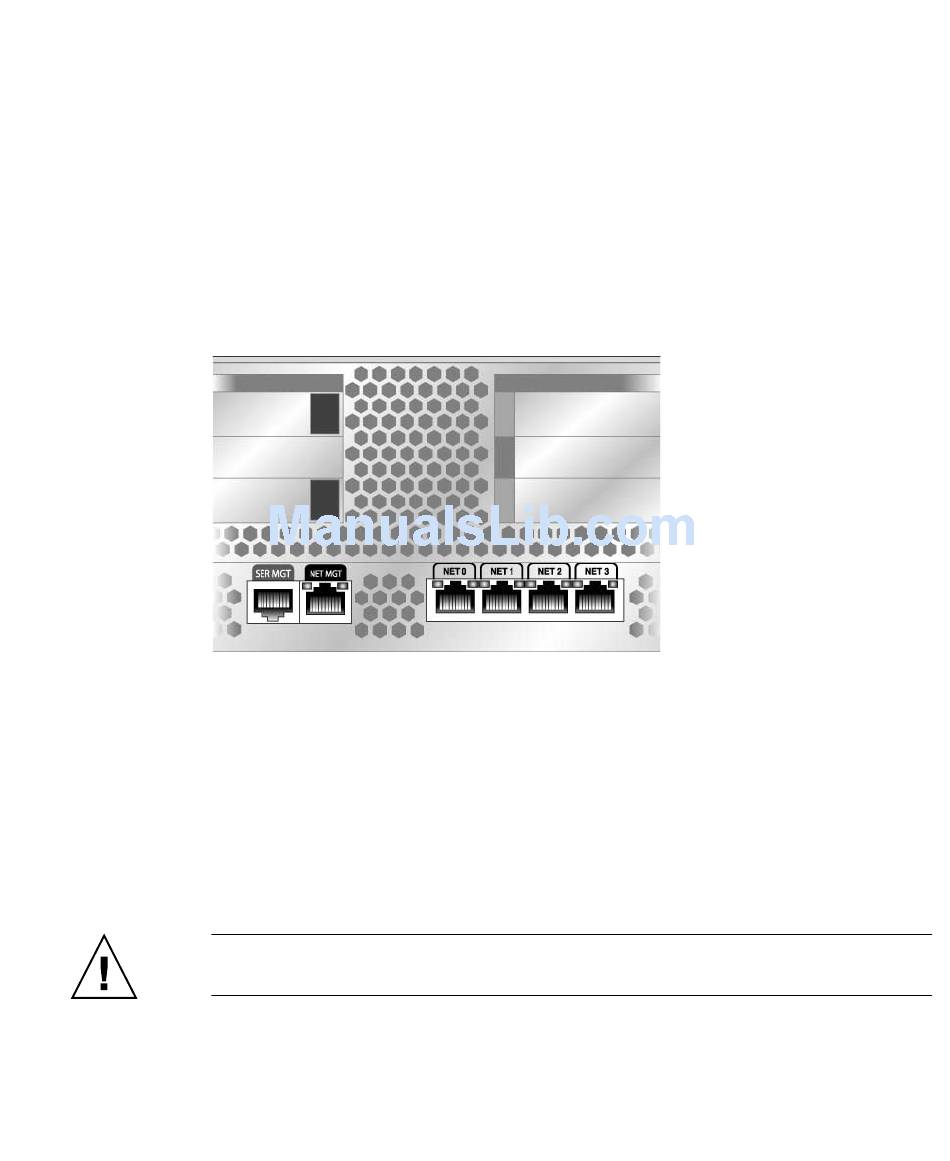

Service Processor Ethernet Network Ports – Rear Panel
FIGURE:
Related Information
"Connect the AC Power Cable to the Server" on page 41
■

▼ Connect the AC Power Cable to the Server

Powering on the system for the first time requires special preparation and
procedures. For example, if you have not prepared a display before connecting the
AC power cable, system messages might be lost.
Caution – Finish the hardware procedures in this chapter, but do not attach the AC
power cable yet.
Powering on the system for the first time requires special preparation and
procedures. For example, if you have not prepared a display before connecting the
AC power cable, system messages could be lost.
Installing the SPARC Enterprise T5120 and T5220 Servers 41
