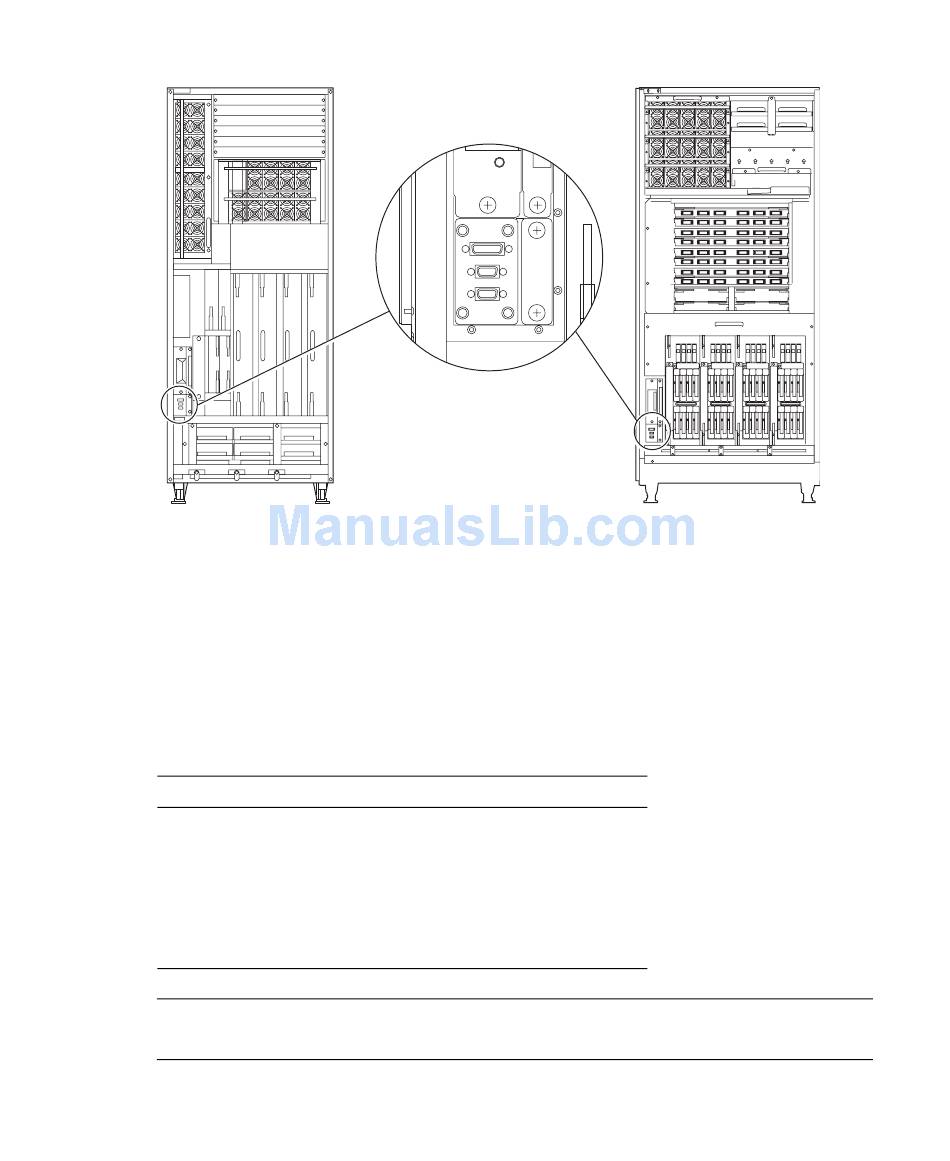

FIGURE 3-30
3.4.3
Cable Connection Between the Base and Expansion
Cabinets of the M9000 Server
If the system includes the M9000 server expansion cabinet, connect the necessary cables
between the base cabinet and expansion cabinet. The cables come with the product.
TABLE 3-2
Cable Type
Inter-XSCF unit data cable
Inter-CLK unit data cable
Inter-CLK unit clock cable
Inter-XB unit data cable
Inter-XB unit clock cable
Note – The cable connection should be performed by at least two persons; one person
working on the base cabinet side and the other person working on the expansion cabinet side.
3-34
SPARC Enterprise M8000/M9000 Servers Installation Guide • October 2012
UPC Ports
Cable Types and Quantities
Quantity
2
2
4
48
8
