Sun Oracle SPARC T3-2 Service Manual page 131

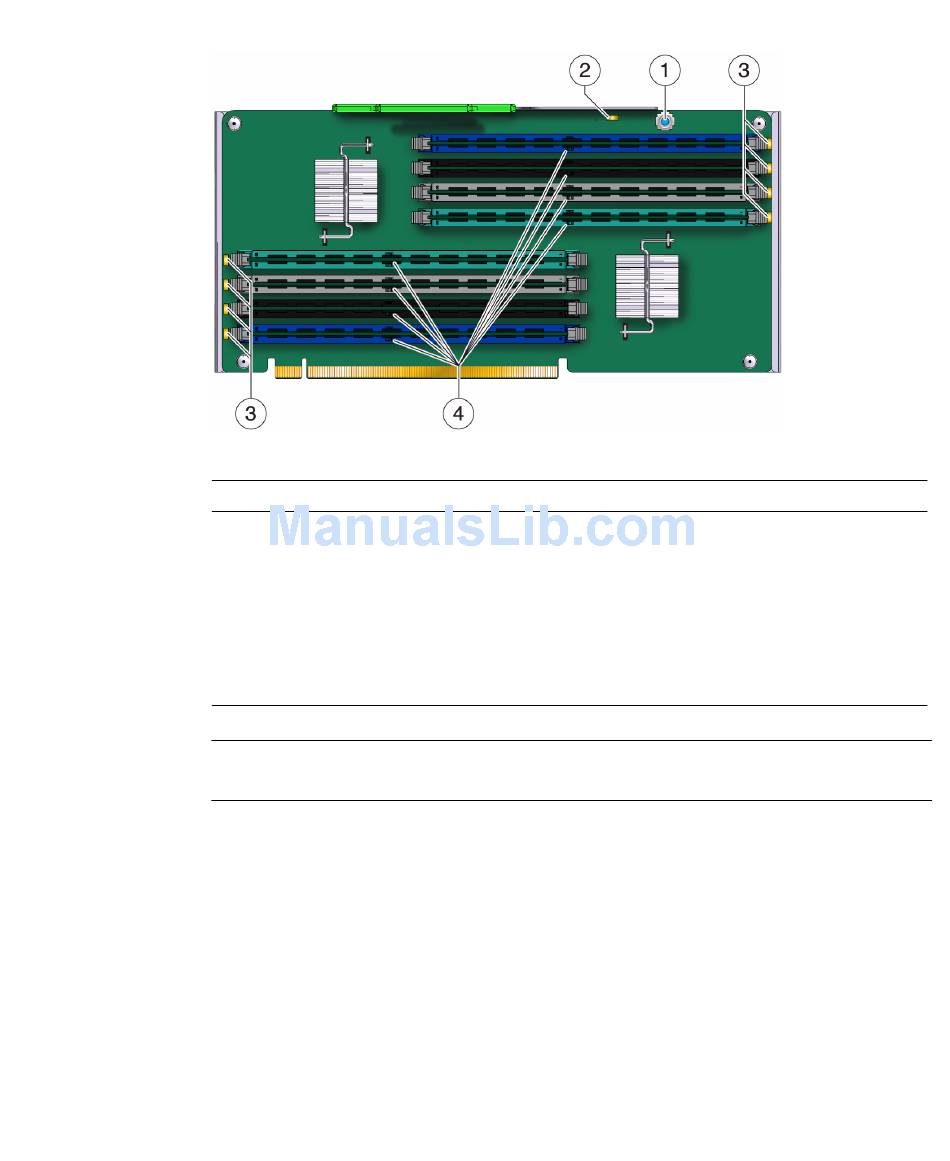

No. LED
1 Memory riser
remind button
2 Memory riser power
LED
3 DIMM Fault LED
4 DIMM keys
Note – The front and rear panel Service Required LEDs are also lit when the system
detects a DIMM fault.
Related Information
"Front and Rear Panel System Controls and LEDs" on page 20
■
"Locate a Faulty DIMM (show faulty Command)" on page 120
■
"Remove a Memory Riser" on page 120
■
Color Description
Blue Push this button to identify the faulty or
misconfigured DIMM(s).
Green Indicates that the riser is operating normally.
Amber Indicates that the riser has a fault.
Amber Identifies a faulty or misconfigured DIMM.
Notches that ensure the DIMMs are correctly
oriented.
Servicing Memory Risers and DIMMs 119
