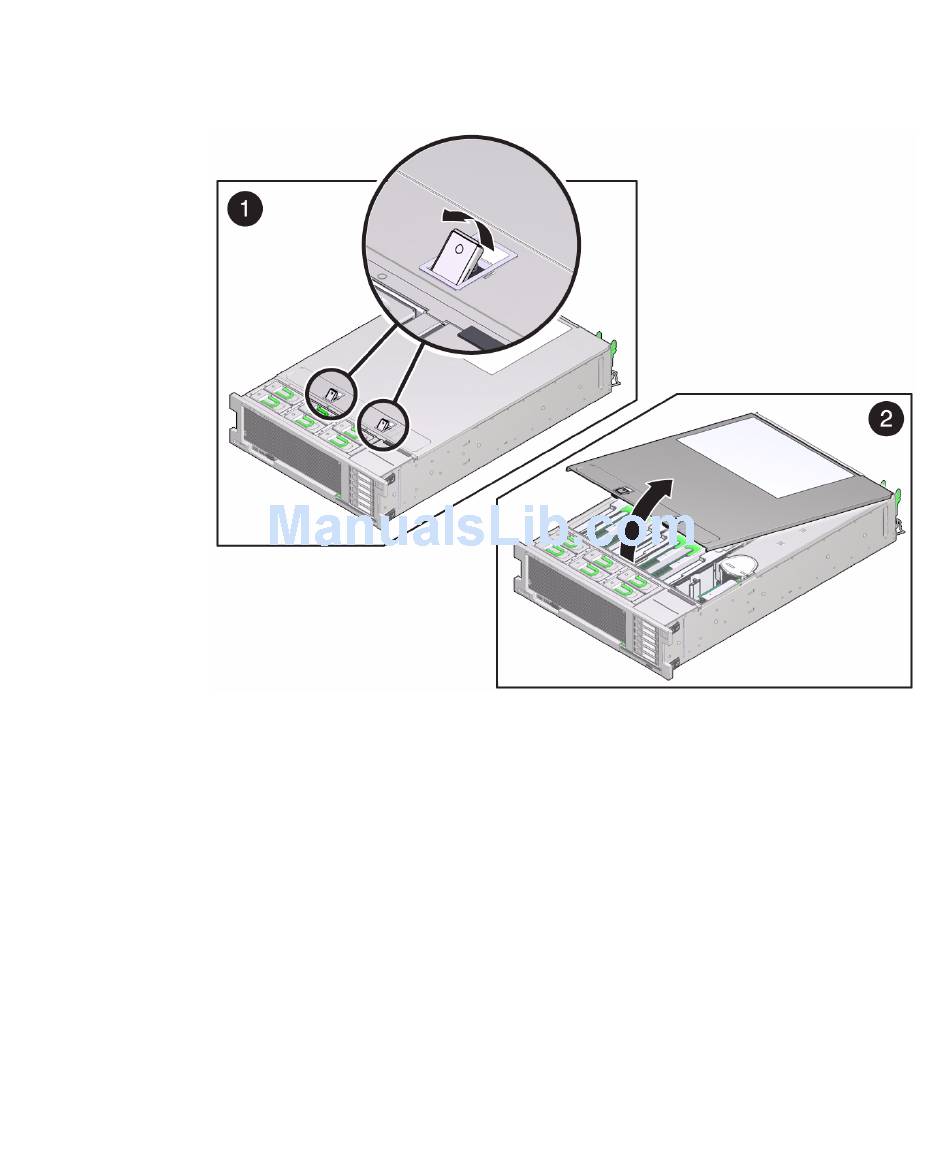

2. To unlatch the server top cover, insert your fingers under the two cover latches
and simultaneously lift both latches in an upward motion as shown in panel 1
of the following figure.
3. Lift the cover slightly and slide it toward the front of the server chassis about
0.5 inch (12 mm).
4. Lift up and remove the top cover as shown in panel 2 of the preceding figure.
Related Information
"Install the Top Cover" on page 196
■
Preparing for Service
77
