Dimm Fru Names - Sun Oracle SPARC T3-2 Service Manual

TABLE:
DIMM Capacity
4 GB
8 GB
Related Information
"DIMM Population Rules" on page 112
■
"DIMM FRU Names" on page 114
■
"DIMM Rank Classification Labels" on page 115
■
"Increase Server Memory With Additional DIMMs" on page 126
■
"DIMM Configuration Error Messages" on page 132
■

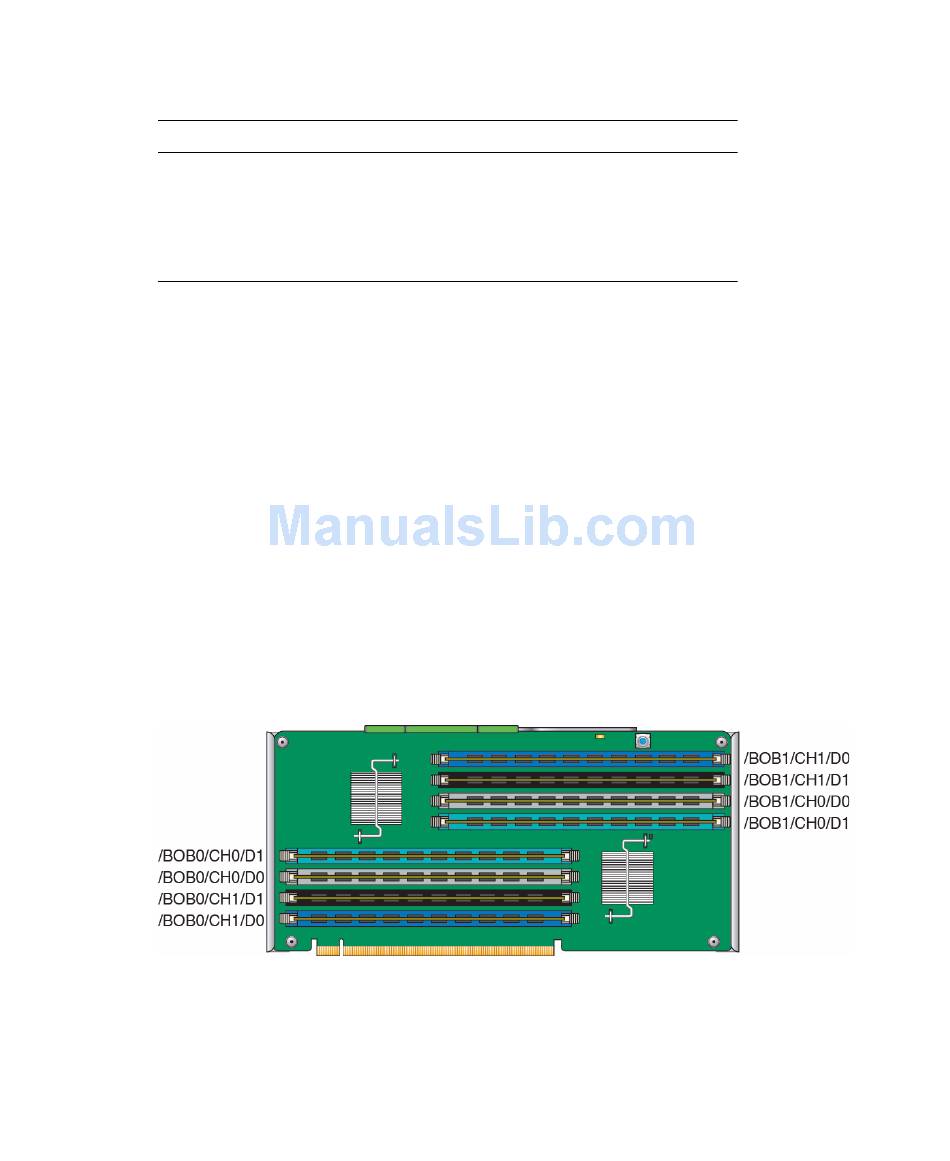

DIMM FRU Names

DIMM FRU IDs are based on the location of the memory riser in the server and the
DIMM slot on the memory riser. For example, the full FRU ID for the top-most
DIMM slot (BOB1/CH1/D0) on the first memory riser (CMP0/MR0) is:
/SYS/MB/CMP0/MR0/BOB1/CH1/D0
114 SPARC T3-2 Server Service Manual • December 2013
Supported DIMM Configurations
Number of DIMMs Installed
16 (half population)
32 (full population)
16 (half population)
32 (full population)
Total Memory Capacity
64 GB
128 GB
128 GB
256 GB
