Related Information
"Front Panel Components" on page 3
■
"Rear Panel Components" on page 6
■
"Connect the NET MGT Port Cable" on page 45
■
"Assign a Static IP Address to the SP" on page 55
■
Gigabit Ethernet Ports
Four RJ-45 Gigabit-Ethernet connectors (NET0, NET1, NET2, NET3) are located on
the rear panel. The Ethernet interfaces operate at 10 Mbit/sec, 100 Mbit/sec, and
1000 Mbit/sec.

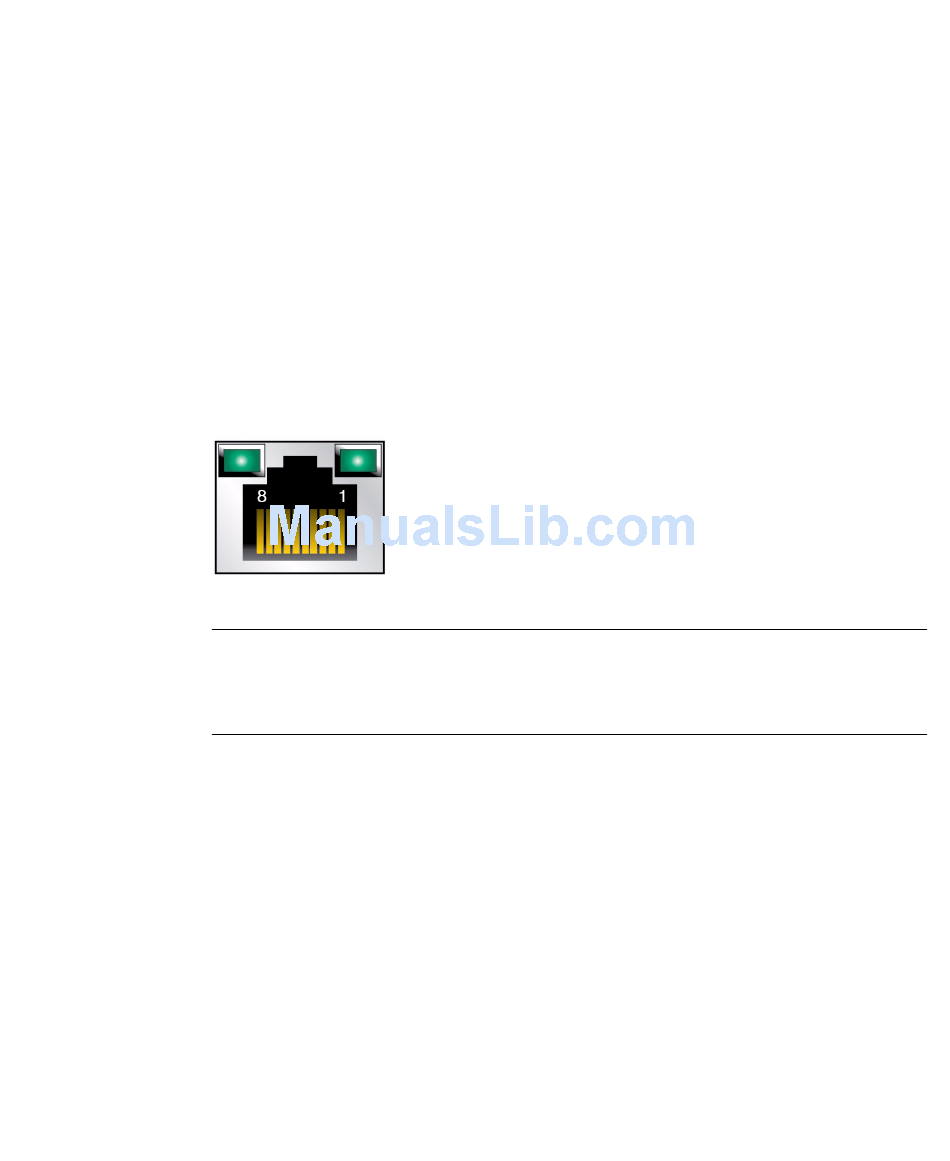

Gigabit Ethernet Port
FIGURE:
Figure Legend
1
Transmit/Receive Data 0 +
2
Transmit/Receive Data 0 –
3
Transmit/Receive Data 1 +
4
Transmit/Receive Data 2 +
Related Information
"Front Panel Components" on page 3
■
"Rear Panel Components" on page 6
■
"Connect the NET MGT Port Cable" on page 45
■
Video Port
The server has one 15-pin VGA video port located on the server's rear panel.
Maximum supported resolution is 1024 x 768.
5
Transmit/Receive Data 2 –
6
Transmit/Receive Data 1 –
7
Transmit/Receive Data 3 +
8
Transmit/Receive Data 3 –
Connecting Cables
43
