Foundry Switch and Router Installation and Configuration Guide
You can further limit the broadcast area of flooding by defining an area range. The area range allows you to
assign an aggregate value to a range of IP addresses. This aggregate value becomes the address that is
advertised instead all of the individual addresses it represents being advertised. You can assign up to 32 ranges
in an OSPF area.
An OSPF router can be a member of multiple areas. Routers with membership in multiple areas are known as
Area Border Routers (ABRs). Each ABR maintains a separate topological database for each area the router is
in. Each topological database contains all of the LSA databases for each router within a given area. The routers
within the same area have identical topological databases. The ABR is responsible for forwarding routing
information or changes between its border areas.
An Autonomous System Boundary Router (ASBR) is a router that is running multiple protocols and serves as a
gateway to routers outside an area and those operating with different protocols. The ASBR is able to import and
translate different protocol routes into OSPF through a process known as redistribution. For more details on
redistribution and configuration examples, see "Enable Route Redistribution" on page 17-30.
Area 0.0.0.0 Backbone
Link
Activity
Console
Power
Area 192.5.1.0
Link Link
Activity Activity
Console
Power
Link Link
Activity Activity
Console
Power

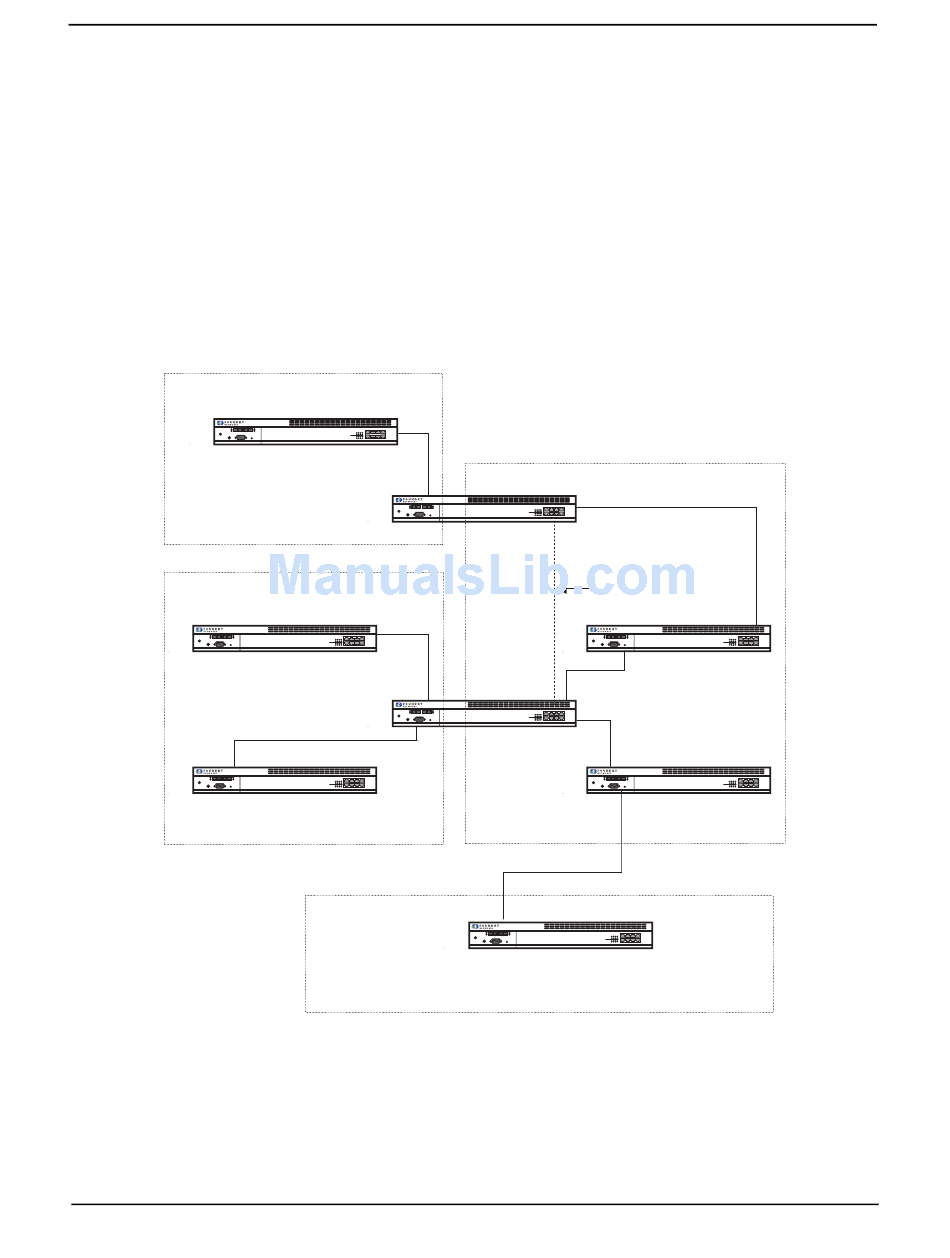

Figure 17.1 OSPF operating in a network
Designated Routers in Multi-Access Networks
In a network that has multiple routers attached, OSPF elects one router to serve as the designated router (DR)
and another router on the segment to act as the backup designated router (BDR). This arrangement minimizes
the amount of repetitive information that is forwarded on the network by forwarding all messages to the designated
router and backup designated routers responsible for forwarding the updates throughout the network.
17 - 2
Link
Activity
FDX
Link/Act
FDX
Link/Act
Link Link
Activity Activity
Console
Power
Router A
e8
FDX
Link/Act
FDX
Link/Act
Link Link
Activity Activity
Console
Power
FDX
Link/Act
FDX
Link/Act
Router C
Area 195.5.0.0
Router D
FDX
Link/Act
FDX
Link/Act
208.5.1.1
Area Border
Router (ABR)
Virtual Link
Link Link
Activity Activity
Console
Power
206.5.1.1
Router B
FDX
Link/Act
FDX
Link/Act
Area Border
Router (ABR)
Link Link
Activity Activity
Console
Power
Autonomous System
Border Router (ASBR)
Router G
Link Link
Activity Activity
FDX
Console
Link/Act
FDX
Power Link/Act
RIP Router
Area 200.5.0.0
FDX
Link/Act
FDX
Link/Act
Router E
Router F
FDX
Link/Act
FDX
Link/Act
December 2000
