Adaptive Rate Policy for a Specific MAC Address

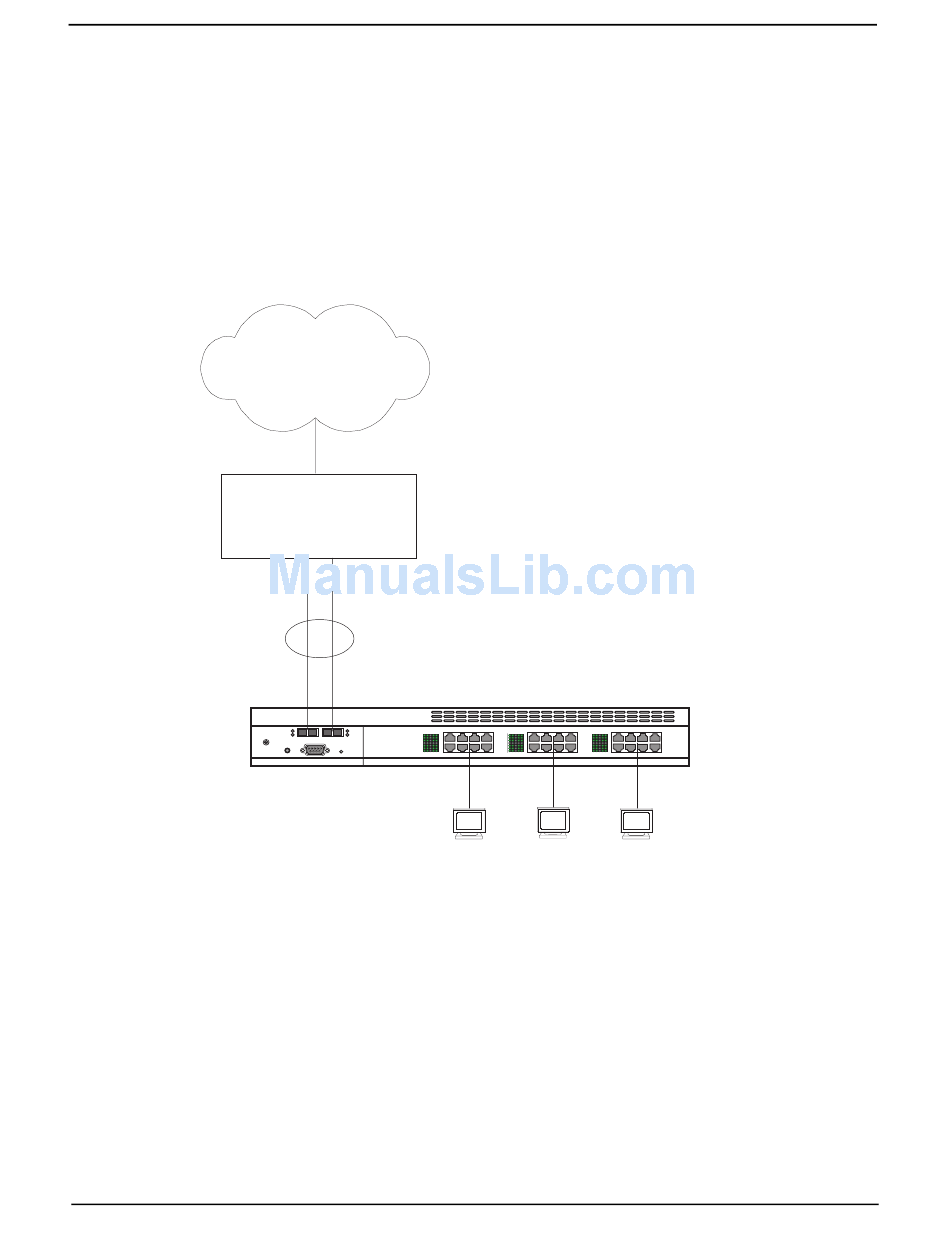

Figure 14.3 shows an example of a rate policy consisting of one rule applied to a virtual routing interface ("virtual
interface" or "VE"). A virtual interface enables ports in a VLAN to route to other VLANs. In this example, the
VLAN contains three ports, attached to three hosts. The hosts use virtual interface ve2 for routing.
The rate policy in this example forwards all conforming traffic from the host with MAC address aaaa.bbbb.cccc but
drops all additional traffic from the host. Conforming traffic is traffic within the Normal Burst Size specified in the
rate policy. Within a given Committed Time Interval, if the host sends more bytes than the number of bytes
allowed by the Normal Burst Size, the policy drops the excess bytes.
The other hosts in the VLAN do not have rules. As a result, their bandwidth is not limited.
Figure 14.3 Adaptive Rate Limiting applied to virtual routing interface
The rule could be applied to the port attached to the host for the same results. However, since the rule is
associated with the virtual interface instead of a physical port, the policy remains in effect even if the host moves
to another port within the VLAN.
