queue (qosp0). If a tagged packet's 802.1p priority level is always in the qosp0 queue, then the packet's outbound
queue is affected by other items such as incoming port, VLAN, and so on.
To reassign the priorities to different queues, use either of the following methods.
USING THE CLI
To reassign all 802.1p priority levels 2 – 7 to the best-effort queue (qosp0), enter the following commands:
BigIron(config)# qos tagged-priority 2 qosp0
BigIron(config)# qos tagged-priority 3 qosp0
BigIron(config)# qos tagged-priority 4 qosp0
BigIron(config)# qos tagged-priority 5 qosp0
BigIron(config)# qos tagged-priority 6 qosp0
BigIron(config)# qos tagged-priority 7 qosp0
BigIron(config)# write memory
Syntax: [no] qos tagged-priority <num> <queue>
The <num> parameter can be from 0 – 7 and specifies the IEEE 802.1 equivalent to one of the four QoS queues.
The <queue> parameter specifies the queue to which you are reassigning the priority level. You must specify one
of the named queues. The default names are qosp3, qosp2, qosp1, and qosp0. The example above reassigns
the 802.1p levels to queue qosp0. (There is no need to reassign levels 0 and 1 in this case, because they are
already assigned to qosp0 by default.)
USING THE WEB MANAGEMENT INTERFACE
1. Log on to the device using a valid user name and password for read-write access. The System configuration
dialog is displayed.
2. Click on the plus sign next to Configure in the tree view to expand the list of configuration options.
3. Click on the plus sign next to QoS in the tree view to expand the list of QoS option links.

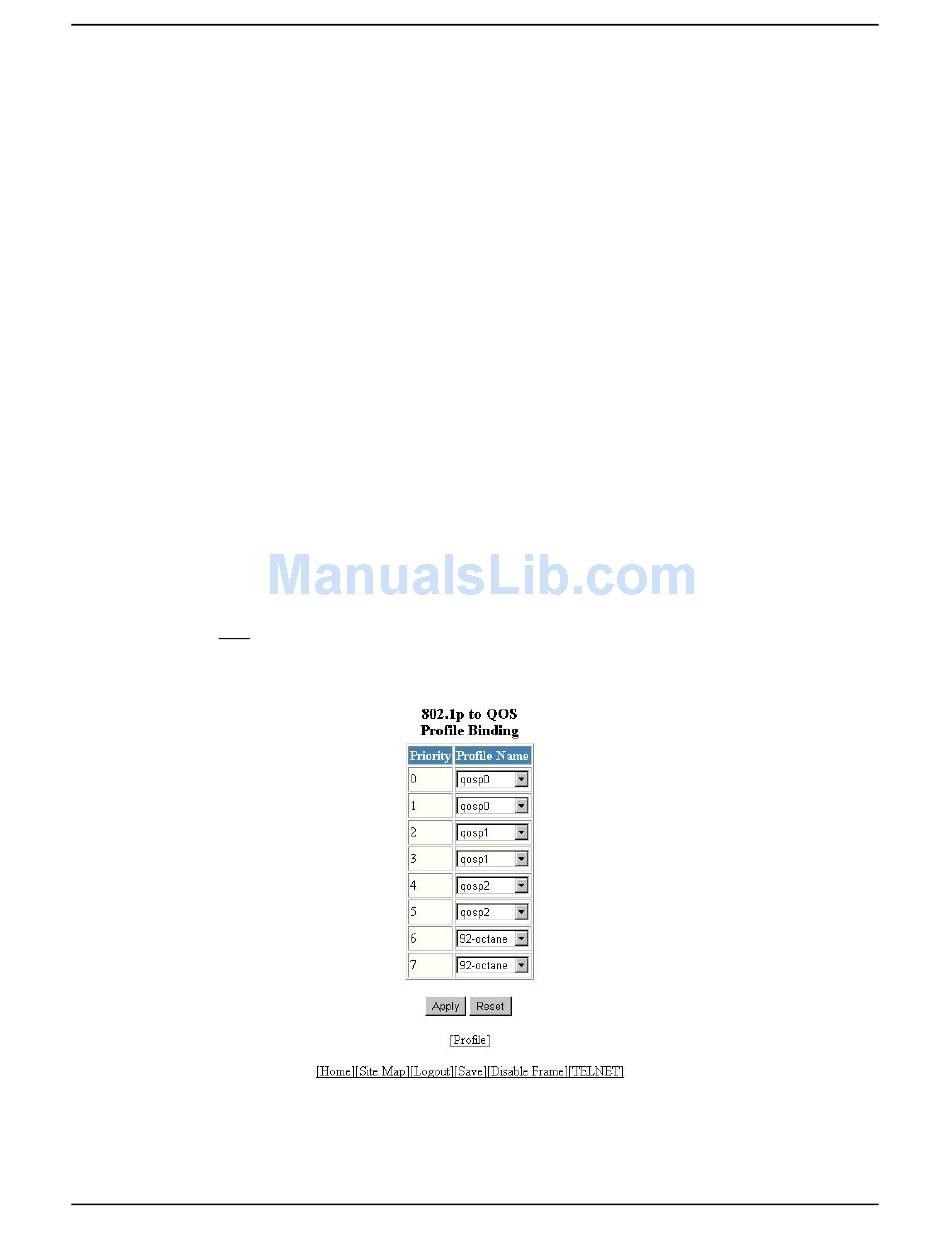

4. Click on the Bind link to display the QoS 802.1p to QoS Profile Binding configuration panel, as shown in the
following figure.
5. For each priority level, select the QoS queue to which you want to reassign the profile by selecting the queue
name from the Profile field's pulldown list. For example, to reassign priority 7 to QoS queue qosp0, select
qosp0 from the Profile Name field's pulldown list in the row for priority 7.
