Foundry Switch and Router Installation and Configuration Guide
Router 1
TurboIron
Link Link
Activity Activity
Console
Power
Active
Preference = 200
Router 1:
IP Address for Interface A: 192.53.5.2
Virtual Router IP address for Interface A: 192.53.5.1
IP Address for Interface C: 192.55.4.2
Virtual Router IP address for Interface C: 192.55.4.1

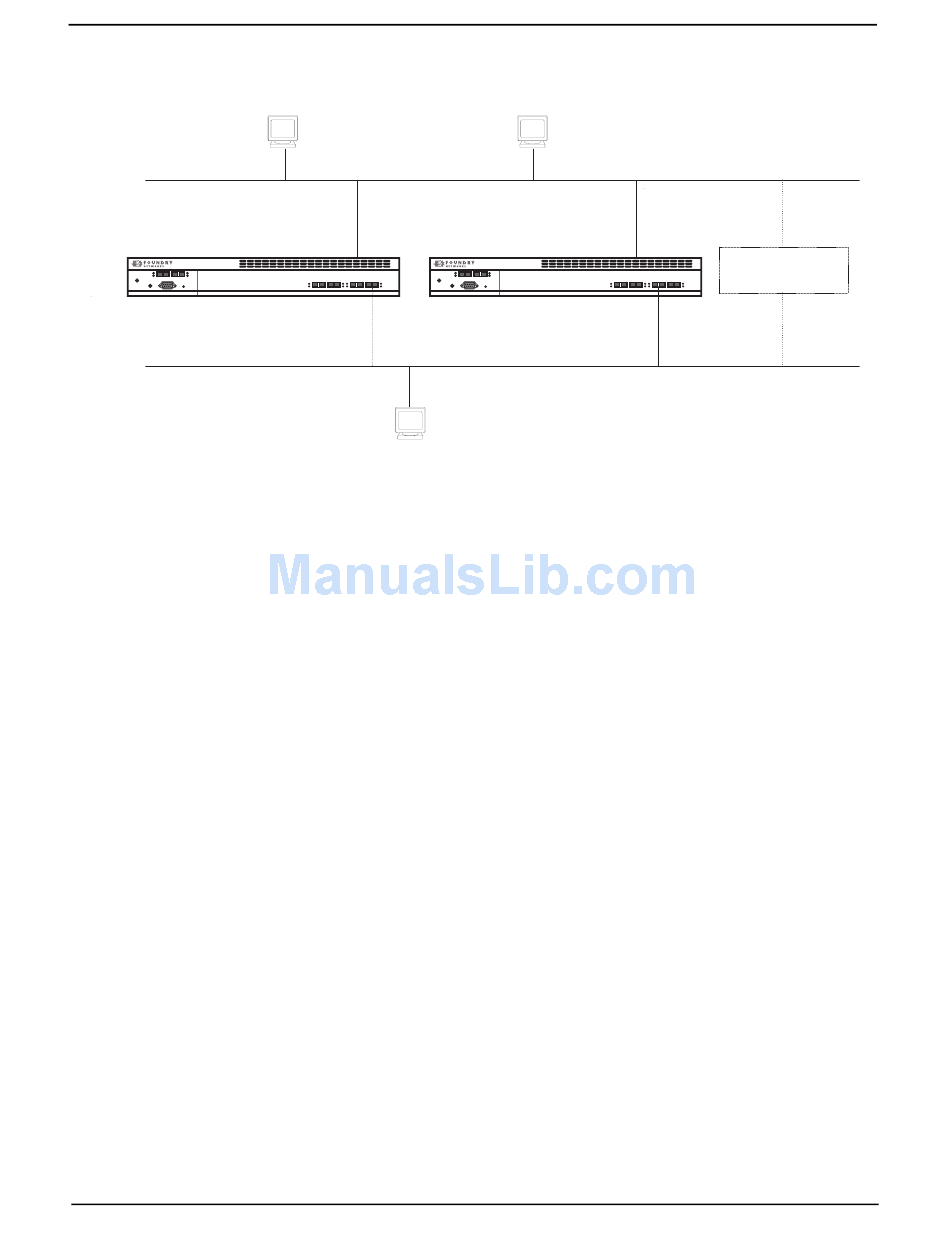

Figure 22.1 FSRP operating in a NetIron network
22 - 2
Host 1
Default Router
192.53.5.1
192.53.5.1
(A) Router 2
192.53.5.2
Activity
FDX FDX
Link/Act Link/Act Power
Standby
(C)
192.55.4.2
Preference = 60
192.55.4.1
Default Router
192.55.4.1
Host 3
Host 2
Default Router
192.53.5.1
192.53.5.1
192.53.5.3
TurboIron
Link Link
Activity
Console
FDX
Link/Act
192.55.4.3
192.55.4.1
Router 2:
IP Address for Interface B: 192.53.5.3
Virtual Router IP address for Interface B: 192.53.5.1
IP Address for Interface D: 192.55.4.3
Virtual Router IP address for Interface D: 192.55.4.1
192.53.5.1
(B)
Virtual
Router
FDX
Link/Act
(D)
192.55.4.1
