Figure 11.1 illustrates a cycle through the queues.
q2
q3 q3
q3 q3
q2
q3 q3
q3 q3
q2
q3 q3
q3 q3
q1

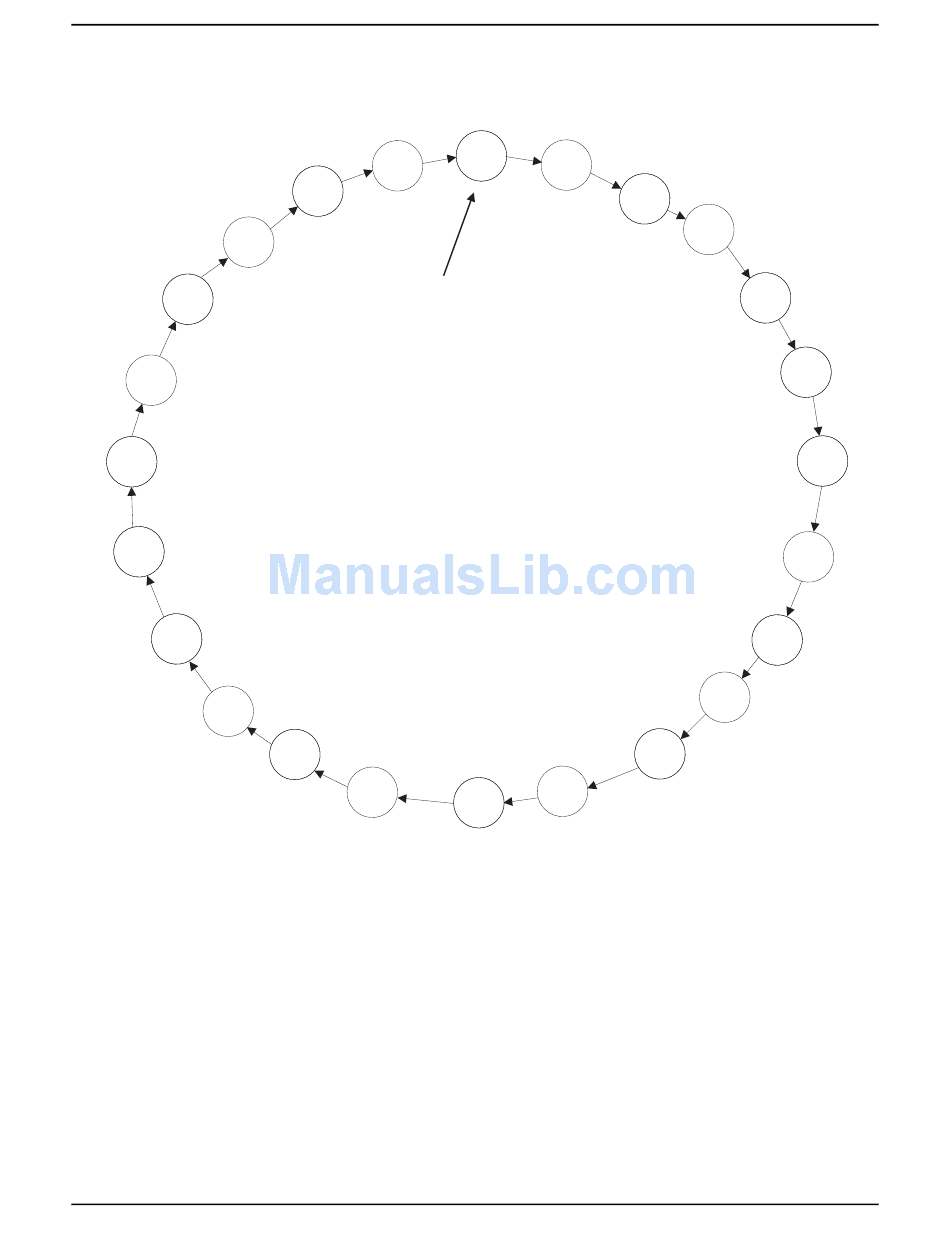

Figure 11.1 Example of a QoS cycle using the default weights
If you change the percentages for the queues, the software changes the weights, which changes the number of
visits a queue receives during a full queue cycle and also the number of packets sent from each queue during
each visit. For example, if you change the percentages so that queue qosp3 receives a weight of 5, then the
system processes five packets in that queue during each visit to the queue.
December 2000
q0
q3 q3
q3 q3
Begin here
q3 q3
q3 q3
q2
Queue 3: weight=4, minimum percentage=80%
Queue 2: weight=3, minimum percentage=15%
Queue 1: weight=2, minimum percentage=3.3%
Queue 0: weight=1, minimum percentage=1.7%
q3 q3
q2
q3 q3
q3 q3
q3 q3
q2
q3 q3
q3 q3
IronClad Quality of Service (QoS)
