Ip Packet Flow Through A Layer 3 Switch - Foundry Networks Switch and Router Installation And Configuration Manual

The number of IP addresses you can configure on an individual interface depends on the Layer 3 Switch model.
To display the maximum number of IP addresses and other system parameters you can configure on a Layer 3
Switch, see "Displaying and Modifying System Parameter Default Settings" on page 10-70.
You can use any of the IP addresses you configure on the Layer 3 Switch for Telnet, Web management, or SNMP
access.
Layer 2 Switches
You can configure an IP address on a Foundry Layer 2 Switch for management access to the Layer 2 Switch. An
IP address is required for Telnet access, Web management access, and SNMP access.
You also can specify the default gateway for forwarding traffic to other sub-nets.

IP Packet Flow Through a Layer 3 Switch

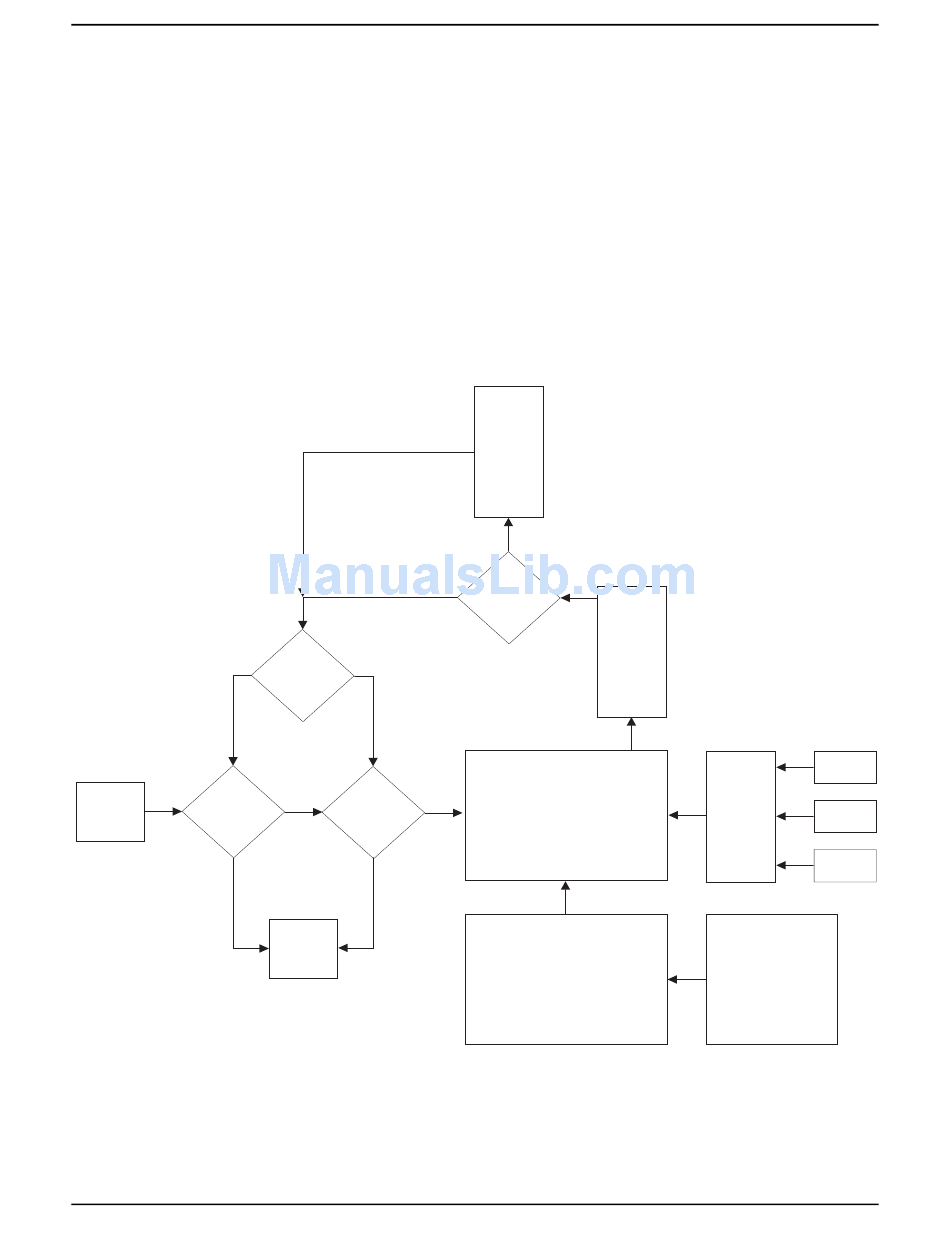

Figure 15.1 shows how an IP packet moves through a Foundry Layer 3 Switch.
Session
Incoming
Table
Port
Y
Figure 15.1 IP Packet flow through a Foundry Layer 3 Switch
December 2000
PBR
or
Y N
IP acc
policy
Fwding
Cache
N N
Y
Outgoing
Port
Load
Balancing
Algorithm
Y
Mult.
Equal-
N
cost
Paths
Lowest
Metric
IP Route
Table
ARP
Cache
Configuring IP
RIP
Lowest
Admin.
OSPF
Distance
BGP4
Static ARP
Table
15 - 3
