If you see one of these prompts, you are now connected to the system and can proceed to "Assigning Permanent
Passwords" on page 2-16.
You can customize the prompt by changing the system name. See "Entering System Administration Information"
on page 10-4.
If you do not see one of these prompts:
1. Make sure the cable is securely connected to your PC and to the Foundry system.
2. Check the settings in your terminal emulation program. In addition to the session settings listed above, make
sure the terminal emulation session is running on the same serial port you attached to the Foundry system.
The EIA/TIA 232 serial communication port serves as a connection point for management by a PC or SNMP
workstation. Foundry switches and Layer 3 Switches come with a standard male DB-9 connector, shown in
Figure 2.6.
Pin Assignment
1
6

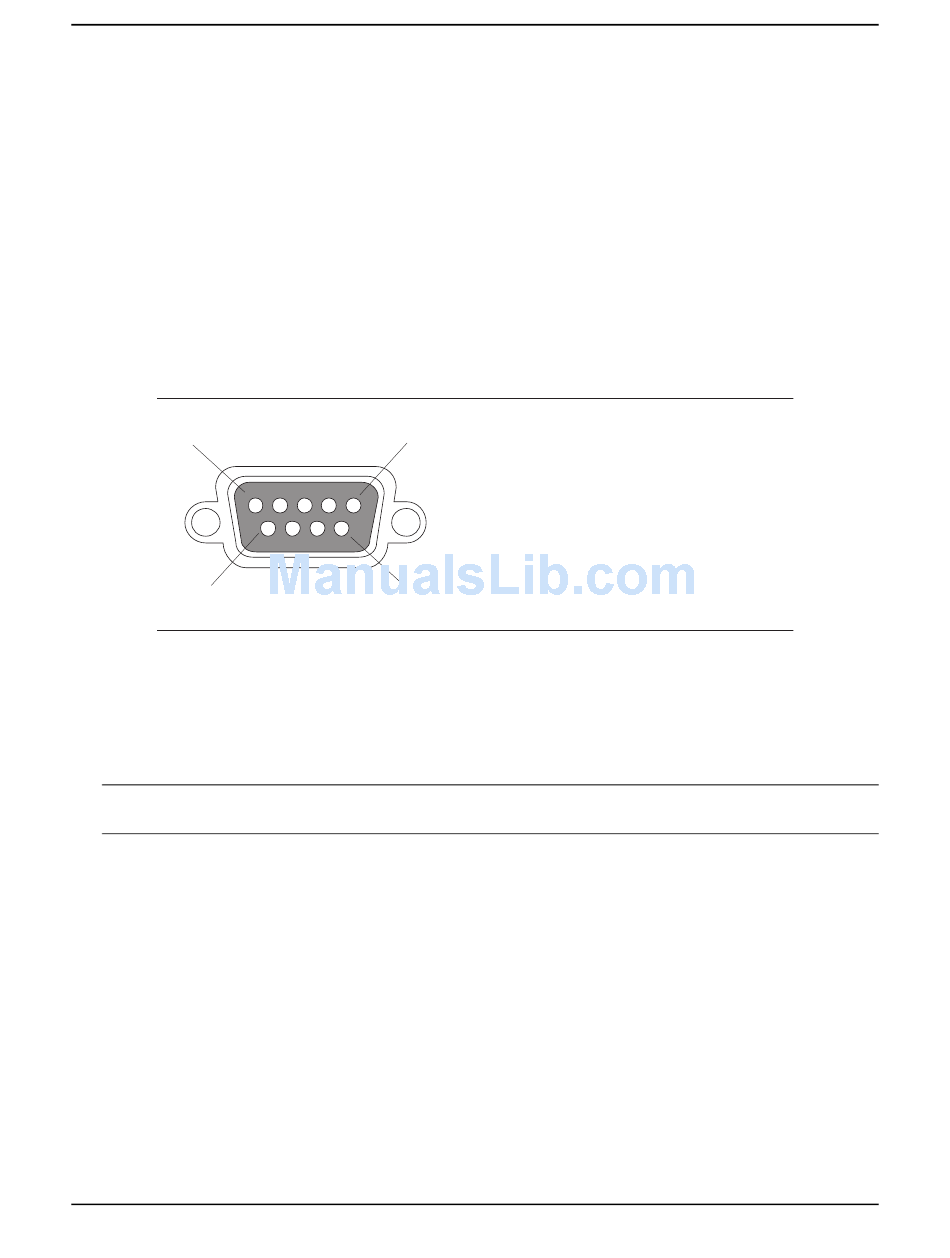

Figure 2.6 Serial port pin and signalling details
Most PC serial ports also require a cable with a female DB-9 connector.
Terminal connections will vary, requiring either a DB-9 or DB-25 connector, male or female.
Serial cable options between a Foundry switch or router and a PC or terminal are shown in Figure 2.7.
NOTE: As indicated in Figure 2.6 and Figure 2.7, some of the wires should not be connected. If you do connect
the wires that are labeled "Reserved", you might get unexpected results with some terminals.
December 2000
DB-9 male
5
9
Installing a Foundry Layer 2 Switch or Layer 3 Switch
Pin Number Switch Signal
1 Reserved
2 TXD (output)
3 RXD (input)
4 Reserved
5 GND
6 Reserved
7 CTS (input)
8 RTS (output)
9 Reserved
2 - 15
