Connecting Network Devices

Foundry devices can support connections to other vendors' routers, switches, and hubs as well other Foundry
devices.

Connectors

• 10BaseT/100BaseTX ports come with RJ45 jacks for standard unshielded twisted pair (UTP/Category 5)
cable connections.
• 100BaseFX ports come equipped with MT-RJ connectors.
• 1000BaseSX ports come equipped with SC connectors.
• 1000BaseLX ports come equipped with SC connectors.
• 1000BaseLH ports come equipped with SC connectors.
• 1000BaseT ports come equipped with RJ-45 connectors.
Pin Assignment
8
1

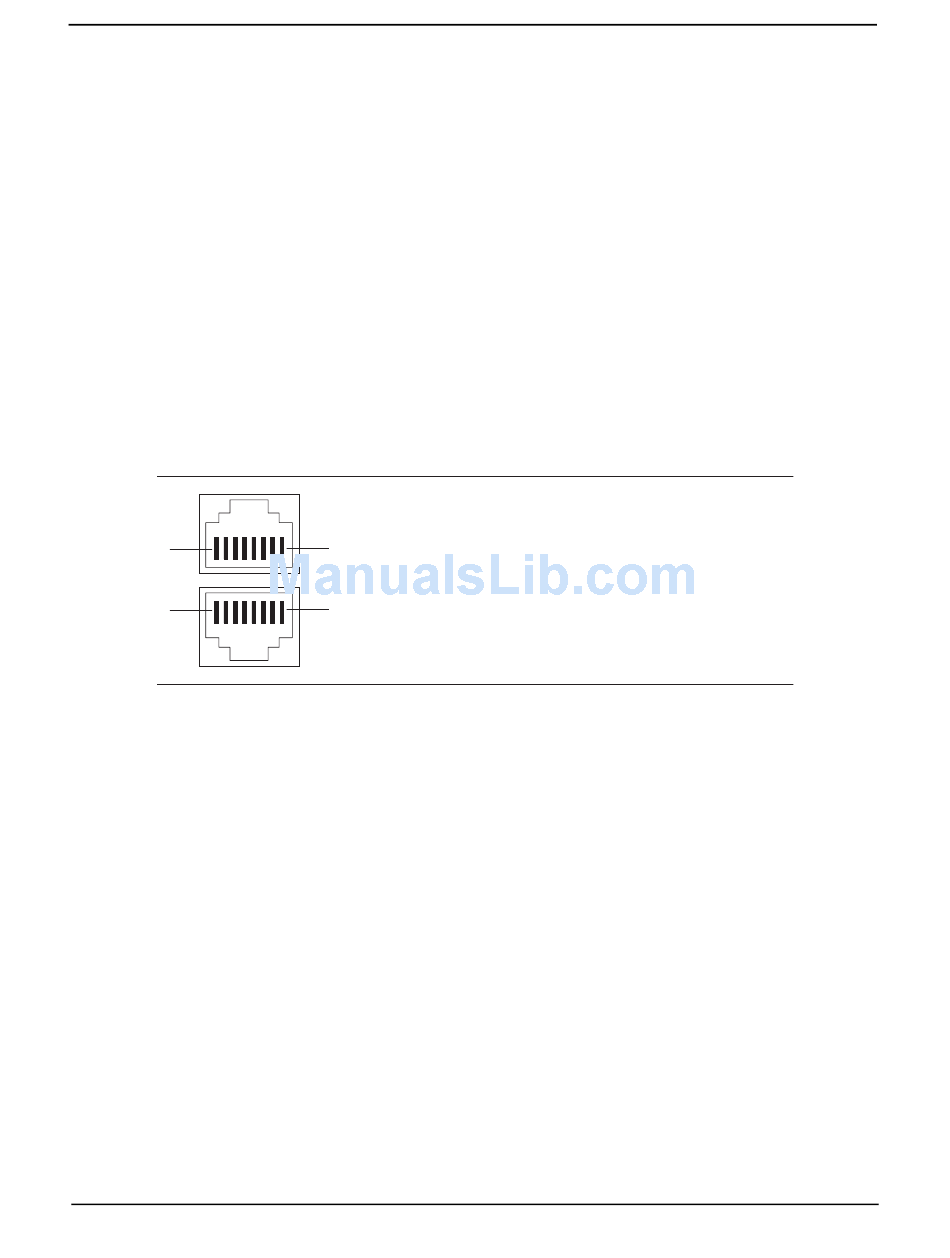

Figure 2.10 Pin assignment and signalling for 10/100BaseTX and 1000BaseT ports

Cable Length

• 100BaseTX: Cable length should not exceed 100 meters.
• 1000BaseTX: Cable length should not exceed 100 meters.
• 100BaseFX: Cable length should not exceed 2 kilometers.
• 1000BaseSX: Cable length should not exceed 550 meters when operating with multi-mode cabling.
• 1000BaseLX:
Cable length of 2 – 550 meters is supported on 62.5 µm multi-mode fiber (MMF) cabling.
•
Cable length of 2 – 550 meters is supported on 50 µm multi-mode fiber (MMF) cabling.
•
Cable length of 2 – 5000 meters is supported on 9 µm single-mode fiber (SMF) cabling.
•
• 1000BaseLH: Cable length should not exceed 70 kilometers for LHA or 150 kilometers for LHB.
2 - 22
10BaseT
Pin Number MDI-X ports
1 RD+
2 RD-
3 TD
1
4 Not used
5 Not used
6
TD-
8
7 Not used
8 Not used
100BaseTX and 1000BaseT
Pin Number MDI-X ports
1 RD+
2 RD-
3 TD
4 CMT
5 CMT
6
TD-
7 CMT
8 CMT
