Replacing the Power Distribution Board

The power distribution board provides the output power interface between the hot-swap power
supplies and the main board.

Removing the Power Distribution Board

To remove the power distribution board:
1. Observe the safety precautions, warnings, and cautions described in
5.
2. Remove the power supplies. For instructions, see
Blank", page 147.
3. Remove the main board. For instructions, see
4. Remove the SCSI backplane board. For instructions, see
Board", page 214.
5. Remove the seven screws on the power distribution board. See letter "A" in Figure 120.
6. Lift the board from the chassis. See letter "B" in the figure.
7. Install the replacement power distribution board. For instructions, see
Distribution
Board", page 218.
B
A

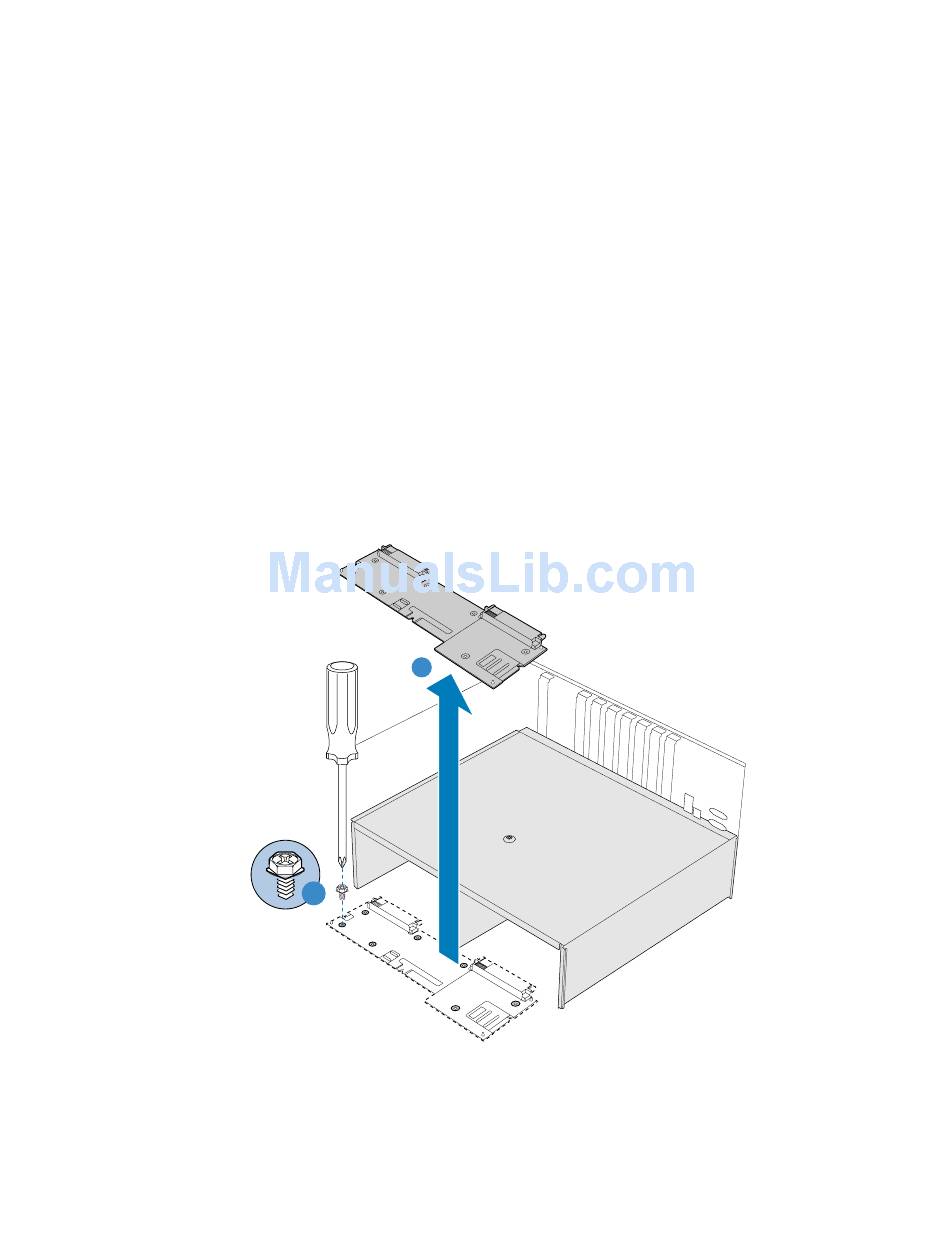

Figure 120. Removing the Power Distribution Board

"Safety
"Removing a Power Supply or an Active Fan
"Removing the Main
Board", page 210.
"Removing the SCSI Backplane
Information", page
"Installing the Power
TP01563
217
