Video Port

The main board and front panel I/O board provide a video port interface with a standard VGA-
compatible, 15-pin connector. Onboard video is supplied by the Radeon* 7000 component with
16MB of on-chip memory.

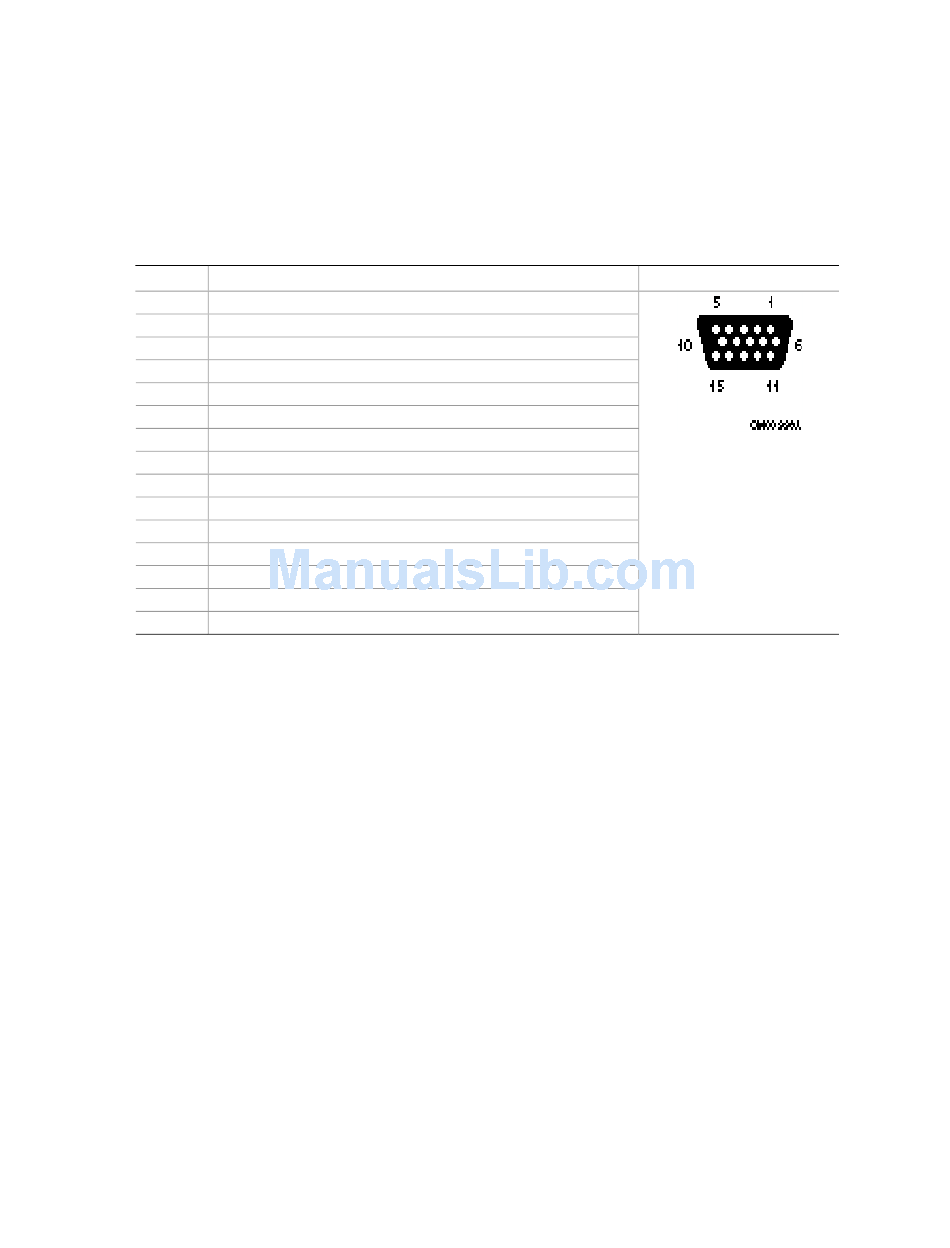

Table 15. Video Connector Pin-out
Pin Signal
1 VID_R (analog color signal red)
2 VID_G (analog color signal green)
3 VID_B (analog color signal blue)
4 No connection
5 GND
6 GND
7 GND
8 GND
9 No connection
10 GND
11 No connection
12 MONID1 (to support DDCx, Display Data Channel* Standard)
13 VID_HSYNC (horizontal sync)
14 VID_VSYNC (vertical sync)
15 MONID2 (to support DDCx, Display Data Channel Standard)
Video Connector
