Removing Memory Board Air Baffle; Figure 76. Removing Memory Board Air Baffle - Intel SR6850HW4 - Server Platform - 0 MB RAM Product Manual

User Serviceable Platform Components

Removing Memory Board Air Baffle

Either a memory board or a memory board air baffle must be installed in each memory board slot.
1. Observe the safety precautions, warnings, and cautions described in
5.
2. Remove the top cover. For instructions, see
3. Insert your fingers into the two holes on the top of the memory board air baffle.
4. Push the tab between the two holes in the direction of the arrow. See letter "A" in Figure 76.
5. Lift the memory board air baffle from the server. See letter "B" in the figure.
160
"Removing the Top
A

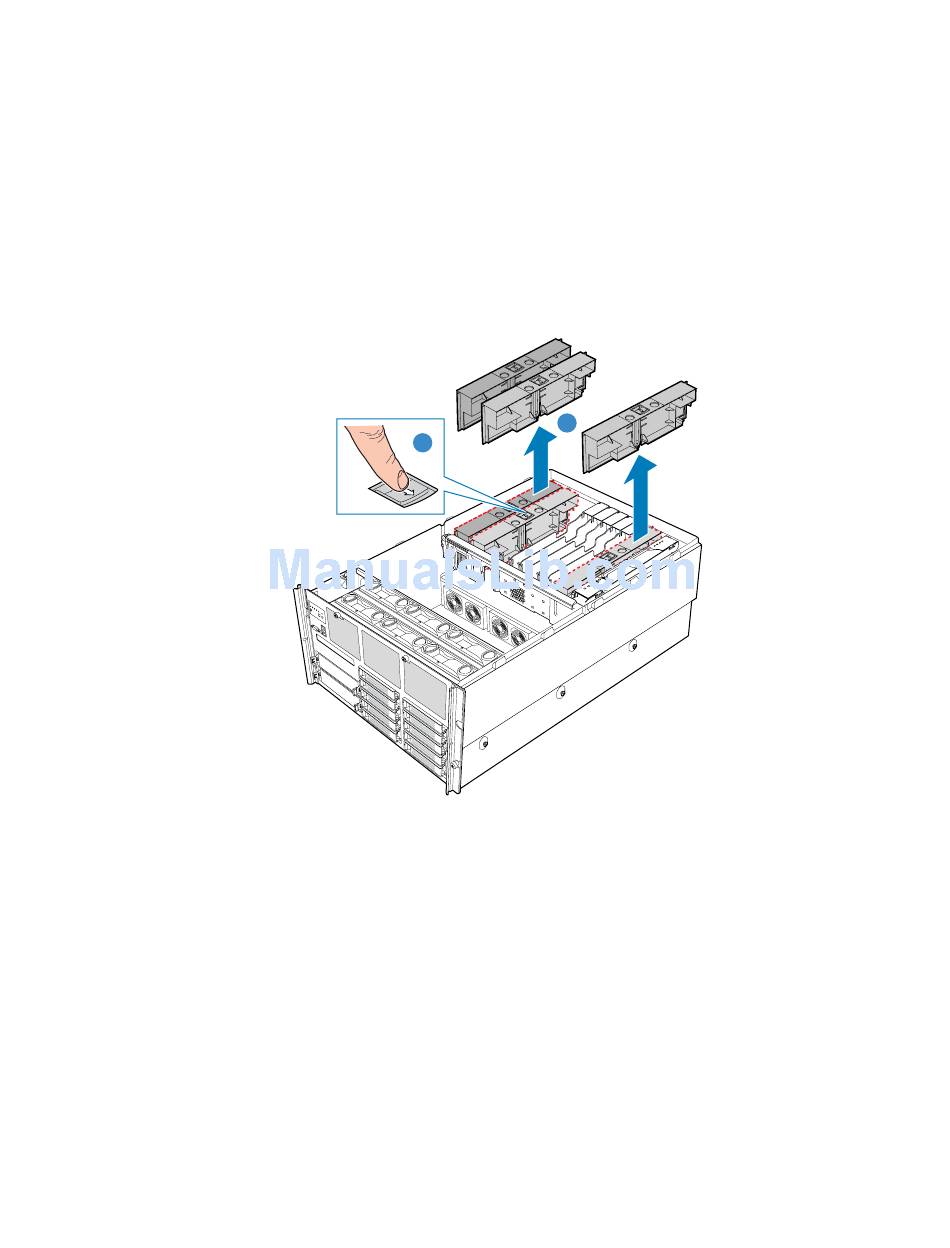

Figure 76. Removing Memory Board Air Baffle

Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
"Safety Information", page
Cover", page 139.
B
TP01521
