Platform Description
®

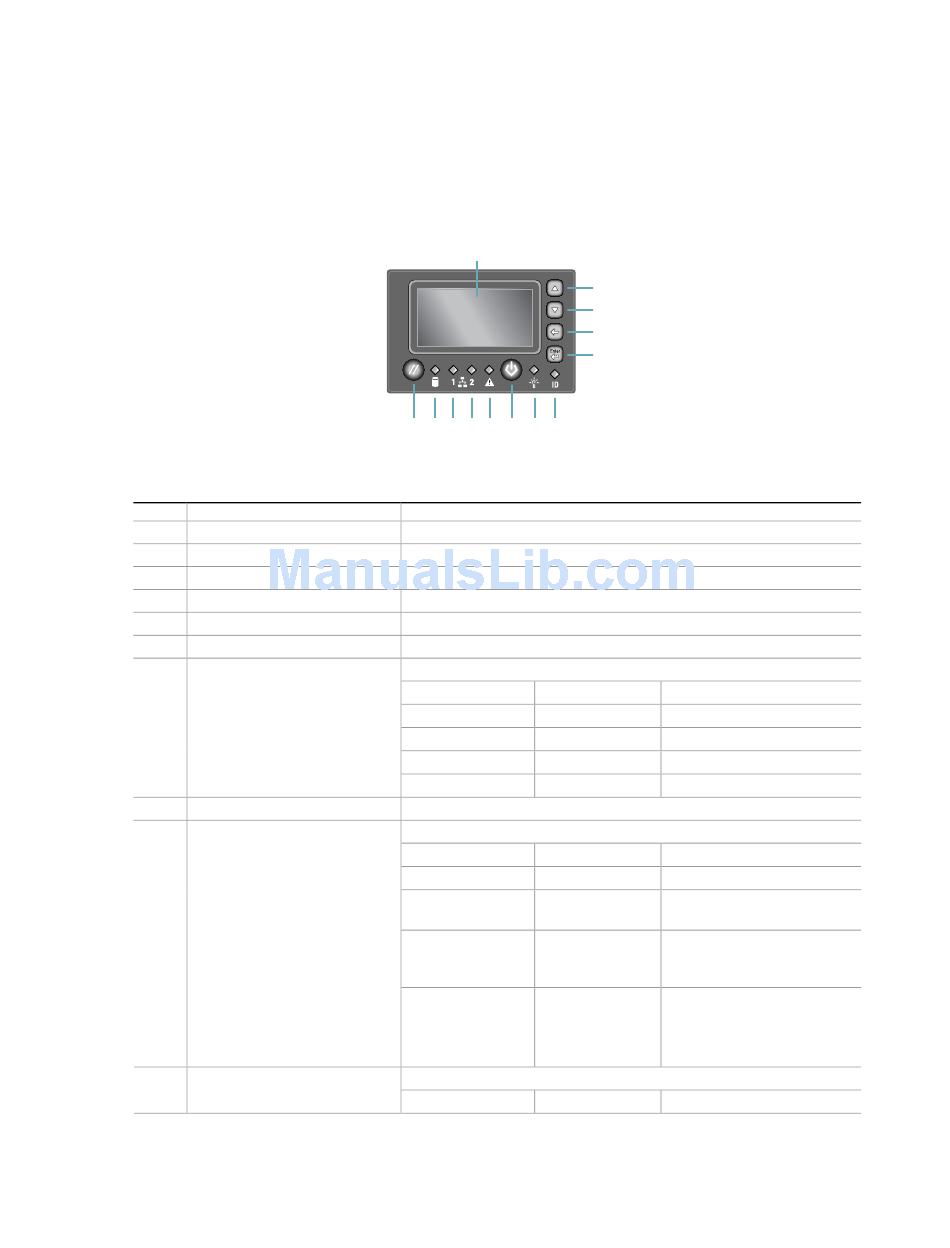

Intel Local Control Panel
®
The Intel Local Control Panel provides a user interface for system management through switches,
status LEDs, and the LCD panel. This control panel also contains a speaker. See the following
figure.
Item Feature
A LCD display
B Scroll up button
C Scroll down button
D Back button
E Select button
F System ID LED (blue)
G System Power LED (green)
H System Power button
I System Status/Fault LED
(green/amber)
J, K LAN1, LAN2 Status LEDs
(green)
36
A
M L K J I H G F
Video display
Press to scroll up on the LCD
Press to scroll down on the LCD
Press to move to the previous LCD screen.
Press to enter a command or select an option on the LCD.
Helps identify the system via server management
Indicates system power status.
Off Power off
On Power on
Off S4 / S5
Blinking S1
On S0
Toggles system power
Indicates system status.
Off Not ready
Green, On Ready
Green, Blinking Degraded
Amber, On Critical Alarm
Amber, Blinking Non-critical
Alarm
Indicates LAN activity status.
Off Idle
Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
B
C
D
E
TP01506
Description
ACPI: No
ACPI: No
ACPI: Yes
ACPI: Yes
Yes
AC power off, POST error
System booted and ready
Processor or DIMM
disabled
Critical power supply,
blower, voltage, or
temperature failure
Redundant power supply or
blower failure.
Non-critical blower, voltage,
or temperature failure.
