Platform Description

Standard Control Panel

The standard control panel provides a user interface for system management via switches and status

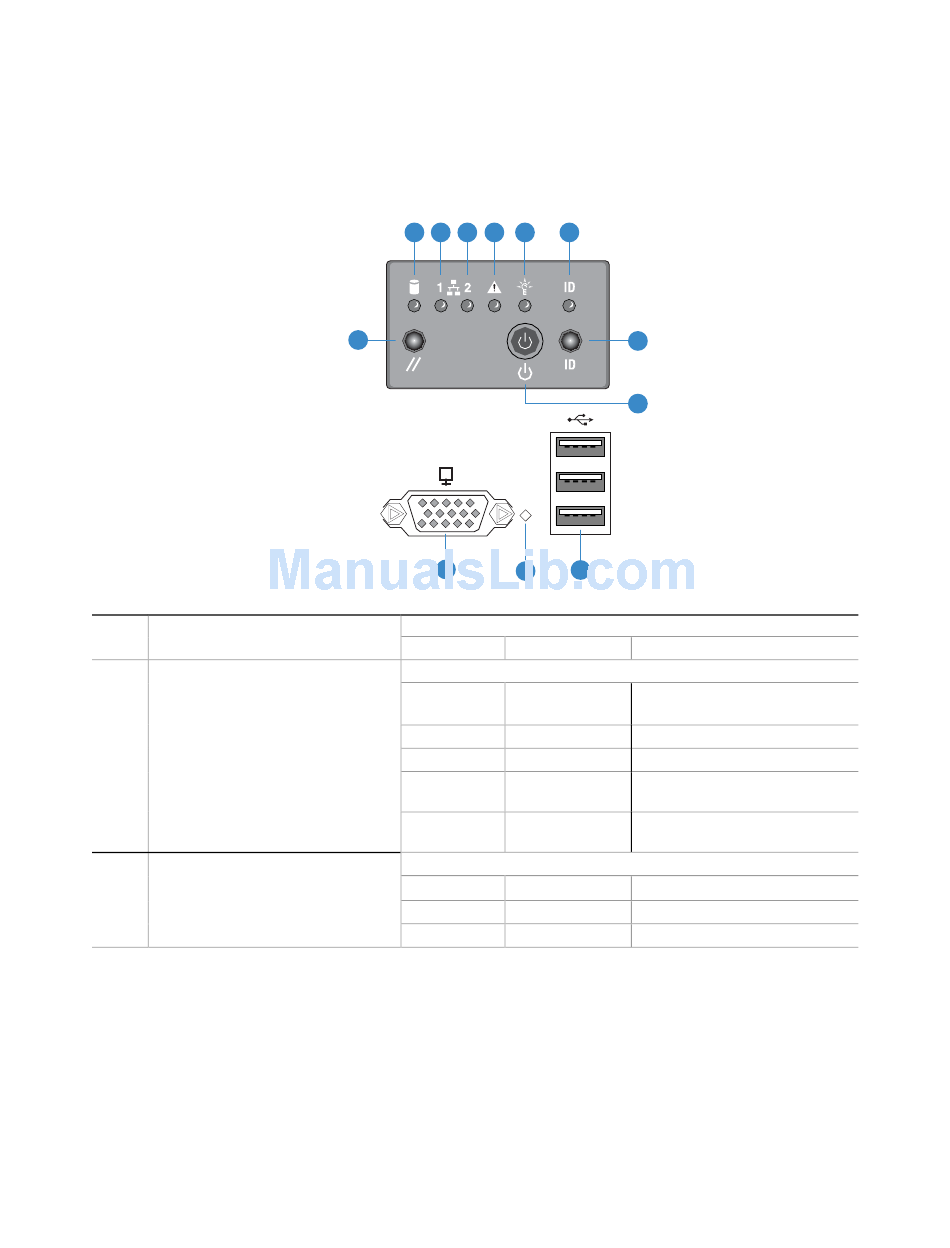

LEDs. The control panel also contains the speaker. The figure below shows the location of the
buttons and status LEDs on the standard control panel.
Item Feature
A Hard Drive Status LED
(green/amber)
B, C LAN1, LAN2 Status LEDs (green)
34
A B C D E
G
J
K
Description
LED State
Indicates hard drive activity and fault status.
Green On
Green Blinking
Amber On
Amber Slow Blinking
(~1 Hz)
Amber Fast Blinking
(~2.5 Hz)
Indicates LAN activity status.
Off Idle
On Inactive
Blinking Active
Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
F
I
H
L
TP01505
Activity
A hard drive is being
initialized.
A hard drive is active.
Hard drive/slot failure.
A predictive hard drive/slot
failure or rebuild in process.
Hard drive rebuild interrupted
or rebuild on empty slot.
No access
Access
