Platform Front; Figure 3. Front Accessible Components - Intel SR6850HW4 - Server Platform - 0 MB RAM Product Manual

Feature
Manageability
Front control panel

Platform Front

Item
A Video connector
B USB 2.0 ports
C Front control panel. Standard control panel shown.
D Hot-swap fan modules (six)
E 5 ¼ peripheral bays (two)
F CD-ROM / DVD-ROM drive bay
G Hot-swap drive bays (ten)
Description
Server Management support via Intel
Remote management
Emergency Management Port (EMP)
Intelligent Platform Management Interface (IPMI) 1.5 compliant,
partial IPMI 2.0 compliance
Wired For Management (WfM) 2.0 compliant
Remote diagnostics support
System power button and
LED
System reset button
NMI button
System ID button and LED
Optional LCD
A
B C
E F

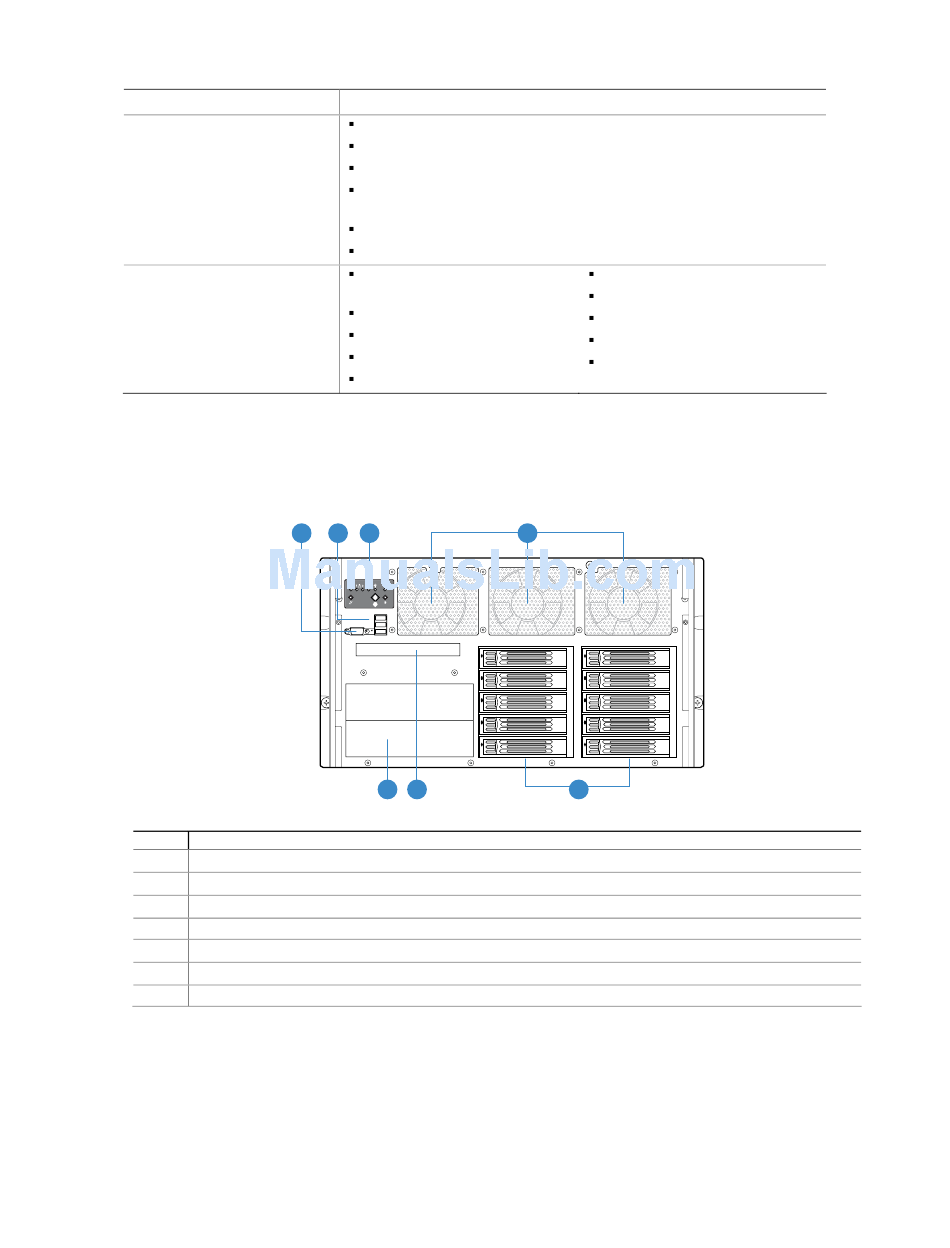

Figure 3. Front Accessible Components

®
Management Module
System status LED
Hard drive status LED
LAN1 and LAN2 status LEDs
Video connector
Three USB 2.0 ports
