Mounting a Hard Disk Drive in a Carrier

The server supports ten hot-swap drive carriers. Each carrier houses a standard one-inch high
hard drive (SCSI-2 or SCSI-3).
CAUTION
To allow proper airflow and server cooling, all drive bays must contain either
a carrier with a hard drive installed or a carrier with an air baffle installed.
To mount a hard drive in a carrier:
1. Observer the safety, ESD, and other precautions described in
2. Remove the hard disk drive from the protective wrapper and place it on a clean ESD-protected
work surface.
3. Record the model and serial number of the drive in your "Equipment", page 252.
4. Set any jumpers and/or switches on the drive according to the drive manufacturer's
instructions.
5. If the drive carrier is installed in the chassis, remove it and place it on a clean static-free work
surface. For instructions, see
6. Remove the four screws that hold the air baffle in place. See letter "A" in Figure 67.
7. Remove the air baffle from the carrier. See letter "B" in the figure.
8. Store the air baffle for future reinstallation.

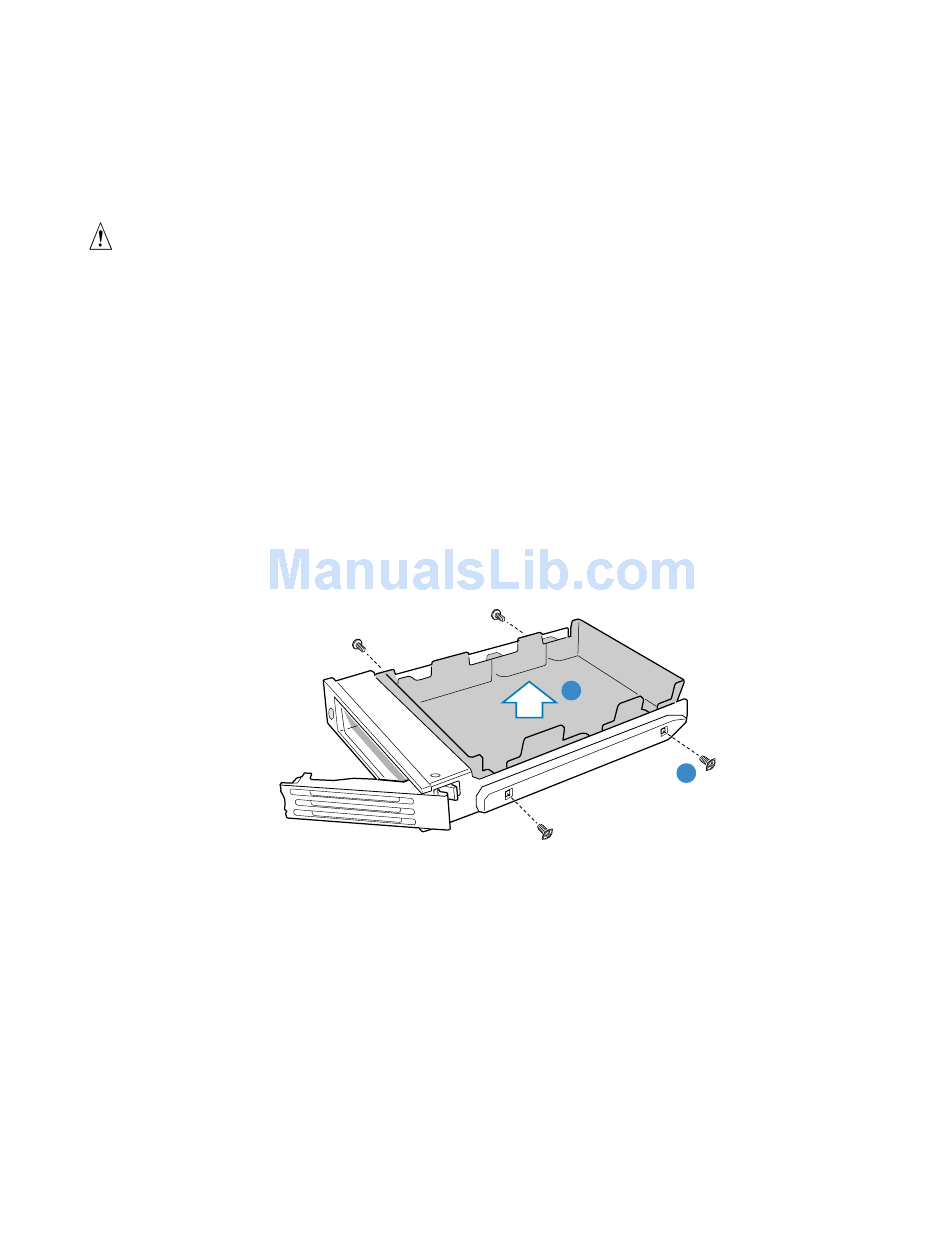

Figure 67. Removing the Air Baffle from the Hard Disk Drive Carrier

"Removing a Hard Disk
"Safety Information", page 5.
Drive", page 144.
B
A
TP01567
