Installing A Hard Disk Drive Assembly; Figure 68. Attaching The Hard Disk Drive To The Carrier; Figure 69. Installing Hard Disk Drive Into Server - Intel SR6850HW4 - Server Platform - 0 MB RAM Product Manual

User Serviceable Platform Components
9. Position the carrier as shown by Figure 68.
10. Position the drive in the carrier with the label-side up and the connector end of the drive facing
the back of the carrier.
11. Align the holes in the drive to the holes in the drive carrier slide track and insert the screws that
you were attached to the air baffle. See letter "B" in the figure.

Installing a Hard Disk Drive Assembly

1. Observer the safety, ESD, and other precautions described in
2. With the drive carrier handle fully open, slide the drive carrier all the way into the drive bay in
the chassis. See letter "A" in Figure 69.
3. Use the handle to push the carrier until it docks in the chassis, then close the drive carrier
handle. See letter "B" in the figure.
146
B

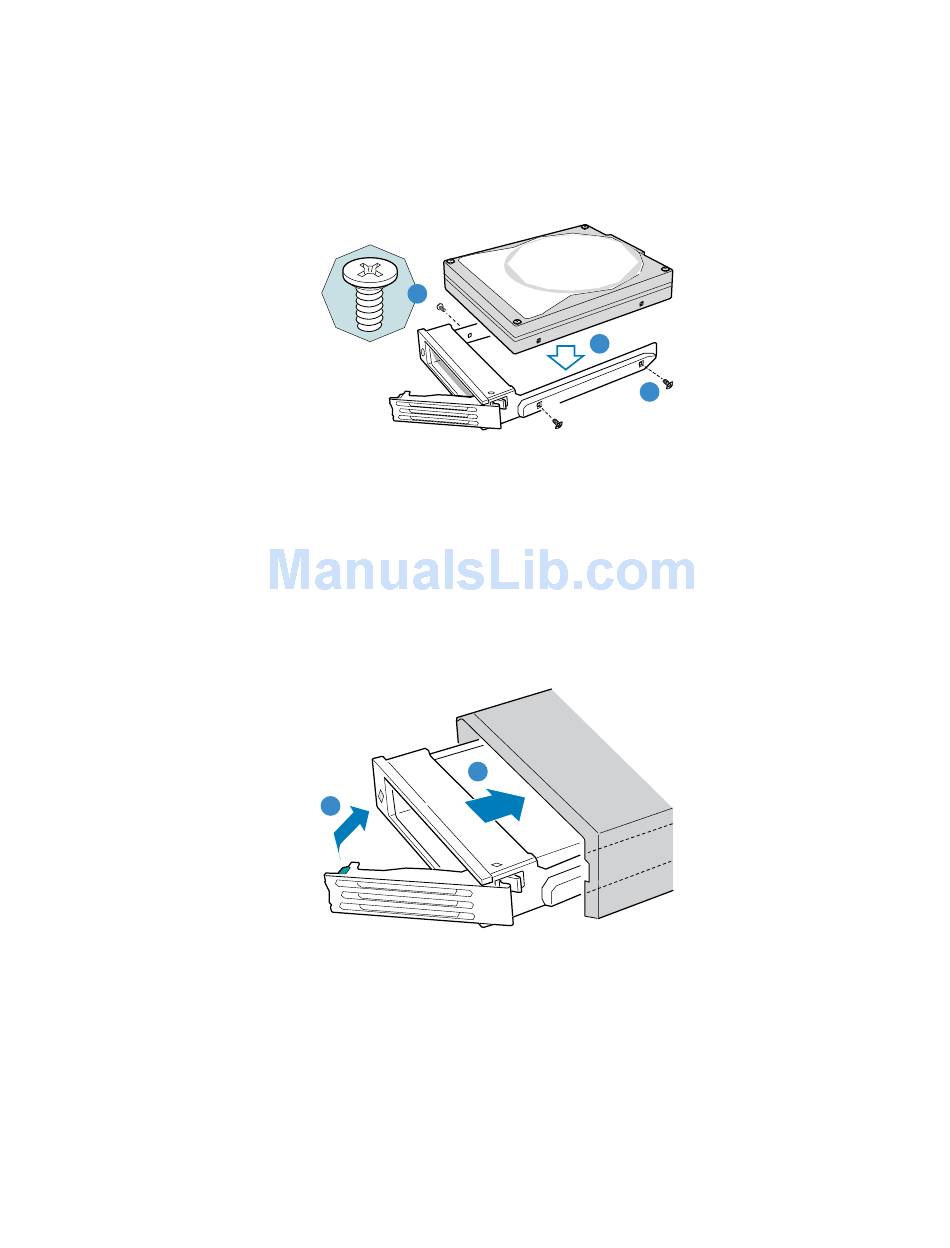

Figure 68. Attaching the Hard Disk Drive to the Carrier

B

Figure 69. Installing Hard Disk Drive into Server

Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
A
B
TP01568
"Safety
A
TP01569
Information", page 5.
