Installing The Processor Air Baffle; Figure 89. Installing The Processor Air Baffle - Intel SR6850HW4 - Server Platform - 0 MB RAM Product Manual

Installing the Processor Air Baffle

1. Set the processor air baffle in place near the front of the system. See letter "A" in Figure 89.
2. Push down at the rear of the air baffle to engage the rear two tabs. See the two letters "B" in the
figure.
3. Push down at the front of the air baffle to engage the front two tabs. See the two letters "C" in
the figure.
A
B
C
C

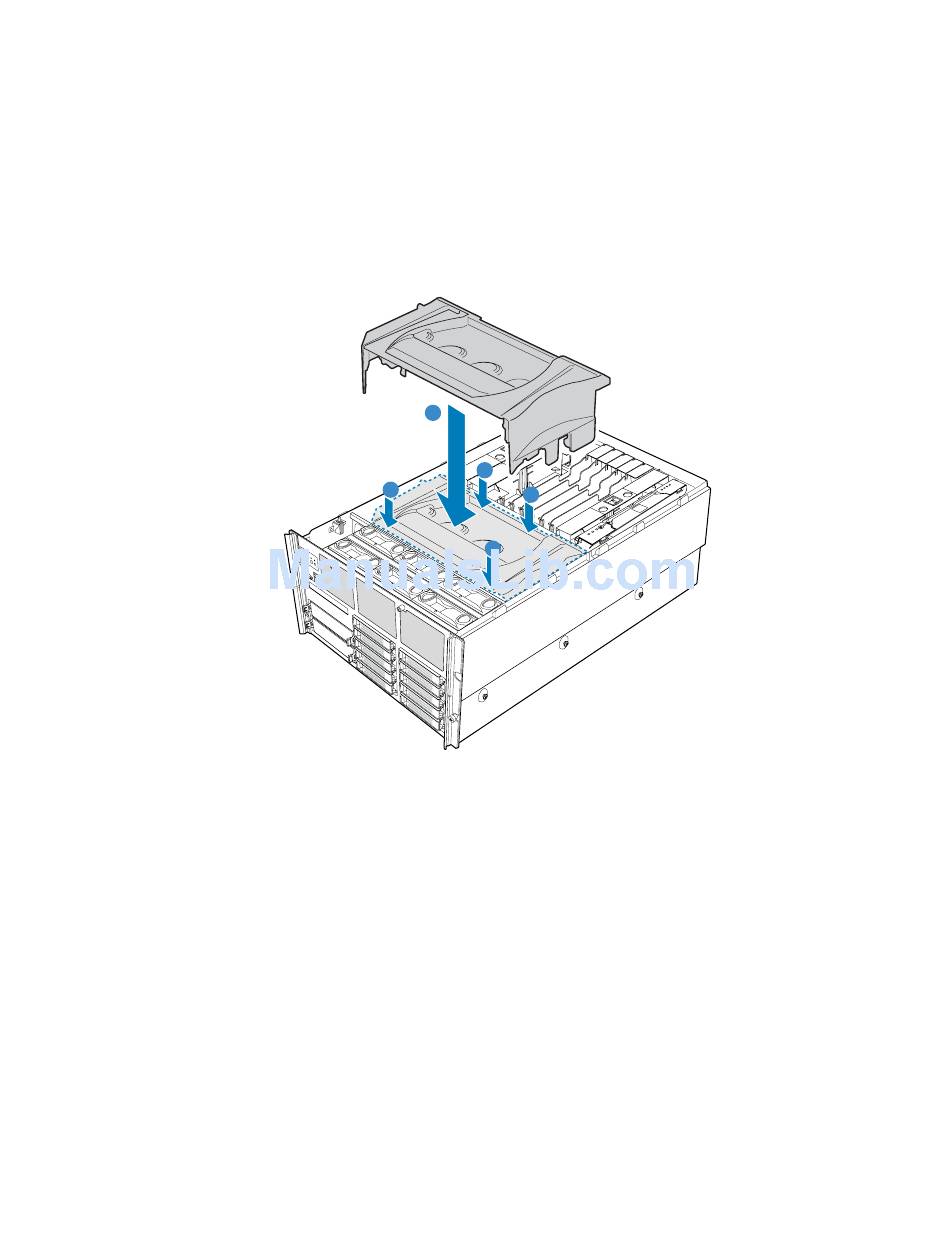

Figure 89. Installing the Processor Air Baffle

B
TP01559
