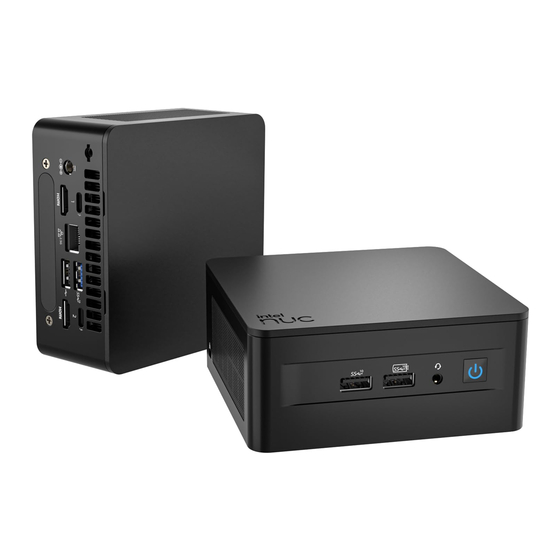

Intel® NUC 13 Pro Kit NUC13ANHv7
Intel® NUC 13 Pro Kit NUC13ANHi7
Intel® NUC 13 Pro Kit NUC13ANHv5
Intel® NUC 13 Pro Kit NUC13ANHi5
Intel® NUC 13 Pro Kit NUC13ANHi3
Intel® NUC 13 Pro Kit NUC13L3Hv7
Intel® NUC 13 Pro Kit NUC13L3Hi7
Intel® NUC 13 Pro Kit NUC13L3Hv5
Intel® NUC 13 Pro Kit NUC13L3Hi5
Intel® NUC 13 Pro Kit NUC13L3Hi3
User Guide
May 2023
NUC13ANH and NUC13LCH
User Guide – May 2023
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NUC 13 Pro Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intel NUC 13 Pro Kit

  • Page 1 Intel® NUC 13 Pro Kit NUC13ANHv7 Intel® NUC 13 Pro Kit NUC13ANHi7 Intel® NUC 13 Pro Kit NUC13ANHv5 Intel® NUC 13 Pro Kit NUC13ANHi5 Intel® NUC 13 Pro Kit NUC13ANHi3 Intel® NUC 13 Pro Kit NUC13L3Hv7 Intel® NUC 13 Pro Kit NUC13L3Hi7 Intel®...
  • Page 2 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
  • Page 3: Table Of Contents

    Contents Introduction ............................... 5 Before You Begin ............................5 Installation Precautions ..........................6 Observe Safety and Regulatory Requirements ................. 6 Open the Chassis ............................7 Install and Remove System Memory ....................8 Install SO-DIMMs............................8 Remove SO-DIMMs ............................9 Install an M.2 SSD ............................. 10 Install a 2.5-inch SSD or Hard Drive ....................
  • Page 4 Revision History Date Revision Description March 2023 Initial release. May 2023 Added NUC13LCH products. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 5: Introduction

    Introduction This User Guide provides step-by-step installation instructions for these products: • Intel® NUC 13 Pro Kit NUC13ANHv7 • Intel® NUC 13 Pro Kit NUC13ANHi7 • Intel® NUC 13 Pro Kit NUC13ANHv5 • Intel® NUC 13 Pro Kit NUC13ANHi5 •...
  • Page 6: Installation Precautions

    Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: • Sharp pins on connectors •...
  • Page 7: Open The Chassis

    Open the Chassis Unscrew the four corner screws on the bottom of the chassis and lift the cover. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 8: Install And Remove System Memory

    Install and Remove System Memory Intel® NUC 13 Pro Kit NUC13ANH has two 260-pin DDR4 SO-DIMM memory slots Memory requirements: • 1.2V low voltage memory • 2400/2666/3200 MHz SO-DIMMs • Non-ECC • Up to 64GB of system memory supported with 2 SO-DIMMs using 32GB memory modules Find compatible system memory modules at the Intel®...
  • Page 9: Remove So-Dimms

    3. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket. 4. Insert the bottom edge of the SO-DIMM into the socket. 5. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the retaining clips snap into place.
  • Page 10: Install An M.2 Ssd

    Intel® NUC 13 Pro Kit NUC13ANH contains • one 80mm connector supporting NVMe and • one 42mm connector supporting SATA SSD Find compatible M.2 SSDs at the Intel® Product Compatibility Tool: • Intel® NUC 13 Pro Kit NUC13ANHv7 • Intel® NUC 13 Pro Kit NUC13ANHi7 •...
  • Page 11 If you’re installing a 42mm M.2 SSD: 1. Remove the small silver screw from the metal standoff on the motherboard (A). 2. Move the standoff (B) from the 80mm position to the 42mm position (C). 3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
  • Page 12: Install A 2.5-Inch Ssd Or Hard Drive

    Install a 2.5-inch SSD or Hard Drive Intel® NUC 13 Pro Kit NUC13ANH supports an additional 2.5” SATA Solid State Drive (SSD) or Hard Disk Drive (HDD). Find compatible 2.5-inch SSDs at the Intel® Product Compatibility Tool: • Intel® NUC 13 Pro Kit NUC13ANHv7 •...
  • Page 13 2. Secure the drive into the drive bay with the two small silver screws that were included in the box. Set the drive bay bracket down inside the chassis. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 14: Close The Chassis

    Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 15: Use The Vesa Bracket (Optional)

    1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV. 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 16 3. Slide the Intel NUC onto the VESA mount bracket. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 17: Connect Power

    Connect Power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes Power cord type RNUC13ANHV70000 No power cord included. An AC power cord RNUC13ANHI70000 needs to be purchased separately. Power cords...
  • Page 18 RNUC13L3HV50002 RNUC13L3HI50002 RNUC13L3HI30002 RNUC13ANHV70003 UK power cord included. RNUC13ANHI70003 RNUC13ANHV50003 RNUC13ANHI50003 RNUC13ANHI30003 RNUC13L3HV70003 RNUC13L3HI70003 RNUC13L3HV50003 RNUC13L3HI50003 RNUC13L3HI30003 RNUC13ANHI70006 China power cord included. RNUC13ANHI50006 RNUC13ANHI30006 NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 19: Install An Operating System

    Install an Operating System Supported Operating Systems for a list of Intel-validated operating systems. Refer to Operating System Installation for system requirements and installation steps. NUC13ANH and NUC13LCH User Guide – May 2023...
  • Page 20: Install The Latest Device Drivers And Software

    Here are the options for keeping device drivers current: • Allow the to detect out-of- Intel® Driver & Support Assistant (Intel® DSA) date drivers • Manually download drivers, BIOS, and software from Download Center: Intel® NUC 13 Pro Kit NUC13ANHv7 Intel®...
