Hard Disk Drive Support

NOTE
Because hard disk drives have different cooling, power and vibration
characteristics, Intel validates specific hard disk drive types in the Intel
Server Platform SR6850HW4. See the Intel
Tested Hardware and Operating System List for a list of the supported
drives.
Hot-Swap Hard Disk Drive Bay
The hot-swap hard disk drive carrier is designed to accommodate 15,000-RPM (and slower)
Ultra320* SCSI technology SCA-type hard disk drives.
The SCSI backplane supports Low Voltage Differential (LVD) SCSI disk drives only. Single-
Ended (SE) SCSI devices are not supported internally. SE drives are only supported on the external
SCSI connector.
Item Description
A Latch
B Dual-color activity LED:
A
B
Green flashing: Indicates hard drive is active.
Amber and green alternating flashing: Indicates hard drive is powered on
and is rebuilding RAID, or it is powered on and has a fault condition.
Amber flashing: Indicates hard drive is not powered on and has a fault
condition.
Unlit: Indicates no hard drive is installed in that location or a drive is
installed, but no drive activity is taking place.

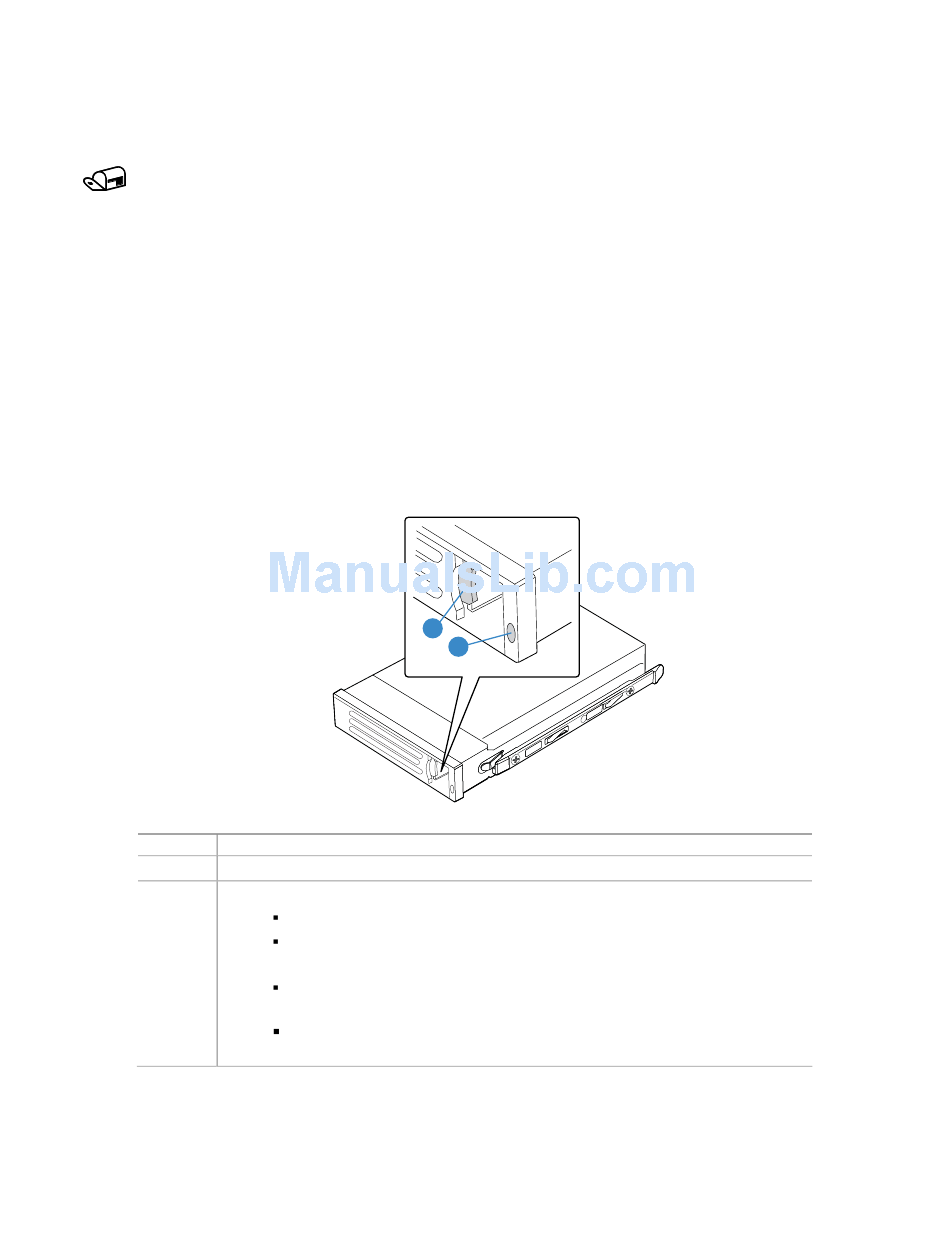

Figure 10. Hard Disk Drive Carrier

®
Server Platform SR6850HW4
TP01510
®
