described in this chapter, all servicing must be done by a qualified
service technician.

Removing the Top Cover

To remove the top cover, follow these instructions:
1. Observe the safety precautions, warnings, and cautions described in
5.
2. If the chassis is rack-mounted, slide the chassis out far enough to expose the entire top cover.
3. Unscrew the two captive screws on the faceplate of the chassis.
4. Slide the top cover toward the back of the chassis until the tabs on the cover disengage with the
slots in the chassis.
5. Lift the cover to remove it.
A
B

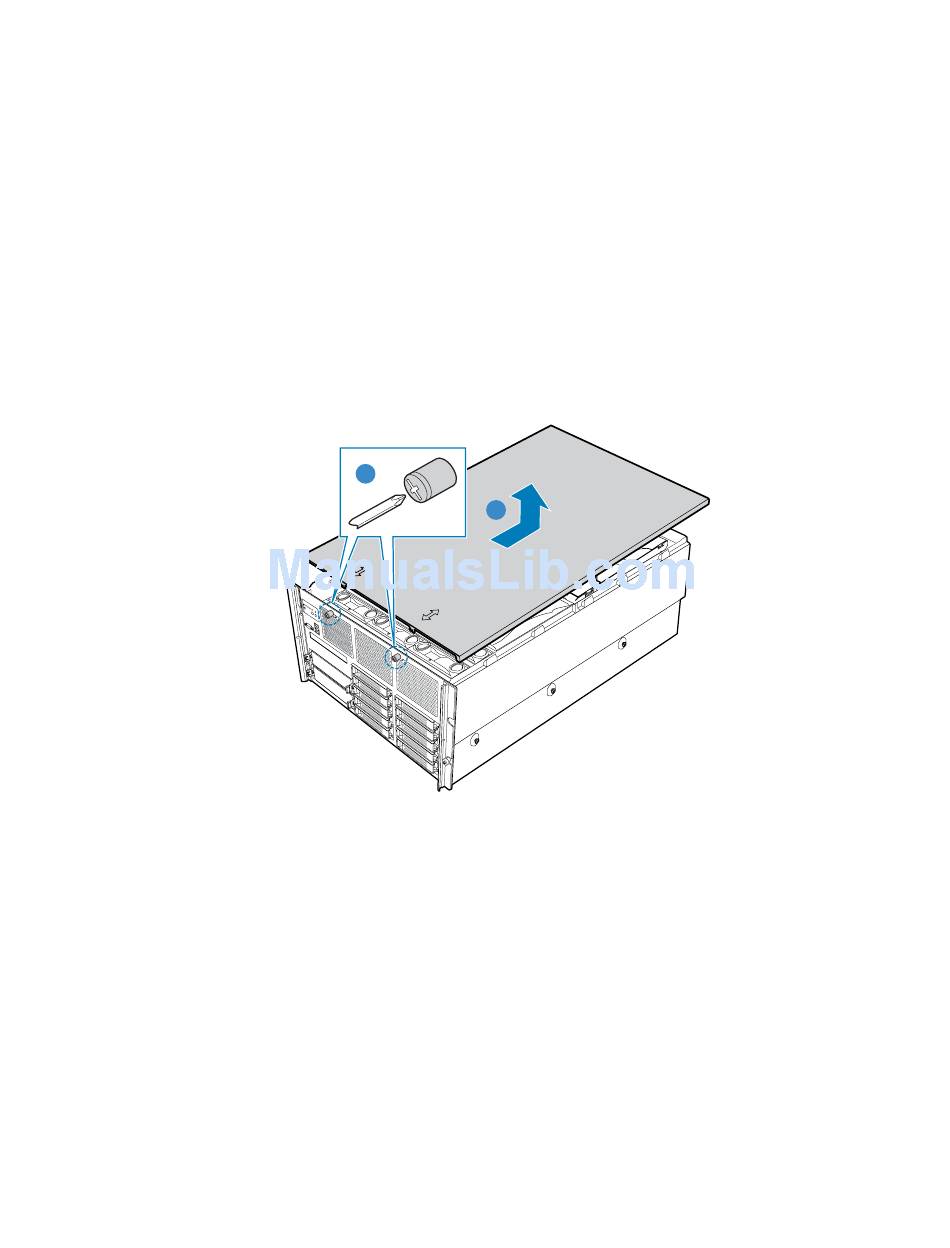

Figure 61. Removing the Top Cover

"Safety Information", page
TP01513
139
