Figure 118. Removing The Scsi Backplane Board - Intel SR6850HW4 - Server Platform - 0 MB RAM Product Manual

11. Pull out on the plunger that secures the SCSI backplane board to the chassis. See letter "A" in
Figure 118.
12. Pull the SCSI backplane board upward slightly to disengage the tabs. See letter "B" in the
figure.
13. Tilt the SCSI backplane board towards the rear of the server and lift it from the system. See
letters "C" and "D" in the figure.
A
B

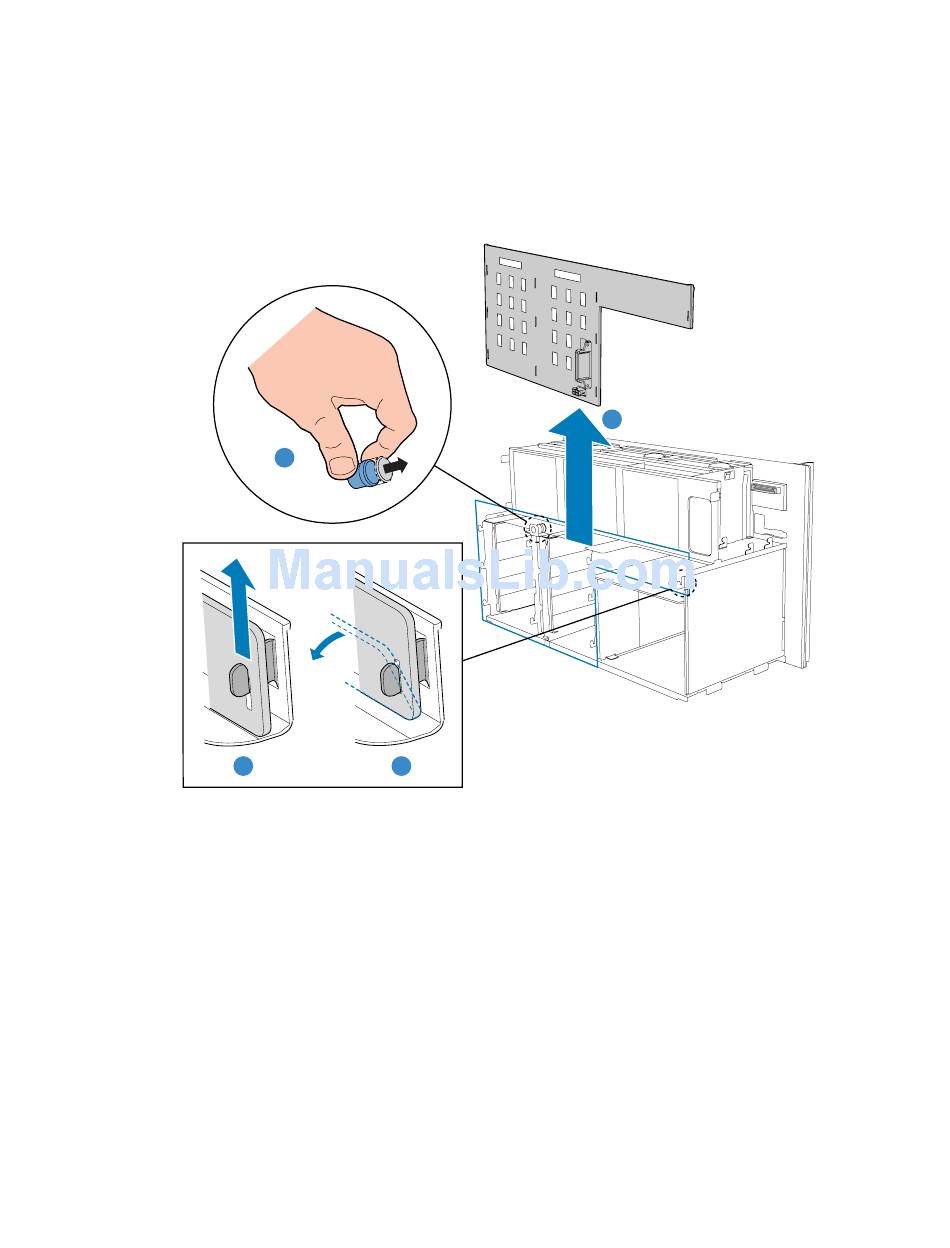

Figure 118. Removing the SCSI Backplane Board

14. Store the SCSI backplane board in an anti-static bag.
15. Install the replacement SCSI backplane board or replace the power distribution board if
necessary. For instructions, see
216 and 217, respectively.
C
"Installing the SCSI Backplane
D
TP01570
Board" and "Board" on pages
215
