Server Platform Utilities
The SCW does not perform the following functions:
Install and / or update the BIOS.
Install and / or update the firmware.
The SCW and Intel® Server Management (ISM) can each be used to configure the firmware on the
server, but these items only need to be configured once. If you are installing the Intel® Server
Management software on this server, you do not need to use the SCW to configure LAN channel 1,
the serial channel, or users. The Intel® Server Management software will allow you to configure
these items later, from the operating system. The SCW will ask you if you are using Intel® Server
Management software and not prompt you to configure these items if you are using Intel® Server
Management.
On some screens in the SCW application, you can choose multiple entries. These selection options
have square check-boxes, not round radio selection buttons. When multiple selections are
permitted, the SCW will configure each item you select.
Some options require other options to be selected. In these cases, the SCW automatically selects the
options required for the options that you selected. The reverse is also true. If an option is
unchecked, then all options dependent on that option are automatically unchecked.

Starting the System Configuration Wizard

To run the SCW, boot your server from the Intel
Deployment Toolkit CD. The Start screen provides a brief description of the Server Configuration
Wizard.
82

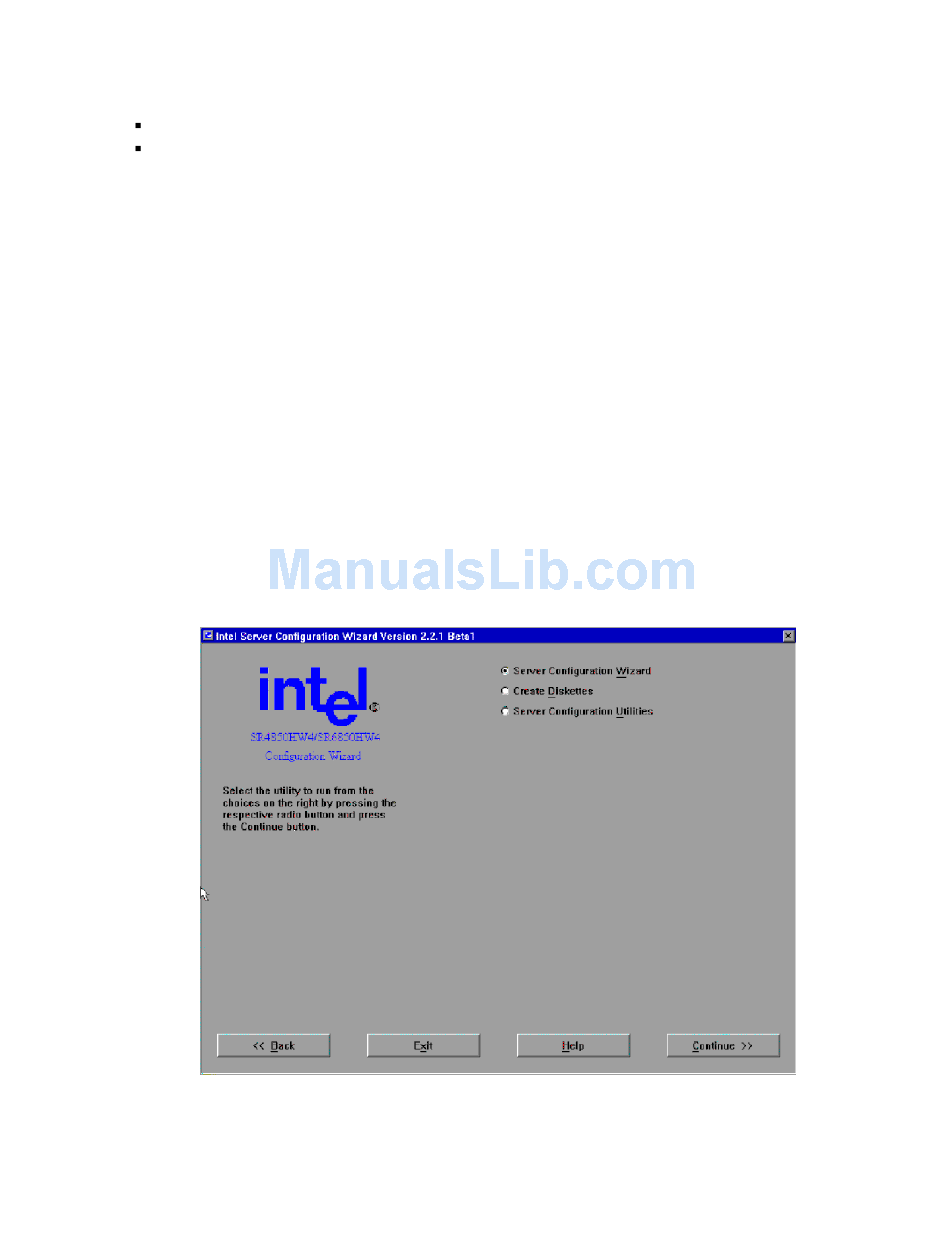

Figure 24. System Configuration Wizard Start Screen

Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
®
