Server Platform Utilities
FRU Viewer Utility Pull-Down Menu
The FRU Viewer Utility main window provides a pull-down menu that is used to select functions.
Use the <F10> key to move between the display window and the pull-down menu area. From the
menu area, use the arrow keys to move between the menu items, and use <Enter> to select a menu
item. A brief help message about the option selected from the menu is displayed at the bottom of
the SEL Viewer Utility main window. The pull-down menu provides the options outlined below.
File: The File pull-down menu includes menu items for opening and saving data files. These
options are further described in the sections below.
-
Open: Under the File pull-down menu, Open allows you to load a previously saved FRU file.
Upon selecting this option, all currently loaded FRUs are removed from the screen and the
FRU loaded from file is displayed.
If the file selected is not a valid FRU file, the following message is displayed: "Invalid FRU
file". If there is an error while reading the FRU from the file, the following message is
displayed: "Error reading FRU from file".
Opening a FRU file does not affect the FRU properties. The options for Save As... and the
System FRUs are disabled when FRU data is loaded from a file.
The Open dialog box gives you the ability to browse drives and directories for existing files
as shown by Figure 55. The File Name edit box supports full editing capabilities with the
following keys: <Home>, <End>, Left/Right arrows and <Ins>. The <Ins> key toggles insert
and overwrite editing while in the edit box and this is noted with "INS" or "OVR", displayed
in the lower-right corner of the dialog box.
128

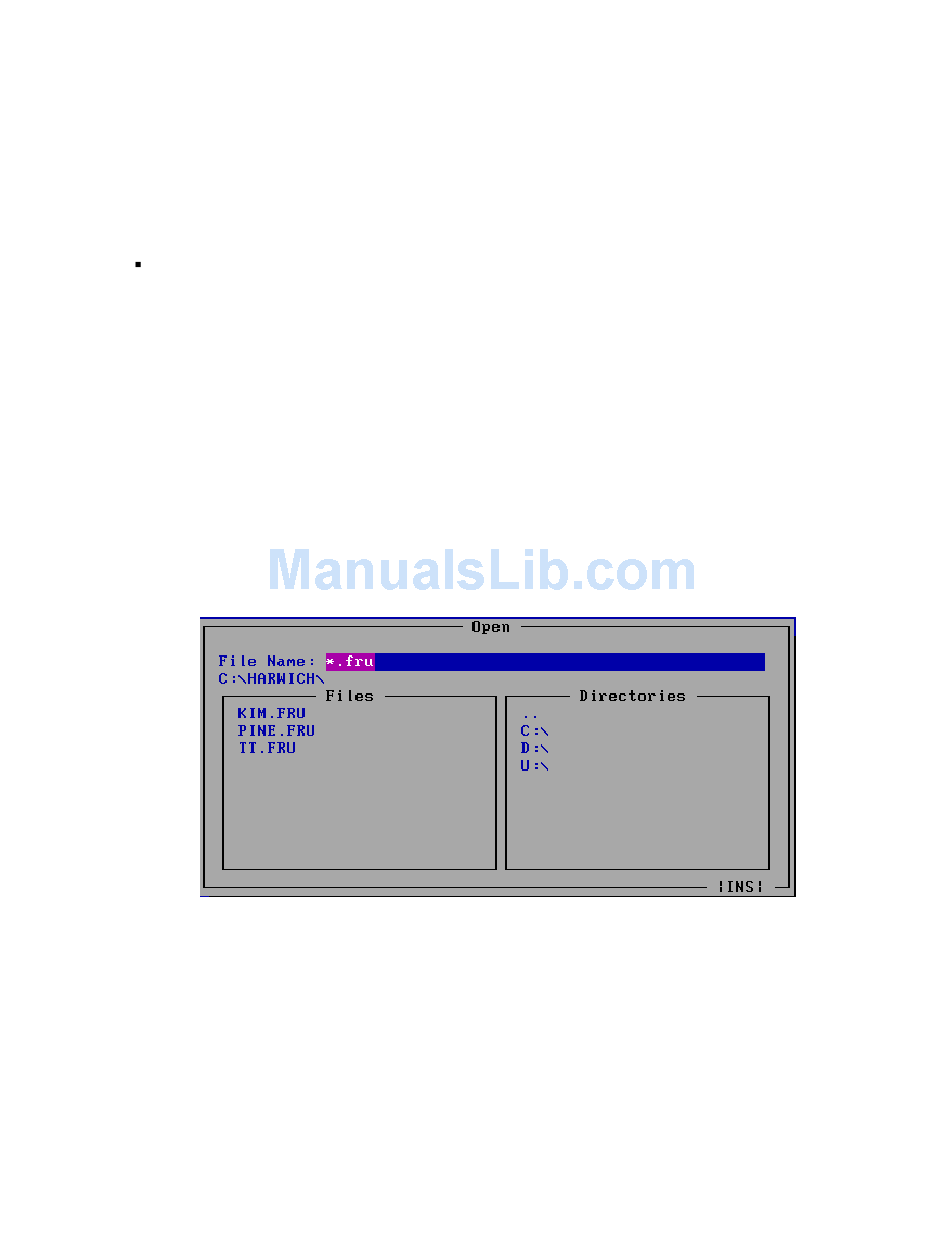

Figure 55. File Open Dialog Box
Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
