Servicing the RAID on Motherboard Components

Installing and Removing the RAID DDR2-400 DIMM

Installing the RAID DDR2-400 DIMM

1. Observe the safety precautions, warnings, and cautions described in
5.
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see "Removing the Top Cover", page 144.
5. Remove the memory board or the memory board air baffle from Slot C. For instructions, see
"Cold Removal of Memory
6. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the open
position.
7. Holding the DIMM by the edges, remove it from its anti-static package.
8. Position the DIMM above the socket. Align the notch on the bottom edge of the DIMM with
the key in the DIMM socket.
9. Insert the bottom edge of the DIMM into the socket.
10. When the DIMM is inserted, push down on the top edge of the DIMM until the retaining clips
snap into place. Make sure the clips are firmly in place. See Figure 104.
NOTE
Letter "C" in Figure 104 shows the installation of the RAID Activation Key.
®
The Intel RAID Activation Key is also required to activate ROMB. For
instructions on installing the Intel
Intel® RAID Activation
196
Board", page 165.
®
RAID Activation Key, see
Key".
A
B

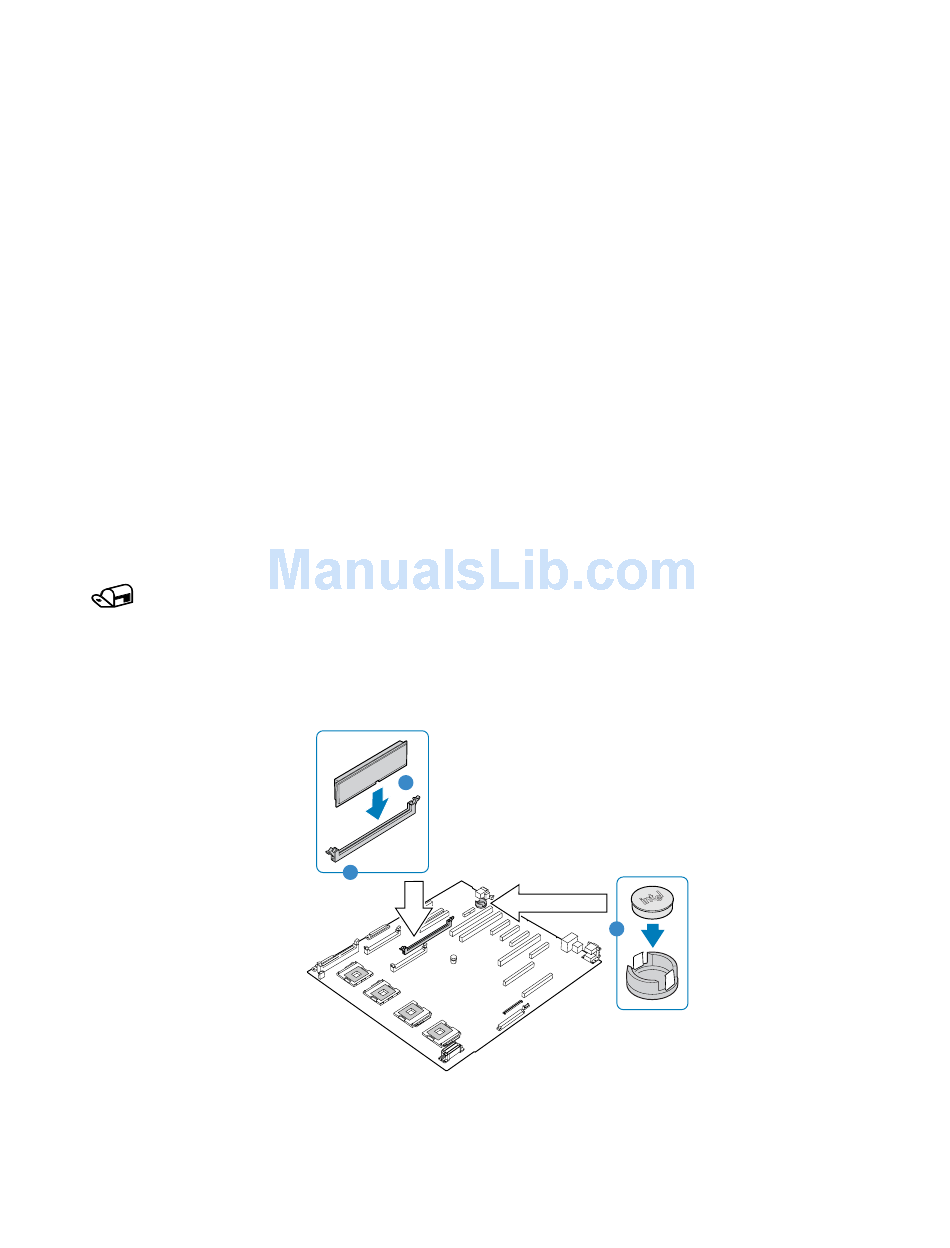

Figure 104. Installing the RAID DDR2-400 DIMM

Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
"Safety Information", page
"Installing the
C
TP01543
