Servicing the RAID on Peripheral Area Components
12. Slide the 5 ¼ peripheral device into the server until it clicks into place. See Figure 111.
13. Re-install the top cover.
Removing a 5 ¼-inch Peripheral
1. Observe the safety precautions, warnings, and cautions described in
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see "Removing the Top Cover", page 144.
5. Push the tabs at each side of the carrier filler panel. See letter "A" in Figure 110.
6. Hold the tabs in while pulling the carrier filler panel from the bay. See letter "B" in Figure 110.
7. Disconnect the power cable at the rear of the device.
8. Unscrew the slide rails from the 5 ¼ peripheral.
9. Install the slide rails on the replacement device or install them on the 5 ¼ filler panel that came
with your server.
10. If installing a replacement device, attach the Y-power cable to the device.
11. Slide the device or filler panel into the 5 ¼ bay until it clicks into place. See Figure 111.
12. Re-install the top cover. For instructions, see
204

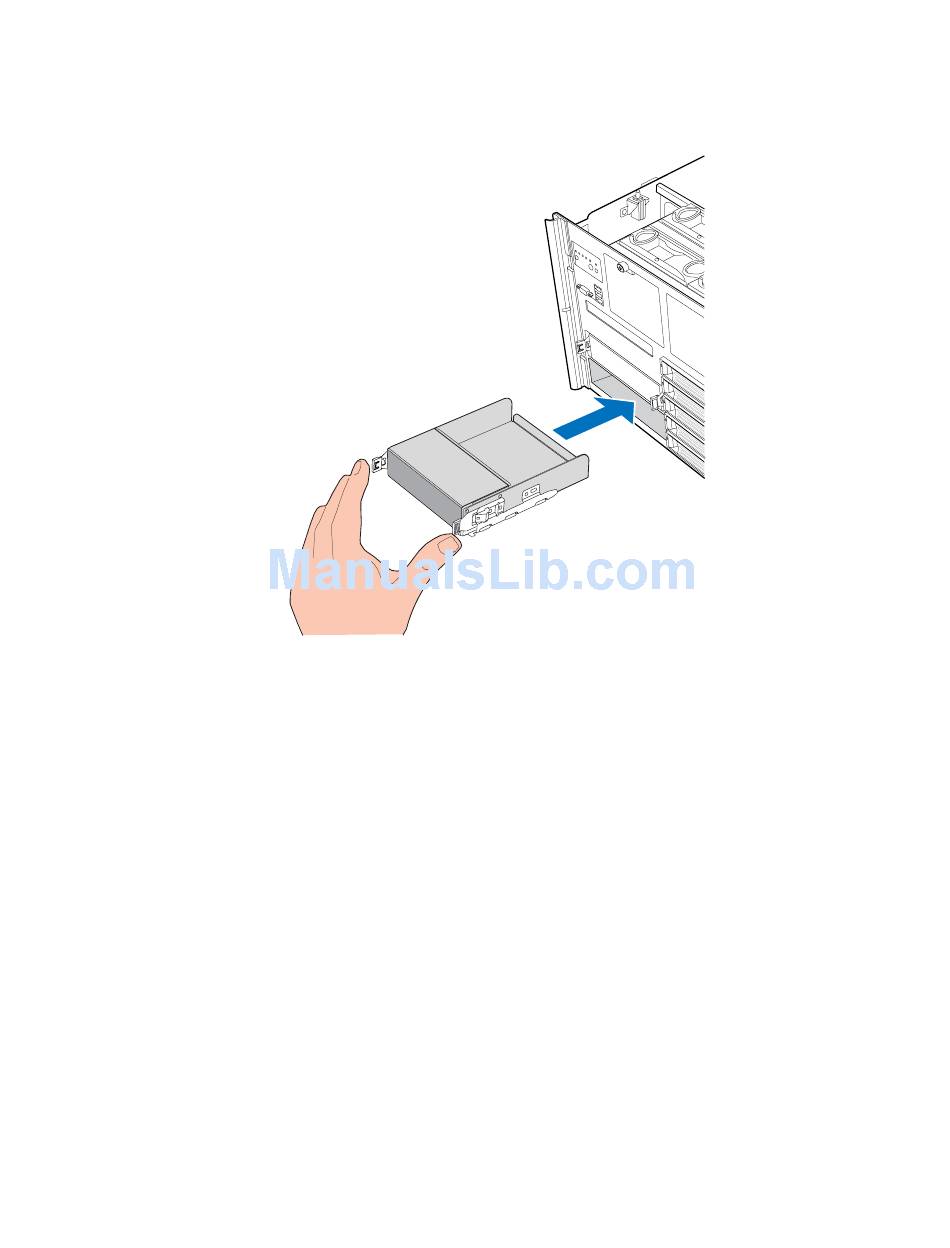

Figure 111. Installing 5 ¼ Peripheral into Server
Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
TP01553
"Safety
"Installing the Top
Cover", page 140.
Information".
