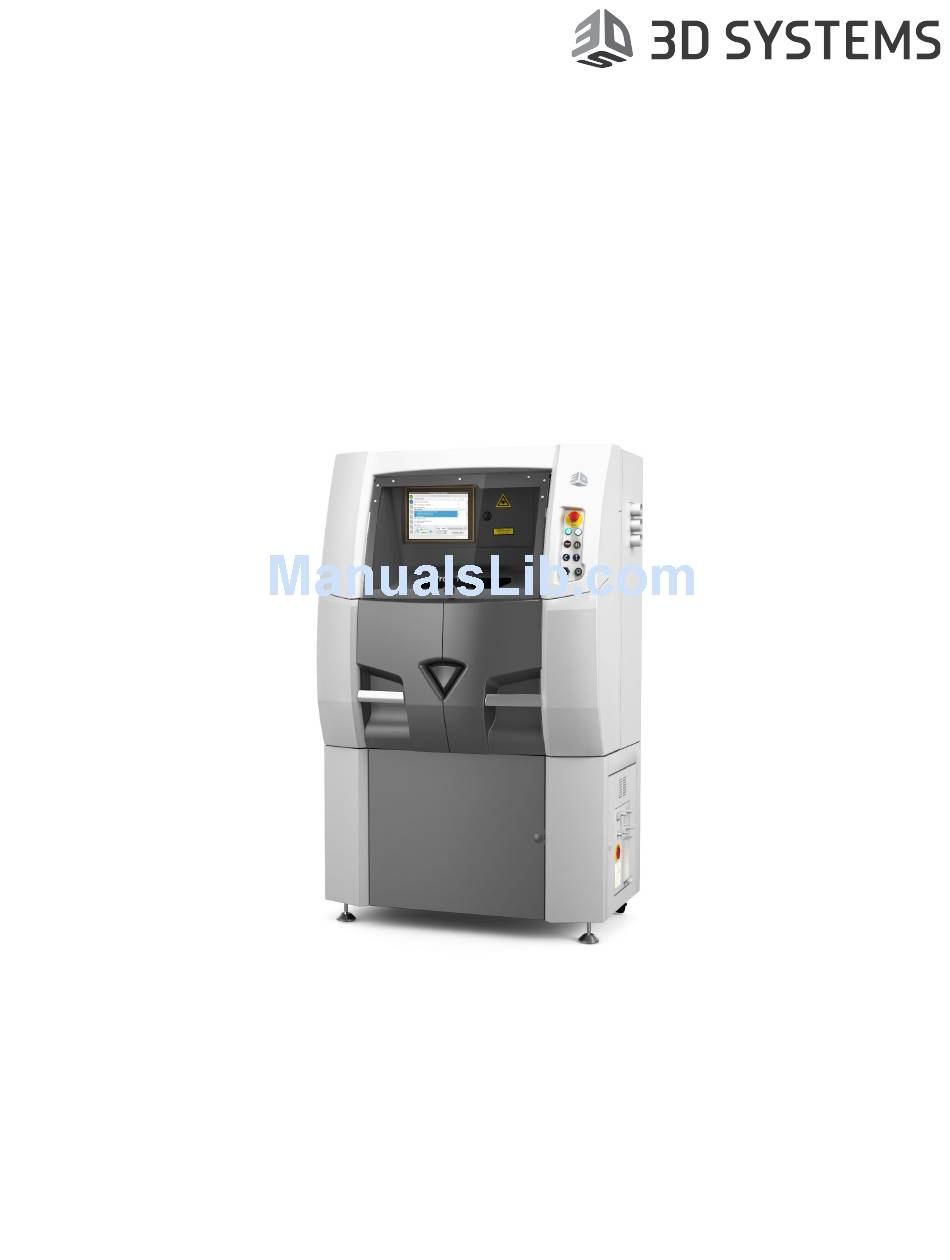

ProX
DMP100
®
3D Production Printer
Facility Requirements Guide
Original Instructions
Please refer back to http://infocenter.3dsystems.com/product-library/prox-100#facility-guide
for the most up-to-date facility requirements guide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProX DMP100 and is the answer not in the manual?

Questions and answers

Related Manuals for 3D Systems ProX DMP100

Summary of Contents for 3D Systems ProX DMP100

  • Page 1 ProX DMP100 ® 3D Production Printer Facility Requirements Guide Original Instructions Please refer back to http://infocenter.3dsystems.com/product-library/prox-100#facility-guide for the most up-to-date facility requirements guide.

  • Page 2: Table Of Contents

    DMP100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ® 3D SYSTEMS, INC.
  • Page 3 FACILITY REQUIREMENTS POSTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3D SYSTEMS, INC.

  • Page 4: Preparing For Installation

    As you satisfy the requirements for each section in this guide, you need to complete the “Facility Requirements Checklist - ProX® DMP100” on page 15. You must complete this checklist and send it to 3D Systems when you’re ready to have your equipment installed.

  • Page 5: Equipment And Packaging

    EQUIPMENT AND PACKAGING THE PROX DMP100 SYSTEM This section lists all of the equipment that is provided as a part of the ProX DMP100. ® • Main cabinet (including process chamber, control software) • Process filter with cart CRATED WEIGHTS AND DIMENSIONS Main cabinet •...

  • Page 6: Main Cabinet

    • Nominal Current : 21 .74A • 1 phase + neutre + PE electrical cable (2 .5mm² section) . Supplied by 3D Systems • Connection on the bottom right of the printer Gas: Argon is recommended and is required for all reactive materials such as Titanium and Aluminum . Nitrogen can be used for non-reactive material such as Steel •...

  • Page 7: Process Filter (With Cart)

    The filter is connected to the main cabinet by flexible hoses. The hoses for installation ship with the ProX DMP100 system. The ® hoses supplied by 3D Systems must be used to connect the process filter. Argon Gas - N/A Compressed Air The valves on the filter are controlled by the ProX DMP100.

  • Page 8: Customer Supplied Equipment

    Installed by: 3D Systems For safety when working with argon, you must install a room area oxygen monitor on the wall of your ProX DMP100 room. The oxygen monitor should be installed approximately 60 cm (24 inches) above the floor.

  • Page 9: Storage Requirements

    The printer must be stored in their original packaging, in a stable position, protected from impact and in a dry location. ROOM REQUIREMENTS WORKSPACE SPECIFICATIONS FOR THE PROX DMP100 ® ProX DMP100 installation requires a location with the following minimum dimensions (including maintenance access). ® Process filter 3D SYSTEMS, INC.

  • Page 10: Floor Specifications

    These materials will react with water to produce hydrogen which will create an explosion hazard. *** Some metal powders are very reactive to Oxygen, Water, or other elements. Refer to the material SDS and all local regulation for proper handling, storage, and disposal. 3D SYSTEMS, INC.

  • Page 11: Atmosphere Requirements

    The facility must have a separate system for removing the air from the room. The system must remove the room air directly to the outside. For the exhaust system, 3D Systems recommends the use of TEFC (Totally Enclosed Fan-Cooled) motors for this application.

  • Page 12: Electrical Requirements

    Use one pack of twelve cylinders connected with an auto-switching manifold. • A high volume flow pressure reducer must be used for the cylinders. This allows the chamber to fill quicker. • Use two particle filters immediately after the reducer. One 5μm filter and one 0.01μm filter. 3D SYSTEMS, INC.

  • Page 13: Compressed Air Requirements

    Prior to installing the software, ensure that workstation meets the following minimum specifications (next page). The specifications described represent 3D Systems tested minimum “baseline” configuration for using the software. Although the software will run on less powerful computers, meeting the minimum recommended configuration will ensure acceptable performance.

  • Page 14: Client Workstation Requirements For Prox Dmp Dental Software

    TCP/IP protocol. Screen resolution 1280 X 960 1600 X 900 or higher. Microsoft .NET Framework 4 .0 . Internet Explorer 9 or higher must be installed . Other Keyboard . 3 button mouse with scroll . 3D SYSTEMS, INC.

  • Page 15: Lifting Equipment

    Standard moving and handling tools may be required (pallet truck, cargo trolley...). • Staff insured and authorized to use the lifting equipment is necessary. 3D Systems-certified Customer Support Engineer are not qualified to use such equipment. The equipment is delivered with steel beams (I profile), that must be removed during installation. The main cabinet will stand on adjustable feet.

  • Page 16: Waste Disposal

    With the sprinkler system disabled, local building codes may require the installation of an inert gas system for fire suppression. Filters cannot be used in the ventilation system for the room. Fine metal particles will collect in the filter and become a source of auto-igniting fires. 3D SYSTEMS, INC.

  • Page 17: Facility Requirements Checklist

    When the representative is confident that all facility requirements are met, he or she will schedule a trip to your site to install the ProX® DMP100 and any additional equipment which was ordered. NOTE: All facility requirements must be met before 3D Systems can schedule a trip to your facility to install the equipment .

  • Page 18: Facility Requirements Checklist - Prox ® Dmp100

    Waste Disposal System Established (Must comply with all applicable regulations) Fire Suppression Equipment Available Comments Signature 3D SYSTEMS RESERVES THE RIGHT TO RECEIVE COMPENSATION FOR NONPRODUCTIVE TIME AND TRAVEL DUE TO FALSE OR INCORRECT INFORMATION ON THIS FORM . SECTION FILLED BY 3DSYSTEMS # Sales Order (S.O.) # Serial Number of the printer 3D SYSTEMS, INC.

  • Page 19: Contact Information

    UK and EMEA: (+44) 1442 279883 Germany: (+49) 6151 357-0 email: moreinfo@3dsystems.com Europe: (+33) 4.73.33.45.85 Hong Kong: (+852) 29 23 50 77 www .3dsystems .com Switzerland: (+41) 26 439 95 90 NYSE: DDD UK: (+44) 1442 282 600 3D SYSTEMS, INC.
  • Page 20 • customer supplied/installed Room oxygen monitor • recommended • customer supplied/installed • safety interlock contact rating: 10 A Compressed Air ProX DMP100 Compressed air ProX DMP100 Connection Type Quick coupler plug, internal diameter 6mm Connection Type Quick coupler plug, internal diameter 6mm Manufacturing : 5 - 10 L/min (0.17 - 0.35 cubic feet per minute)
  • Page 21 3D Systems, Inc . 333 Three D Systems Circle | Rock Hill, SC 29730 | USA www.3dsystems.com ©2017 3D Systems, Inc. All rights reserved. PN: 80-D47 Rev B 3D SYSTEMS, INC.
