Port-Based Multicast VLAN Configuration

Network requirements
As shown in
2/0/1, and to Switch A through GigabitEthernet 2/0/2.
IGMPv2 is required on Router A. IGMPv2 Snooping is required on Switch A. Router A acts as the
IGMP querier.
Switch A's GigabitEthernet 2/0/1 belongs to VLAN 10, GigabitEthernet 2/0/2 through
GigabitEthernet 2/0/4 belong to VLAN 2 through VLAN 4 respectively, and Host A through Host C
are attached to GigabitEthernet 2/0/2 through GigabitEthernet2/0/4 of Switch A respectively.
The multicast source sends multicast data to multicast group 224.1.1.1. Host A, Host B, and Host C
are receivers of the multicast group.
Configure the port-based multicast VLAN feature so that Router A just sends multicast data to
Switch A through the multicast VLAN and Switch A forwards the multicast data to the receivers that
belong to different user VLANs.

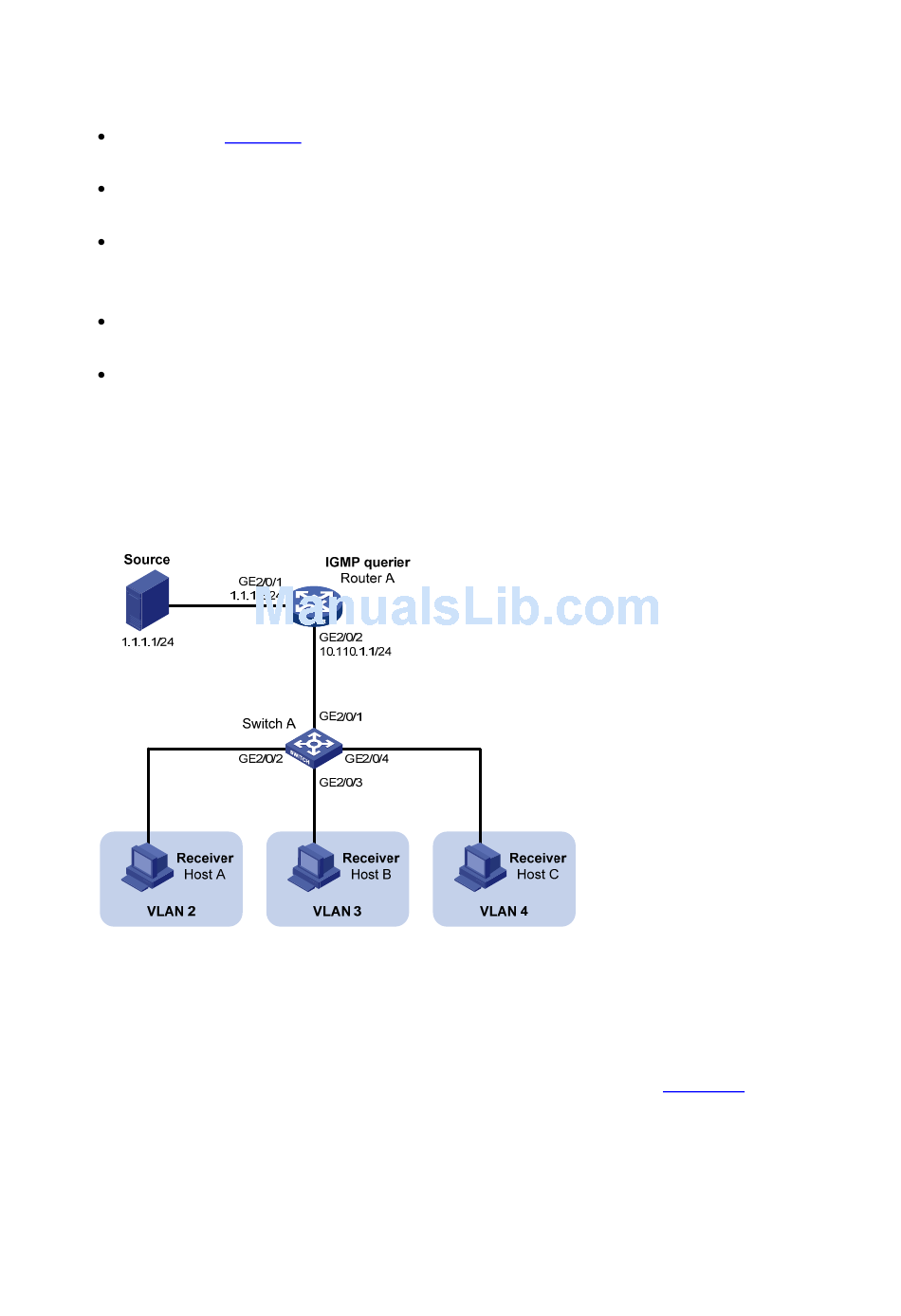

Network diagram
Figure 1-5 Network diagram for port-based multicast VLAN configuration
Configuration procedure
1) Configure IP addresses
Configure the IP address and subnet mask for each interface as per
configuration steps are omitted here.
2) Configure Router A
# Enable IP multicast routing, enable PIM-DM on each interface, and enable IGMP on the host-side
interface GigabitEthernet 2/0/2.
<RouterA> system-view
[RouterA] multicast routing-enable
Figure 1-5, Router A connects to a multicast source (Source) through GigabitEthernet
1-11
Figure 1-5. The detailed
