MCE Configuration Example

MCE Configuration Example (A)
Network requirements
An MCE device connects to VPN1 (with the address range being 192.168.0.0/16) through
VLAN-interface 10 (with the IP address being 10.214.10.3) and connects to VPN2 (with the
address range being 192.168.10.0/24) through VLAN-interface 20 (with the IP address being
10.214.20.3). VPN2 has RIP enabled.
The MCE device connects to the PE through VLAN-interface 30 and VLAN-interface 40, whose IP
addresses are 192.168.30.1/30 and 192.168.40.1/30, respectively.
It is required that the MCE device isolates routes of VPN1 from those of VPN2 and advertises all
the VPN routes to the PE device using OSPF.
Network diagram

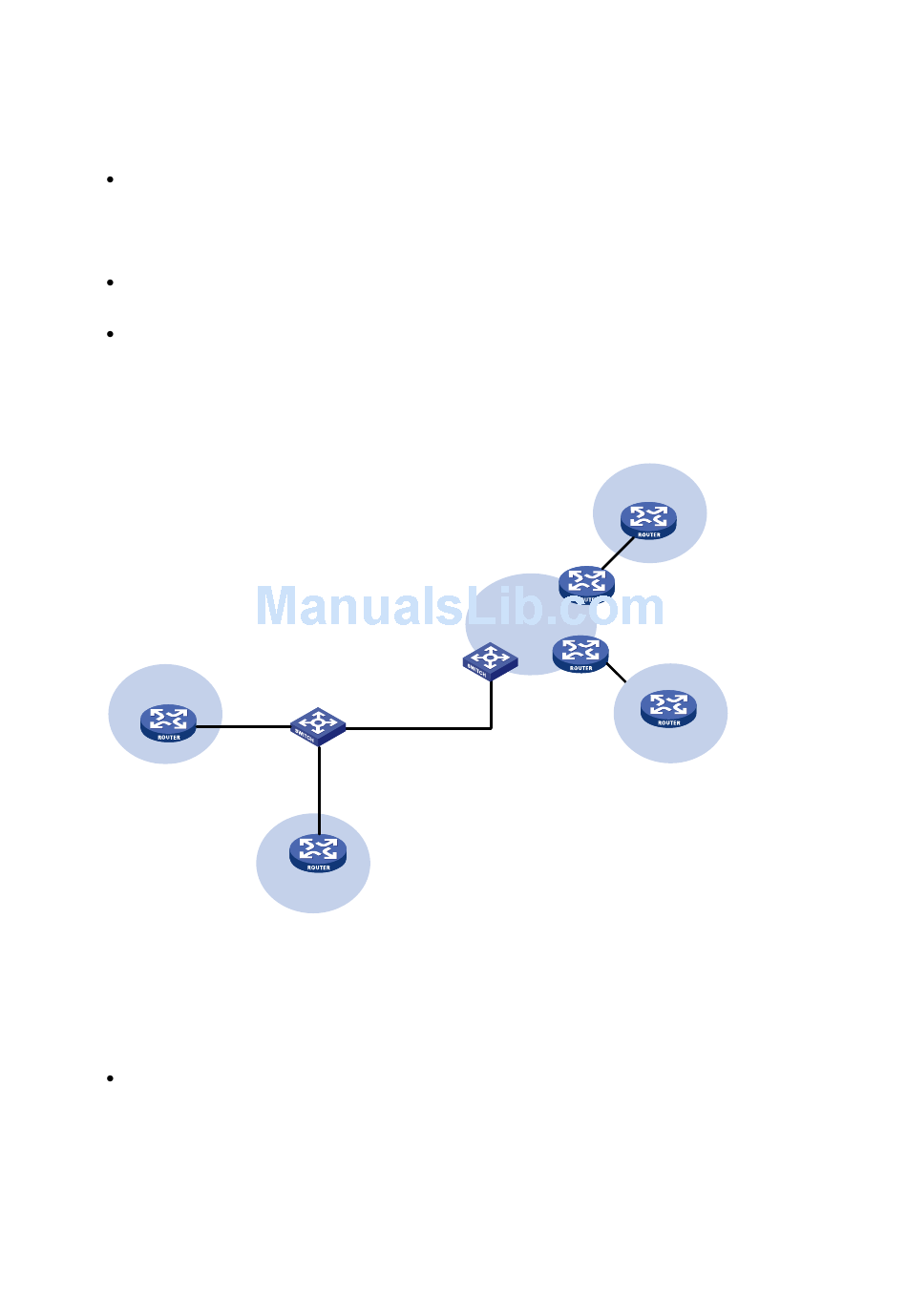

Figure 2-1 Network diagram for MCE configuration (A)
VPN 1
192.168.0.0
VR1
Configuration procedure
For distinguish devices, assume the system name of the MCE device is "MCE", the names of the egress
router of VPN1 and VPN2 are "VR1" and "VR2", and the system name of the PE device is "PE".
Configure VPN instances
# Configure two instances VPN1 and VPN2 on the MCE device, with the RD values of the two VPN
instances being 10:1 and 20:1.
<MCE> system-view
[MCE] ip vpn-instance vpn1
[MCE-vpn-instance-vpn1] route-distinguisher 10:1
[MCE-vpn-instance-vpn1] quit
GE2/0/3
MCE
Vlan-int30
GE2/0/10
10.214.30.1
Vlan-int40
Vlan-int10
10.214.40.1
10.214.10.3
GE2/0/20
Vlan-int20
10.214.20.3
VR2
RIP
192.168.10.0
VPN 2
PE
PE
GE2/0/18
2-13
VPN 2
Site 1
CE
PE
CE
Site 2
VPN 1
