that of the VLAN interface on the switch is 129.102.0.1. Perform the following
configurations on the switch: setting the community name and access authority,
administrator ID, contact and switch location, and enabling the switch to send
trap packets.
Network diagram

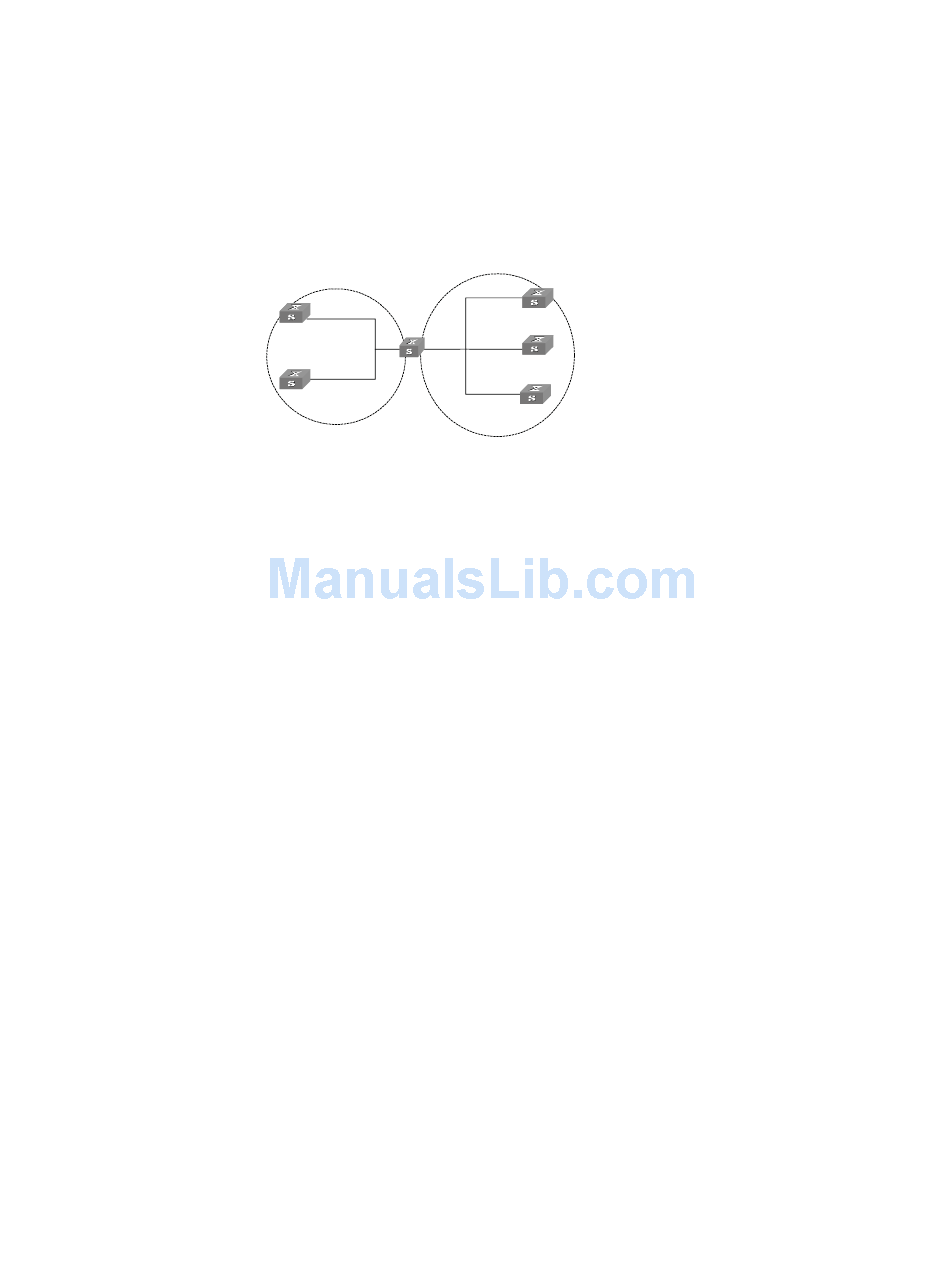

Figure 174 Network diagram for SNMP configuration
Vlan - interface2:
1.0.1.11
3Com-1
1.0.1.2
3Com-0
Vlan - interface2:
1.0.1.12
3Com-2
......
Configuration procedure
# Enter the system view.
<SW8800> system-view
# Set the community name, group and user.
[SW8800] snmp-agent sys-info version all
[SW8800] snmp-agent community read public
[SW8800] snmp-agent mib include internet 1.3.6.1
[SW8800] snmp-agent group v3 managev3group write internet
[SW8800] snmp-agent usm v3 managev3user managev3group
# Set the VLAN interface 2 as the interface for network management. Add port
GigabitEthernet 2/1/3 to the VLAN 2. This port will be used for network
management. Set the IP address of VLAN interface 2 as 129.102.0.1.
[SW8800] vlan 2
[3Com-vlan2] port gigabitethernet 2/1/3
[3Com-vlan2] interface vlan 2
[3Com-Vlan-interface2] ip address 129.102.0.1 255.255.0.0
# Enable SNMP agent to send the trap to network management station whose IP
address is 129.102.149.23. The SNMP community is public.
[SW8800] snmp-agent trap enable standard authentication
[SW8800] snmp-agent trap enable standard coldstart
[SW8800] snmp-agent trap enable standard linkup
[SW8800] snmp-agent trap enable standard linkdown
[SW8800] snmp-agent target-host trap address udp-domain 129.102.149.23 udp-
port 5000 params securityname public
Configure network management system
The PC on which the network management resides requires for login
configuration. As for Mib-Browser, the login configuration is as follows:
SNMPV1/V2 logs in using the default community name public, and the SNMPV3
logs in using managev3user.
Vlan - interface2:
3.0.1.31
3Com-3
Vlan - interface2:
3.0.1.2
3.0.1.32
3Com-4
Vlan - interface2:
3.0.1.33
3Com-5
