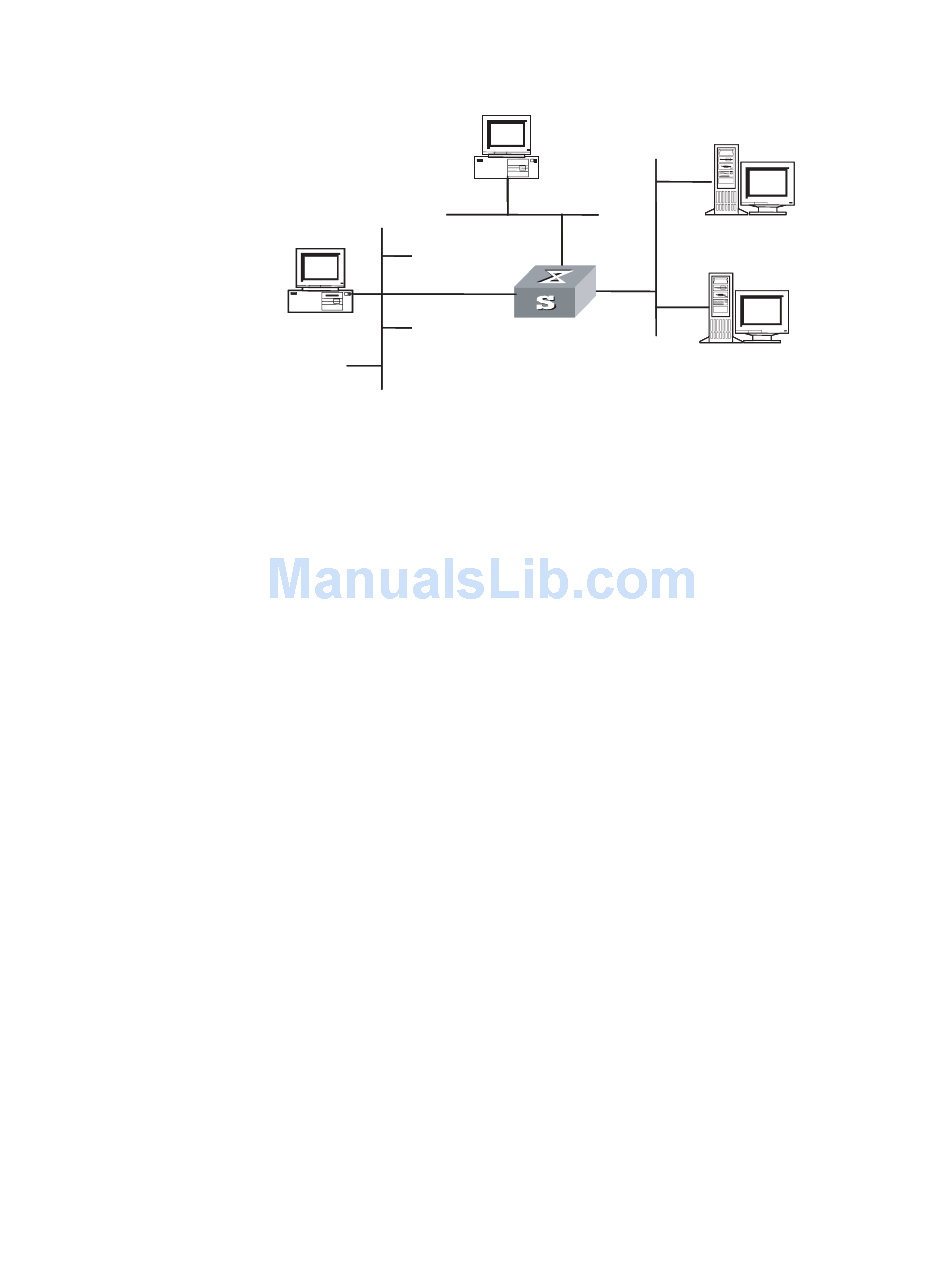

Figure 60 Network diagram for HWTACACS
Terminal User Terminal User
User User
Basic message exchange procedures in HWTACACS
For example, use HWTACACS to implement authentication, authorization, and
accounting for a telnet user. The basic message exchange procedures are as
follows:
A user requests access to the switch; the TACACS client sends a
■
start-authentication packet to TACACS server upon receiving the request.
The TACACS server sends back an authentication response requesting for the
■
username; the TACACS client asks the user for the username upon receiving
the response.
The TACACS client sends an authentication continuance packet carrying the
■
username after receiving the username from the user.
The TACACS server sends back an authentication response, requesting for the
■
login password. Upon receiving the response, the TACACS client requests the
user for the login password.
After receiving the login password, the TACACS client sends an authentication
■
continuance packet carrying the login password to the TACACS server.
The TACACS server sends back an authentication response indicating that the
■
user has passed the authentication.
The TACACS client sends the user authorization packet to the TACACS server.
■
The TACACS server sends back the authorization response, indicating that the
■
user has passed the authorization.
Upon receipt of the response indicating an authorization success, the TACACS
■
client pushes the configuration interface of the switch to the user.
The TACACS client sends a start-accounting request to the TACACS server.
■
The TACACS server sends back an accounting response, indicating that it has
■
received the start-accounting request.
The user logs off; the TACACS client sends a stop-accounting request to the
■
TACACS server.
The TACACS server sends a stop-accounting response to the client, which
■
indicates it has received the stop-accounting request packet.
The following figure illustrates the basic message exchange procedures:
AAA and RADIUS/HWTACACS Protocol Overview
TACACS Client TACACS Client
TACACS Server TACACS Server
129.7.66.66 129.7.66.66
TACACS Server TACACS Server
129.7.66.67 129.7.66.67
