204 C 22: Q S C
HAPTER O ONFIGURATION
Traffic Priority
Configuration Example
Network requirements
Re-allocate service parameters according to the mapping table for DSCP 63 for the
packets from PC1 (IP 1.0.0.1) during the time range 8:00 to 18:00 everyday.
Network diagram

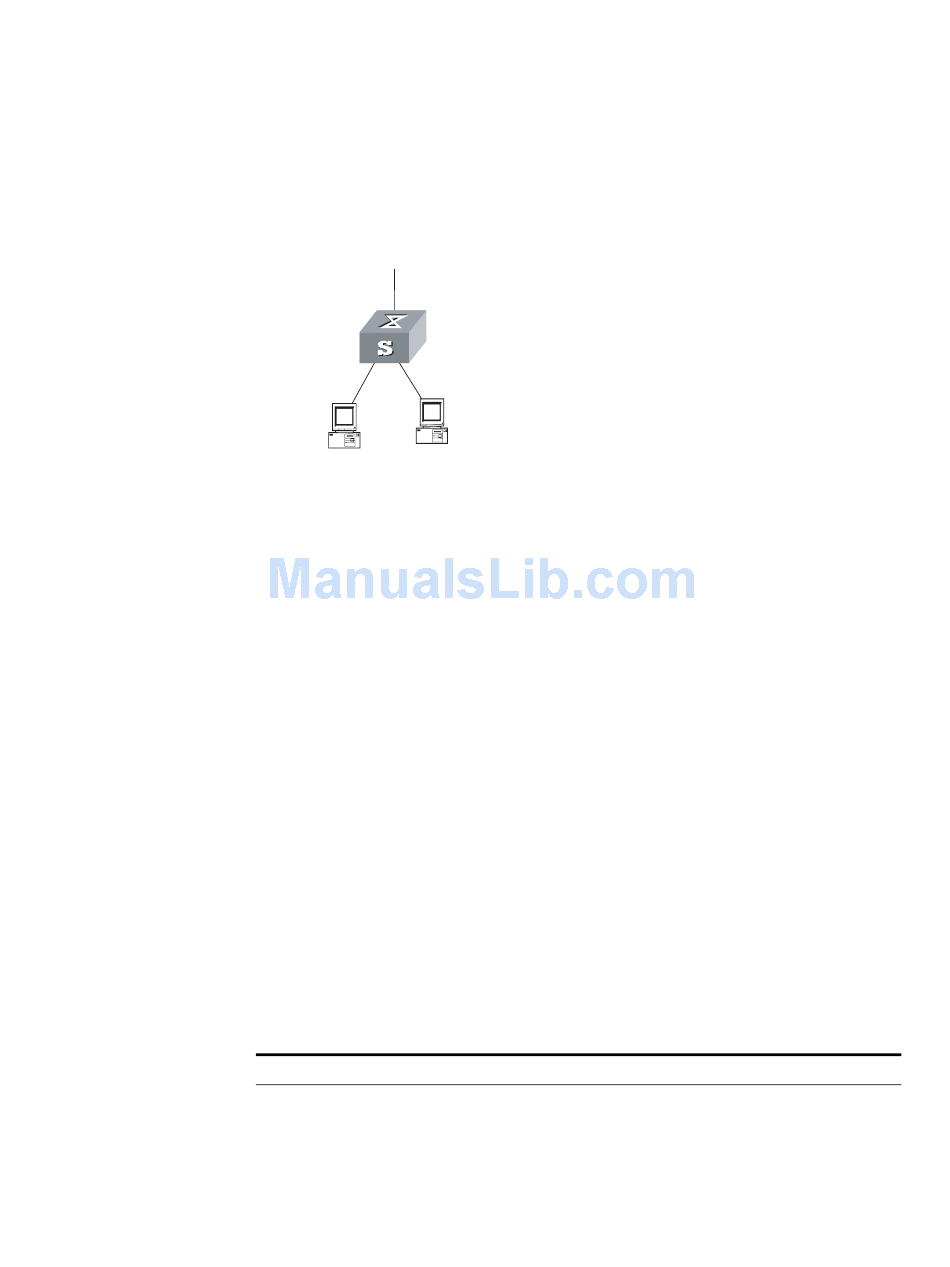

Figure 49 Network diagram for priority configuration
GE7/1/8 GE7/1/8
GE7/1/2 GE7/1/2
GE7/1/1 GE7/1/1
VLAN2, VLAN2,
1.0.0.1/8 1.0.0.1/8
PC1 PC1
Configuration procedure
1 Define the time range.
# Define the time range from 8:00 to 18:00.
[SW8800] time-range 3Com 8:00 to 18:00 daily
2 Define the traffic from PC1.
# Create a number-based basic ACL 2000 and enter it.
[SW8800] acl number 2000
# Define ACL rule for the traffic from PC1.
[3Com-acl-basic-2000] rule 0 permit source 1.0.0.1 0 time-range 3Com
3 Define the CoS-> Conform-Level mapping table.
# Define the CoS-> Conform-Level mapping table. The switch allocates drop
precedence (all as 0 for the sake of simplification) for them when receiving
packets.
[SW8800] qos cos-drop-precedence-map 0 0 0 0 0 0 0 0
The modified CoS-> Conform-Level mapping table:
Table 178 Modified CoS-> Conform-Level mapping table
CoS Value
0
1
2
3
4
5
VLAN3, VLAN3,
2.0.0.1/8 2.0.0.1/8
PC2 PC2
Drop-precedence
0
0
0
0
0
0
