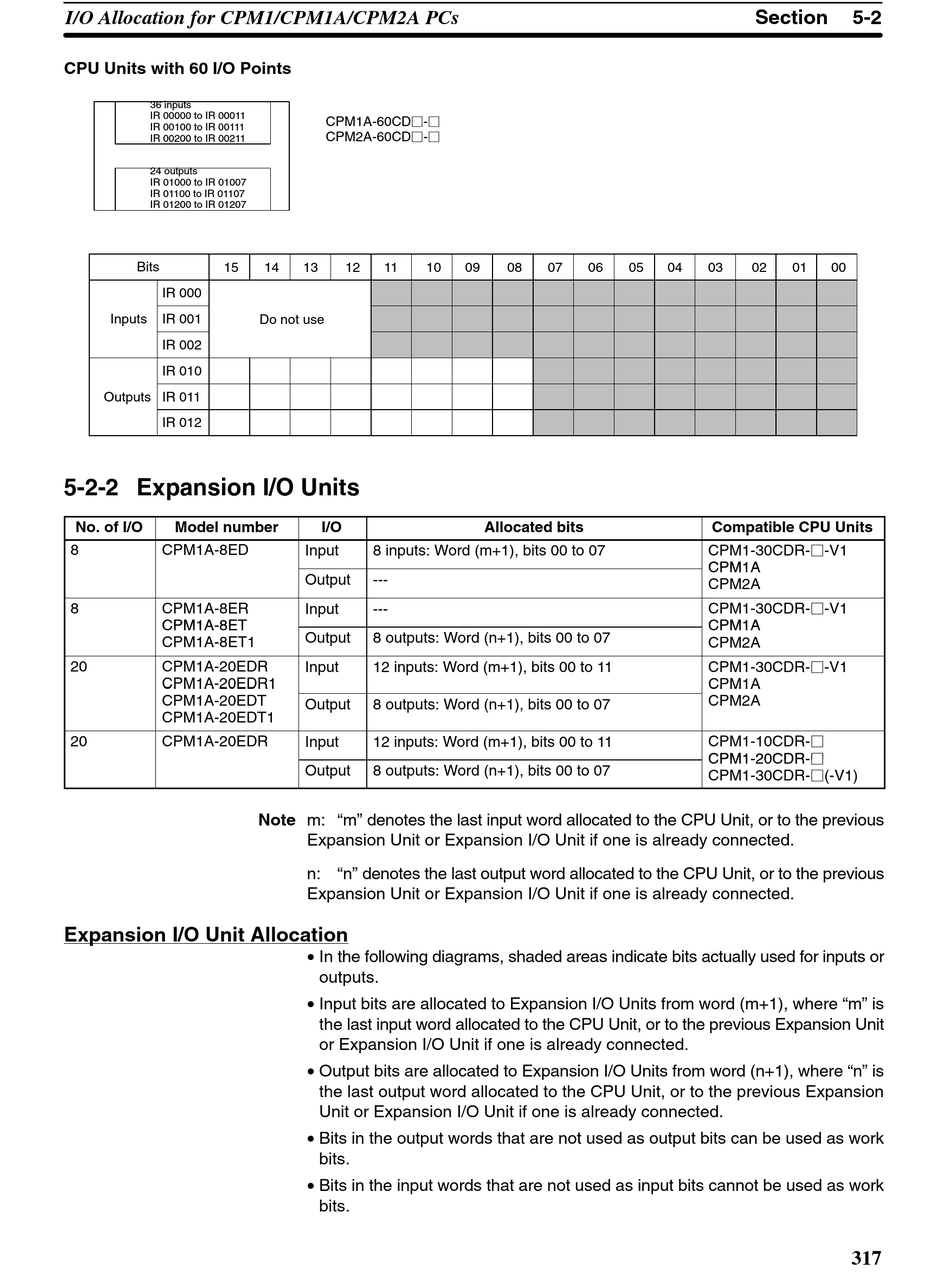

I/O Allocation for CPM1/CPM1A/CPM2A PCs
CPU Units with 60 I/O Points
36 inputs
IR 00000 to IR 00011
IR 00100 to IR 00111
IR 00200 to IR 00211
24 outputs
IR 01000 to IR 01007
IR 01100 to IR 01107
IR 01200 to IR 01207
Bits 15
IR 000
Inputs IR 001
IR 002
IR 010
Outputs IR 011
IR 012

5-2-2 Expansion I/O Units

No. of I/O Model number
8 CPM1A-8ED
8 CPM1A-8ER
CPM1A-8ET CPM1A-8ET
CPM1A-8ET1
20 CPM1A-20EDR
CPM1A 20EDR1 CPM1A-20EDR1
CPM1A-20EDT
CPM1A-20EDT1
20 CPM1A-20EDR
Expansion I/O Unit Allocation
CPM1A-60CDj-j
CPM2A-60CDj-j
14 13 12 11 10
Do not use
I/O
Input 8 inputs: Word (m+1), bits 00 to 07
Output ---
Input ---
Output 8 outputs: Word (n+1), bits 00 to 07
Input 12 inputs: Word (m+1), bits 00 to 11
Output 8 outputs: Word (n+1), bits 00 to 07
Input 12 inputs: Word (m+1), bits 00 to 11
Output 8 outputs: Word (n+1), bits 00 to 07
Note m: "m" denotes the last input word allocated to the CPU Unit, or to the previous
Expansion Unit or Expansion I/O Unit if one is already connected.
n: "n" denotes the last output word allocated to the CPU Unit, or to the previous
Expansion Unit or Expansion I/O Unit if one is already connected.
In the following diagrams, shaded areas indicate bits actually used for inputs or
outputs.
Input bits are allocated to Expansion I/O Units from word (m+1), where "m" is
the last input word allocated to the CPU Unit, or to the previous Expansion Unit
or Expansion I/O Unit if one is already connected.
Output bits are allocated to Expansion I/O Units from word (n+1), where "n" is
the last output word allocated to the CPU Unit, or to the previous Expansion
Unit or Expansion I/O Unit if one is already connected.
Bits in the output words that are not used as output bits can be used as work
bits.
Bits in the input words that are not used as input bits cannot be used as work
bits.
09 08 07 06 05
Allocated bits
Section
04 03 02 01 00
Compatible CPU Units
CPM1-30CDR-j-V1
CPM1A CPM1A
CPM2A
CPM1-30CDR-j-V1
CPM1A CPM1A
CPM2A
CPM1-30CDR-j-V1
CPM1A CPM1A
CPM2A
CPM1-10CDR-j
CPM1-20CDR-j CPM1-20CDR-j
CPM1-30CDR-j(-V1)
5-2
317
