Quick-response Inputs
Using Quick-response Inputs
Wire the inputs.
PC Setup (DM 6628)
Quick-response inputs
Wiring the Inputs
Input numbers 00003, 00004, 00005, and 00006
2: Use as quick-response inputs.
Quick-response input 0
Quick-response input 1
Quick-response input 2
Quick-response input 3
PC Setup
DM 6628

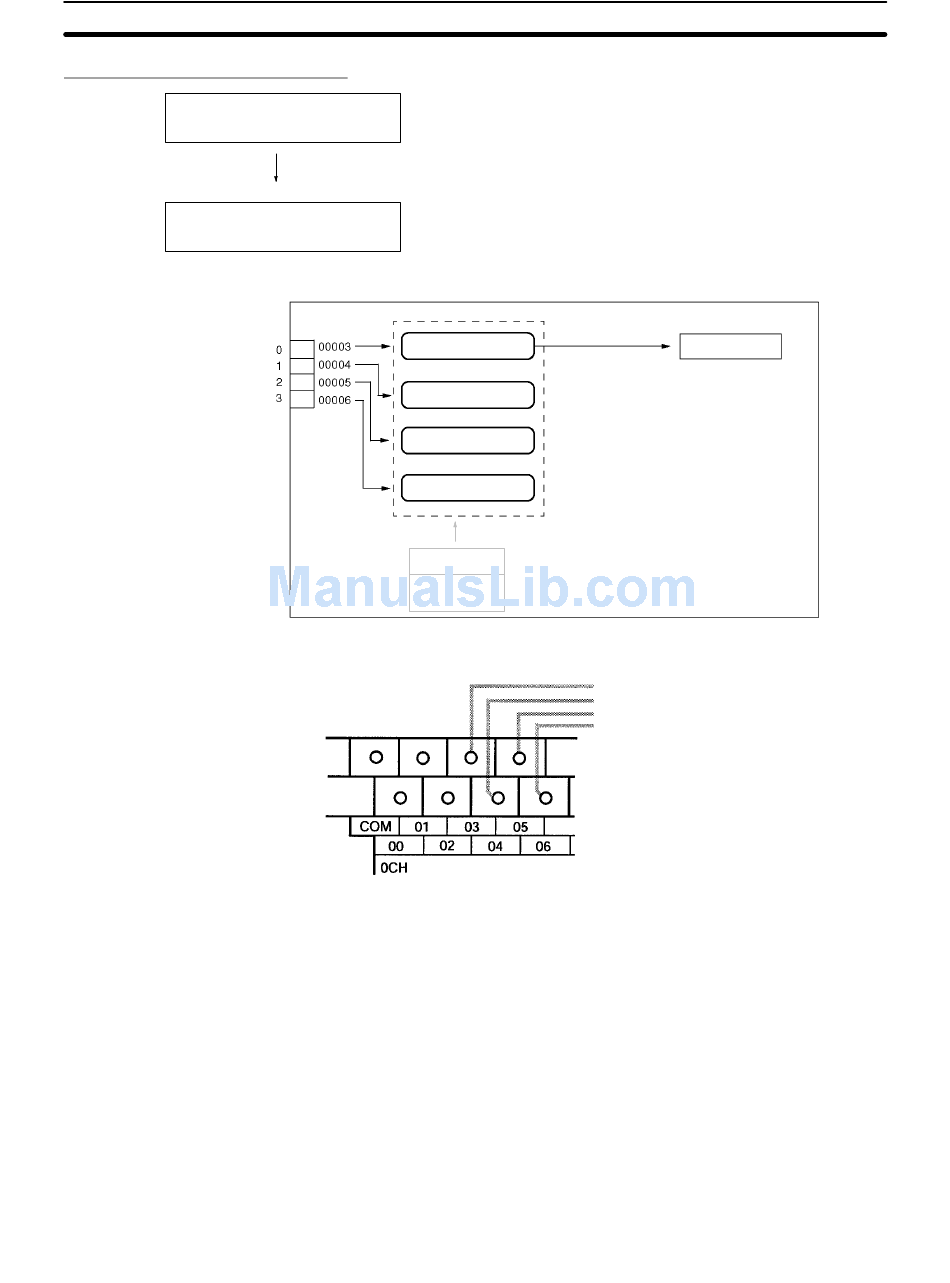

Wire the CPM2A's inputs as shown in the following diagram.
Section
Quick response
Input 00003: Quick-response input 0
Input 00004: Quick-response input 1
Input 00005: Quick-response input 2
Input 00006: Quick-response input 3
