CPM2A/CPM2C Pulse Output Functions
Application Examples
Positioning
108
Explanation

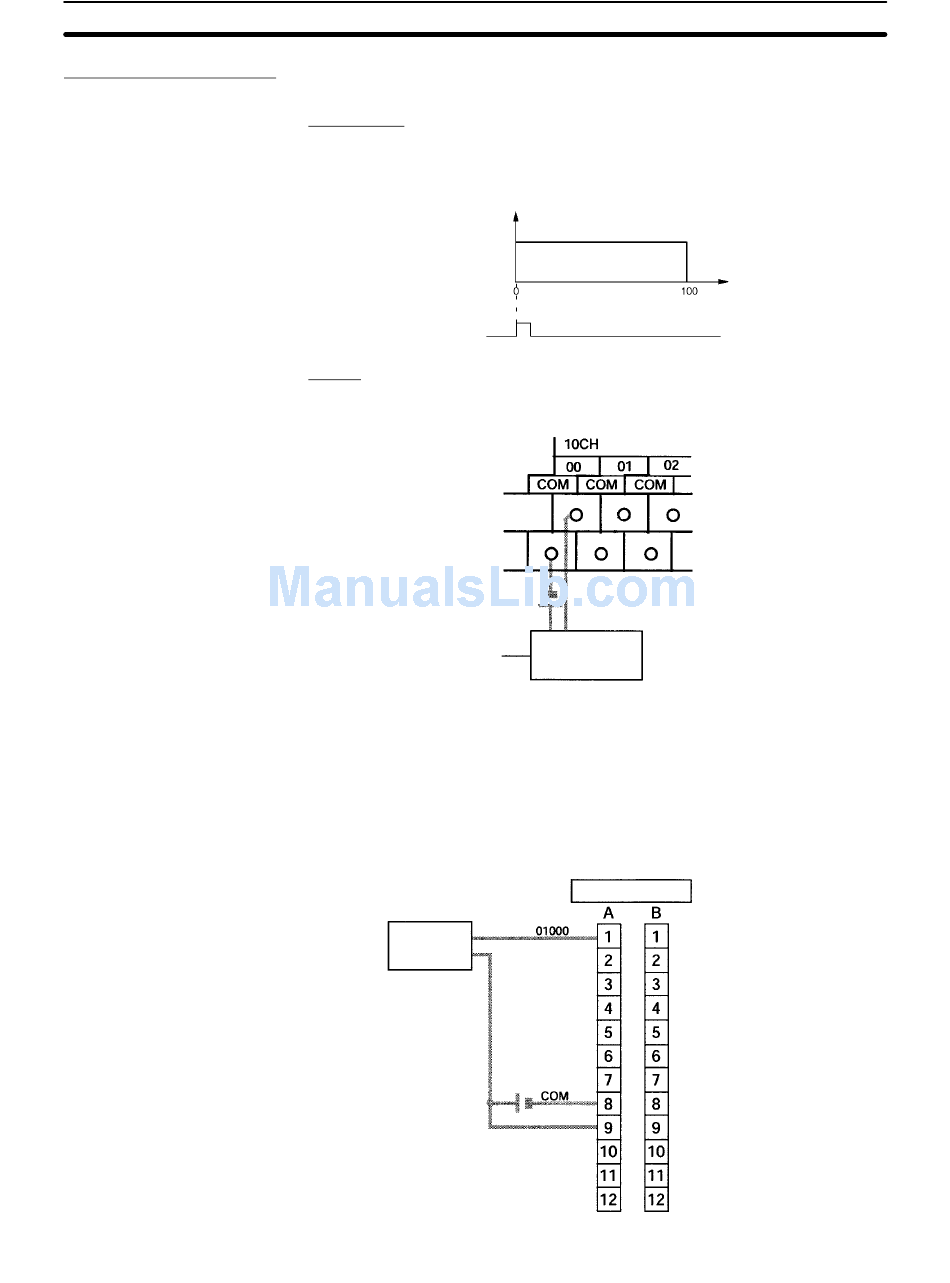

In this example, when the execution condition (00005) turns ON, 100 pulses are
output from output 01000 (pulse output 0) at a frequency of 60 Hz.
Execution condition
(00005)
Wiring
Wire the CPM2A to the motor driver as shown in the following illustration.
Wire the CPM2C to the motor driver as shown in the following illustration. In this
case, a CPU Unit with sinking transistor outputs is used.
Note The following examples are for Fujitsu-compatible connectors. Output bit ad-
dresses and connector pin numbers depend on the models. Refer to the CPM2C
Operation Manual (W356) or the CPM2C-S Operation Manual (W377) for de-
tails.
Motor Driver
Frequency
60 Hz
Motor Driver
Output connector
24 VDC
Section 2-5
Number of pulses
(See above note.)
