Temperature Sensor Units

3-2-2 CPM2C Temperature Sensor Units

Thermocouples or
platinum resistance
thermometers
Specifications
194
2. Accuracy for a K-type sensor at –100 C or less is 4_C 1 digit max.

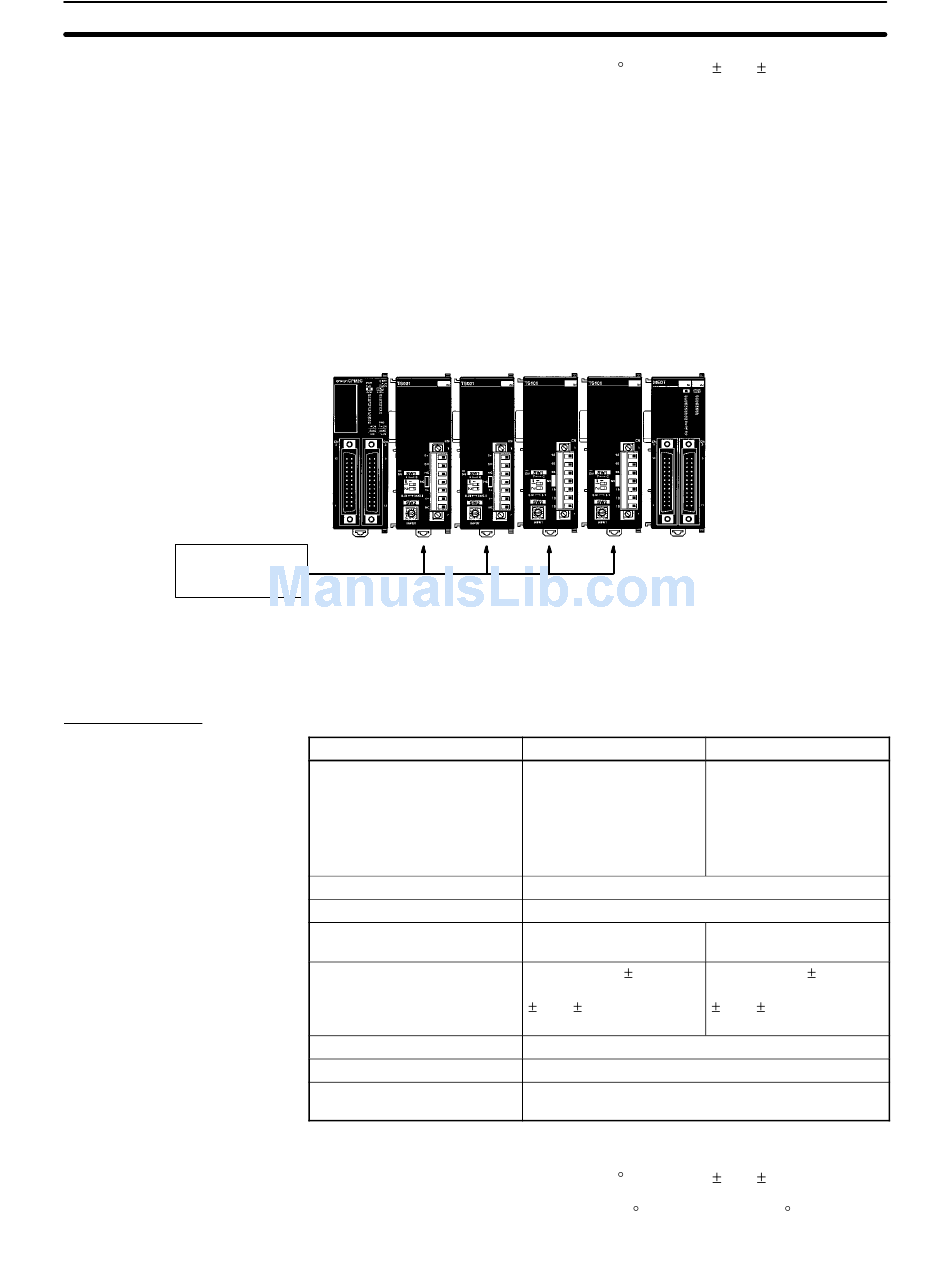

With the CPM2C (including the CPM2C-S), up to four CPM2C-TS001/TS101
Temperature Sensor Units can be connected (up to three Units for the
CPM2C-S). Each Temperature Sensor Unit provides 2 input points meaning that
a total of 8 input points can be used. The inputs can be from thermocouples or
platinum resistance thermometers.
CPM2C-TS001/101
Temperature Sensor Units
CPM2C CPU Unit
Temperature inputs
8 points max.
Item
Temperature sensors
Number of inputs
Allocated input words
Max. number of Units
(See note 1.)
Accuracy
Conversion time
Converted temperature data
Isolation
Note 1. Accuracy for a K-type sensor at –100 C or less is 4_C 1 digit max.
2. The error deviation for temperatures in F is double that for C.
Expansion I/O Unit
CPM2C-TS001
Thermocouples
Switchable between K
and J, but same type
must be used for all
inputs.
2
2
4
(The larger of 0.5% of
converted value or
2_C) 1 digit max. (See
note.)
250 ms for 2 input points
16-bit binary data (4-digit hexadecimal)
Photocouplers between all temperature input
signals
Section 3-2
CPM2C-TS101
Platinum resistance
thermometer
Switchable between
Pt100 and JPt100, but
same type must be used
for all inputs.
4
(The larger of 0.5% of
converted value or
1_C) 1 digit max.
