Cpm2A/Cpm2C Pulse Output Functions - Omron CPM1 - PROGRAMING MANUAL 02-2001 Programming Manual

CPM2A/CPM2C Pulse Output Functions

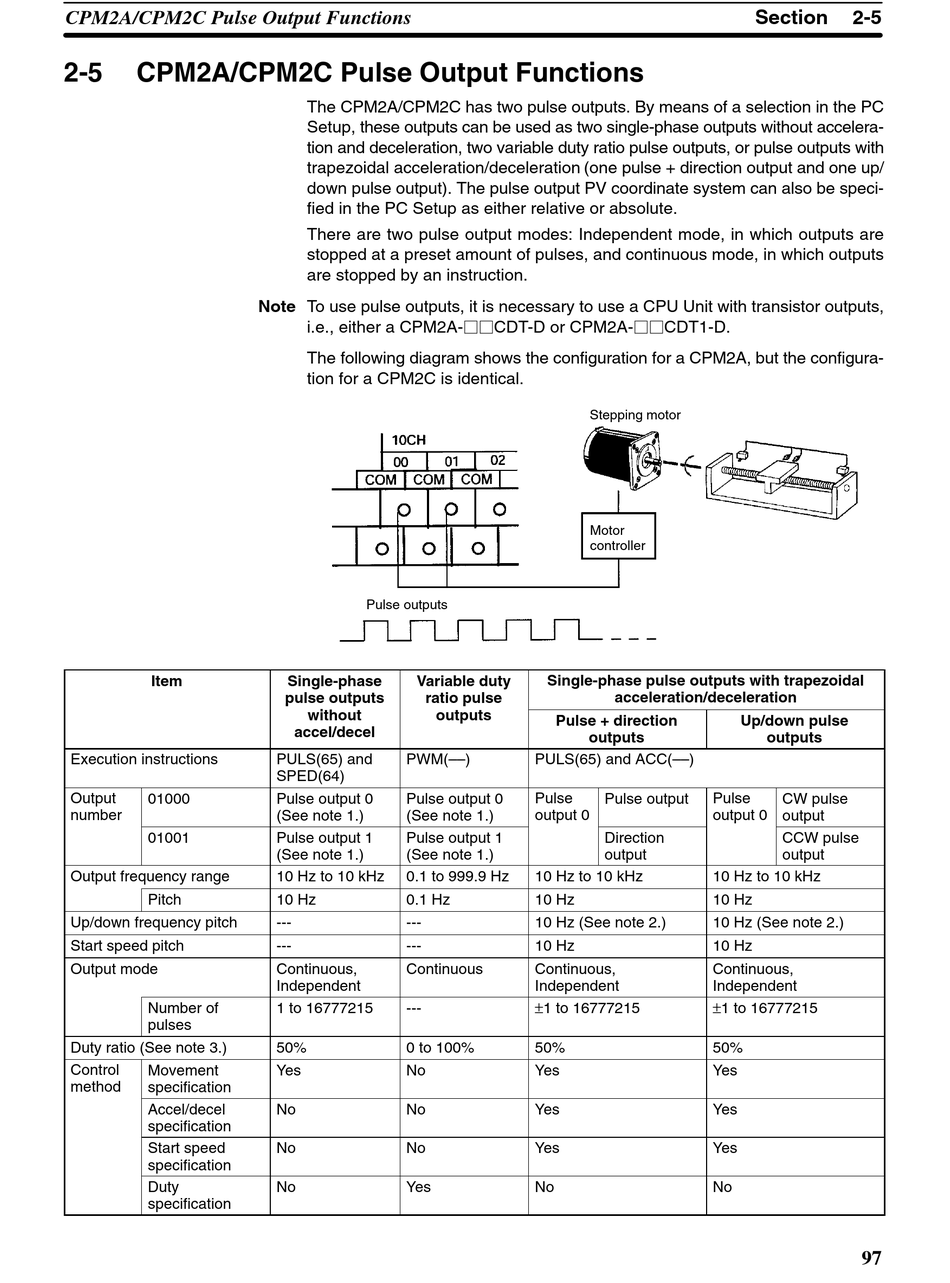

2-5 CPM2A/CPM2C Pulse Output Functions
Item
Execution instructions
Output
01000
number
u be
01001
Output frequency range
Pitch
Up/down frequency pitch
Start speed pitch
Output mode
Number of
pulses
Duty ratio (See note 3.)
Control Movement
method e od specification
Accel/decel
specification
Start speed
specification
Duty
specification
The CPM2A/CPM2C has two pulse outputs. By means of a selection in the PC
Setup, these outputs can be used as two single-phase outputs without accelera-
tion and deceleration, two variable duty ratio pulse outputs, or pulse outputs with
trapezoidal acceleration/deceleration (one pulse + direction output and one up/
down pulse output). The pulse output PV coordinate system can also be speci-
fied in the PC Setup as either relative or absolute.
There are two pulse output modes: Independent mode, in which outputs are
stopped at a preset amount of pulses, and continuous mode, in which outputs
are stopped by an instruction.
Note To use pulse outputs, it is necessary to use a CPU Unit with transistor outputs,
i.e., either a CPM2A-jjCDT-D or CPM2A-jjCDT1-D.
The following diagram shows the configuration for a CPM2A, but the configura-
tion for a CPM2C is identical.
Pulse outputs
Single-phase Variable duty
pu se ou pu s pulse outputs ratio pulse a o pu se
without i outputs
accel/decel
PULS(65) and PWM(––)
SPED(64)
Pulse output 0 Pulse output 0
(See note 1.) (See note 1.)
Pulse output 1 Pulse output 1
(See note 1.) (See note 1.)
10 Hz to 10 kHz 0.1 to 999.9 Hz
10 Hz 0.1 Hz
--- ---
--- ---
Continuous, Continuous
Independent
1 to 16777215 ---
50% 0 to 100%
Yes No
No No
No No
No Yes
Stepping motor
Motor
controller
Single-phase pulse outputs with trapezoidal
acceleration/deceleration
Pulse + direction
outputs
PULS(65) and ACC(––)
Pulse Pulse
Pulse output
output 0 output 0
ou pu 0 ou pu 0
Direction
output
10 Hz to 10 kHz 10 Hz to 10 kHz
10 Hz 10 Hz
10 Hz (See note 2.) 10 Hz (See note 2.)
10 Hz 10 Hz
Continuous, Continuous,
Independent Independent
1 to 16777215
50% 50%
Yes Yes
Yes Yes
Yes Yes
No No
Section 2-5
Up/down pulse
outputs
CW pulse
output
CCW pulse
output
1 to 16777215
97
