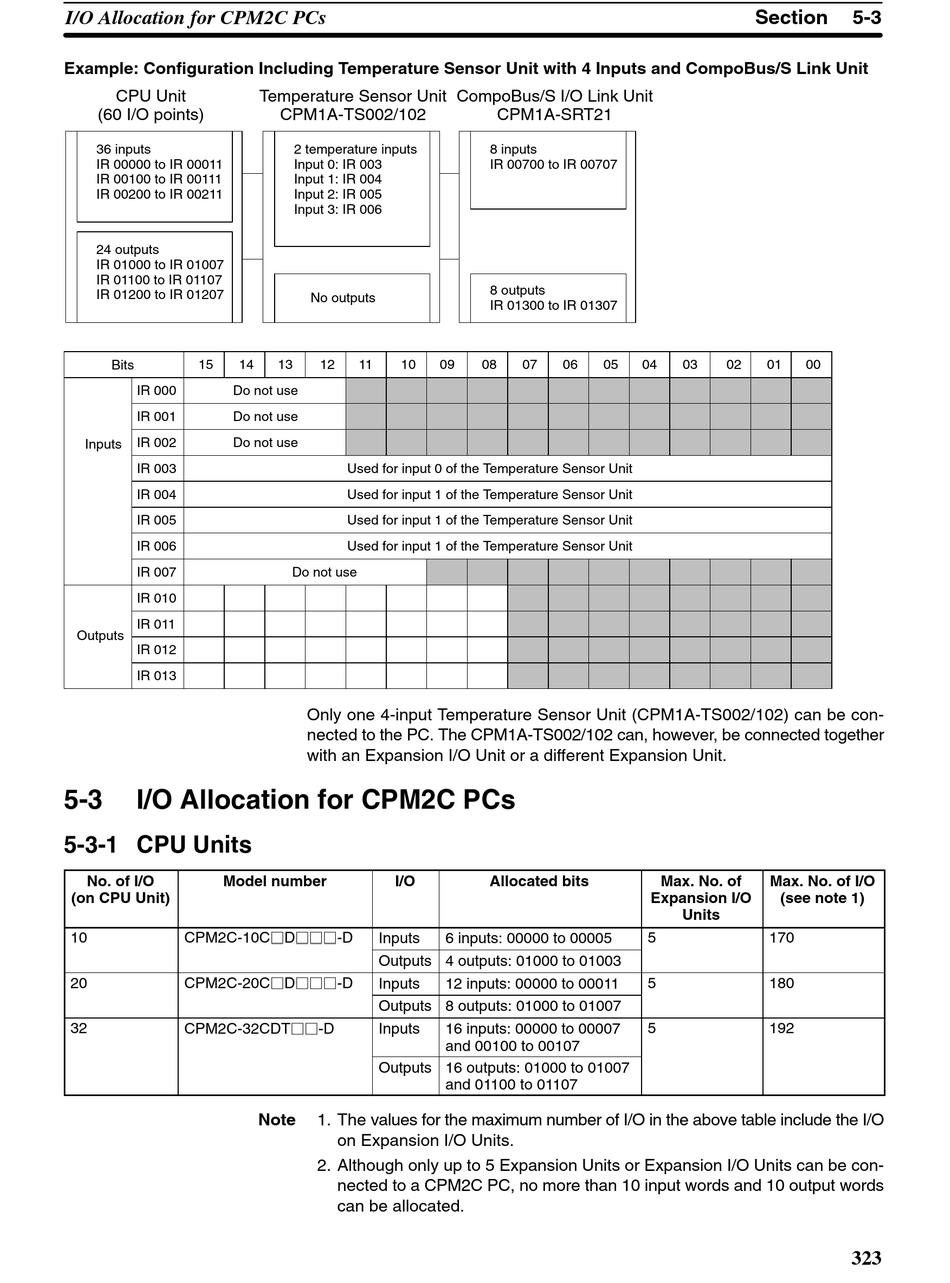

I/O Allocation for CPM2C PCs

Example: Configuration Including Temperature Sensor Unit with 4 Inputs and CompoBus/S Link Unit
CPU Unit
(60 I/O points)
36 inputs
IR 00000 to IR 00011
IR 00100 to IR 00111
IR 00200 to IR 00211
24 outputs
IR 01000 to IR 01007
IR 01100 to IR 01107
IR 01200 to IR 01207
15 14
Bits
IR 000 Do not use
IR 001 Do not use
IR 002 Do not use
Inputs
IR 003
IR 004
IR 005
IR 006
IR 007
IR 010
IR 011
Outputs
IR 012
IR 013
5-3

I/O Allocation for CPM2C PCs

5-3-1 CPU Units

No. of I/O Model number
(on CPU Unit)
10 CPM2C-10CjDjjj-D
20 CPM2C-20CjDjjj-D
32 CPM2C-32CDTjj-D
Temperature Sensor Unit
CPM1A-TS002/102
2 temperature inputs
Input 0: IR 003
Input 1: IR 004
Input 2: IR 005
Input 3: IR 006
No outputs
13 12 11 10
Used for input 0 of the Temperature Sensor Unit
Used for input 1 of the Temperature Sensor Unit
Used for input 1 of the Temperature Sensor Unit
Used for input 1 of the Temperature Sensor Unit
Do not use
Only one 4-input Temperature Sensor Unit (CPM1A-TS002/102) can be con-
nected to the PC. The CPM1A-TS002/102 can, however, be connected together
with an Expansion I/O Unit or a different Expansion Unit.
I/O
j jjj
Inputs
Outputs 4 outputs: 01000 to 01003
j jjj
Inputs
Outputs 8 outputs: 01000 to 01007
Inputs
Outputs 16 outputs: 01000 to 01007
Note 1. The values for the maximum number of I/O in the above table include the I/O
on Expansion I/O Units.
2. Although only up to 5 Expansion Units or Expansion I/O Units can be con-
nected to a CPM2C PC, no more than 10 input words and 10 output words
can be allocated.
CompoBus/S I/O Link Unit
CPM1A-SRT21
8 inputs
IR 00700 to IR 00707
8 outputs
IR 01300 to IR 01307
09 08 07 06 05
Allocated bits
6 inputs: 00000 to 00005
12 inputs: 00000 to 00011
16 inputs: 00000 to 00007
and 00100 to 00107
and 01100 to 01107
Section
04 03 02 01 00
Max. No. of Max. No. of I/O
Expansion I/O (see note 1)
Units
5 170
5 180
5 192
5-3
