CPM2A/CPM2C Pulse Output Functions

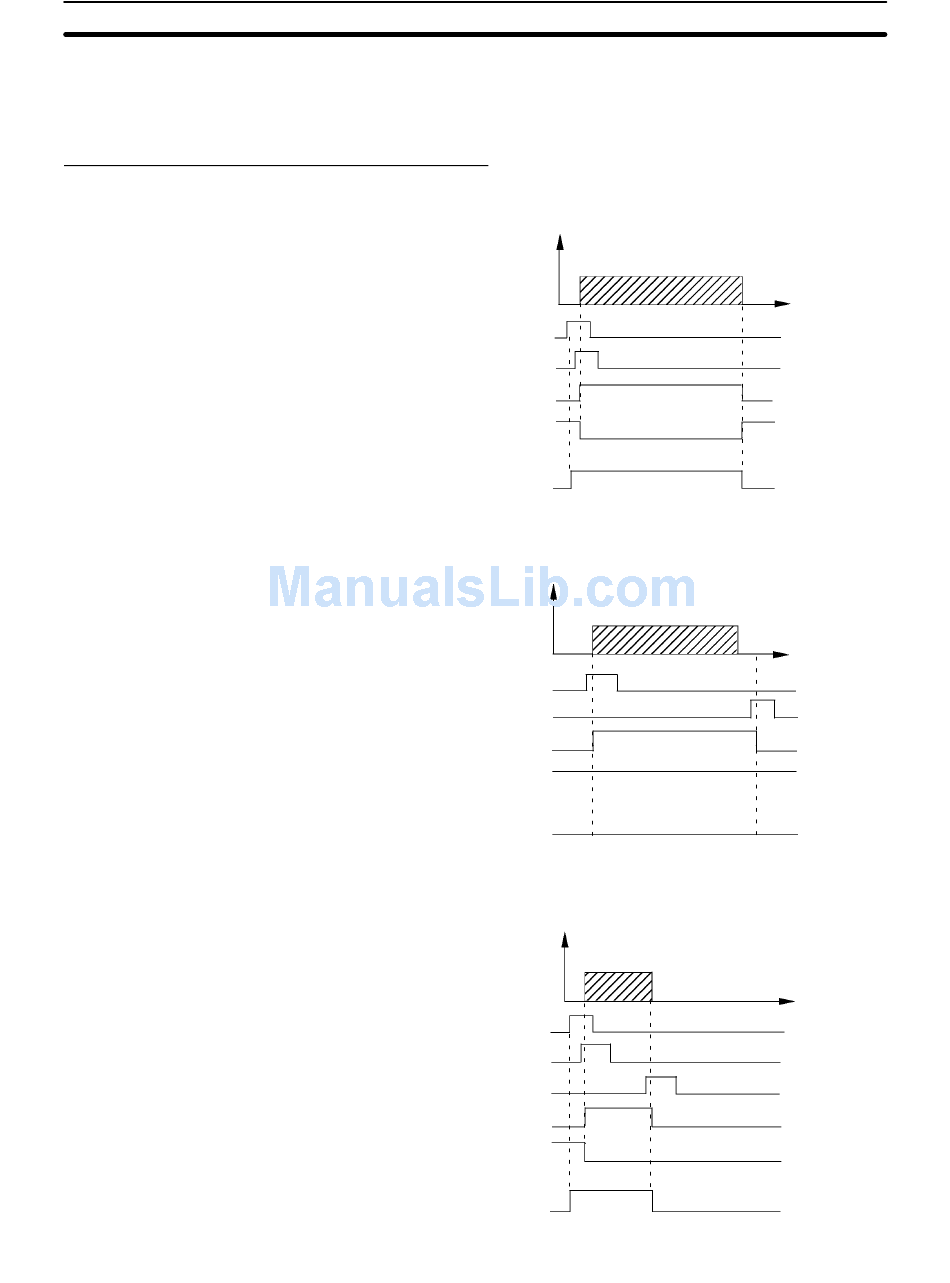

Relationship Between Status and Operation
Independent Mode (Without Acceleration and Deceleration)
Continuous Mode
Stopping Output in Independent Mode (Without Acceleration and Deceleration)
Note The flags in AR 11 and AR 12 are refreshed once each cycle, so the values in
these words may not reflect the actual status during each cycle, but the flags in
AR 11 and AR 12 are refreshed when the status is read with PRV(62).
PULS(65) execution
SPED(64) execution
Output in progress
Output completed
Number of pulses set
SPED(64) execution
INI(61) execution
Output in progress
Output completed
Number of pulses set
PULS(65) execution
SPED(64) execution
INI(61) execution
Output in progress
Output completed
Number of pulses set
Frequency
Frequency
Frequency
Section 2-5
Time
Time
Time
