Quick-response Inputs
Input terminal
Input 00004: Quick-response input 1
Input 00003: Quick-response input 0
PC Setup
156

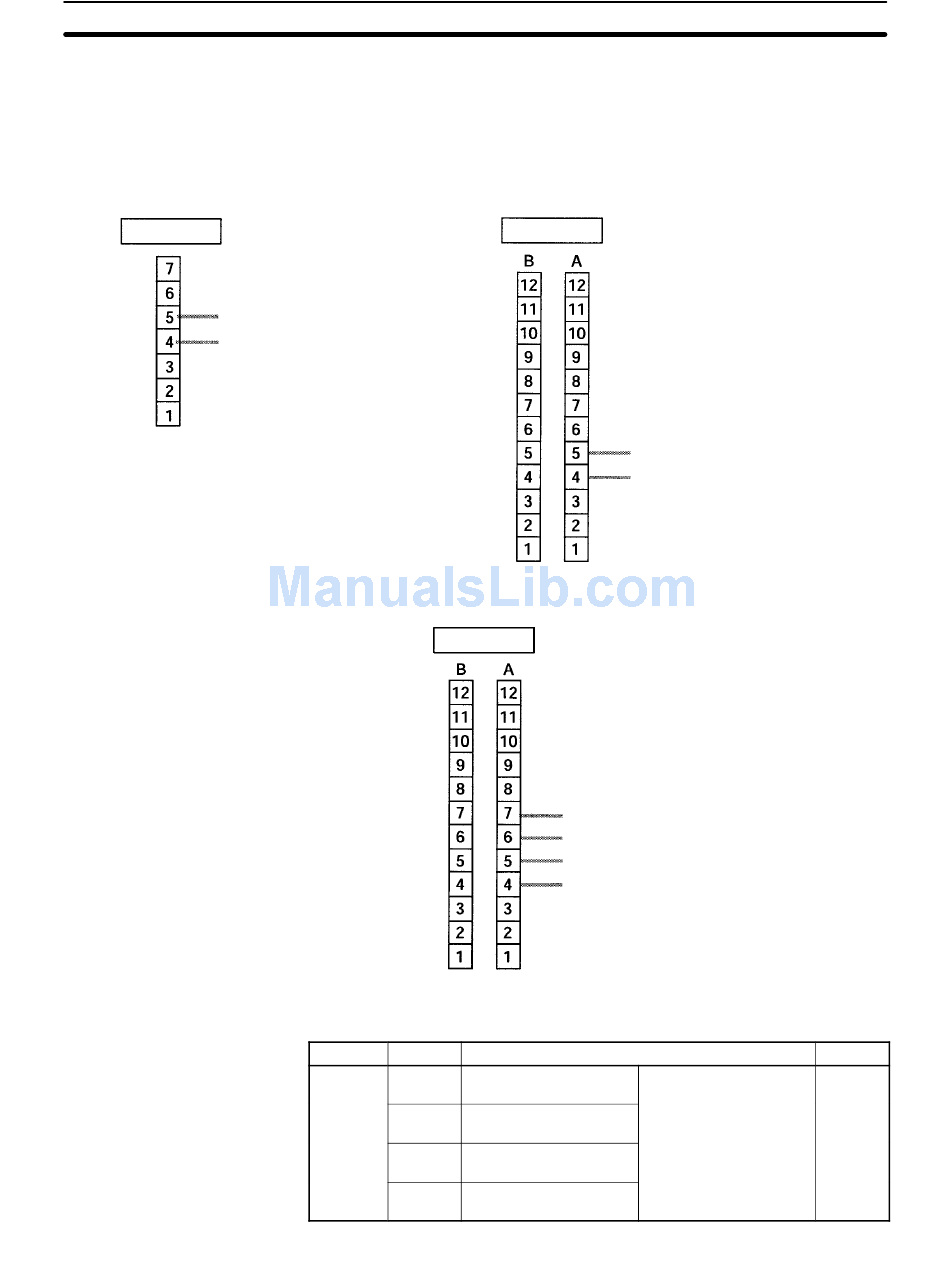

Wire the CPM2C's inputs as shown in the following diagram.
Note The following examples are for Fujitsu-compatible connectors. Input bit ad-
dresses and connector pin numbers depend on the models. Refer to the CPM2C
Operation Manual (W356) or the CPM2C-S Operation Manual (W377) for de-
tails.
CPU Units with 10 I/O Points
CPU Units with 20/32 I/O Points
Input connector
To use quick-response inputs with the CPM2A or CPM2C, make the following
settings in the System Setup Area (DM 6628) from a Programming Device.
Word Bits
DM 6628
00 to 03
04 to 07
08 to 11
12 to 15
(See above note.)
Input connector
00004: Quick-response input 1
00003: Quick-response input 0
(See above note.)
00006: Quick-response input 3*
00005: Quick-response input 2*
00004: Quick-response input 1
00003: Quick-response input 0
Function
0: Ordinary input
Interrupt setting for
input number 3
1: Interrupt input 1: Interrupt input
Interrupt setting for
(interrupt input mode or
input number 4
counter mode) counter mode)
Interrupt setting for
2: Quick-response input
input number 5*
Interrupt setting for
input number 6*
Section 2-14
Setting
2
