Analog Controls (CPM1/CPM1A/CPM2A Only)

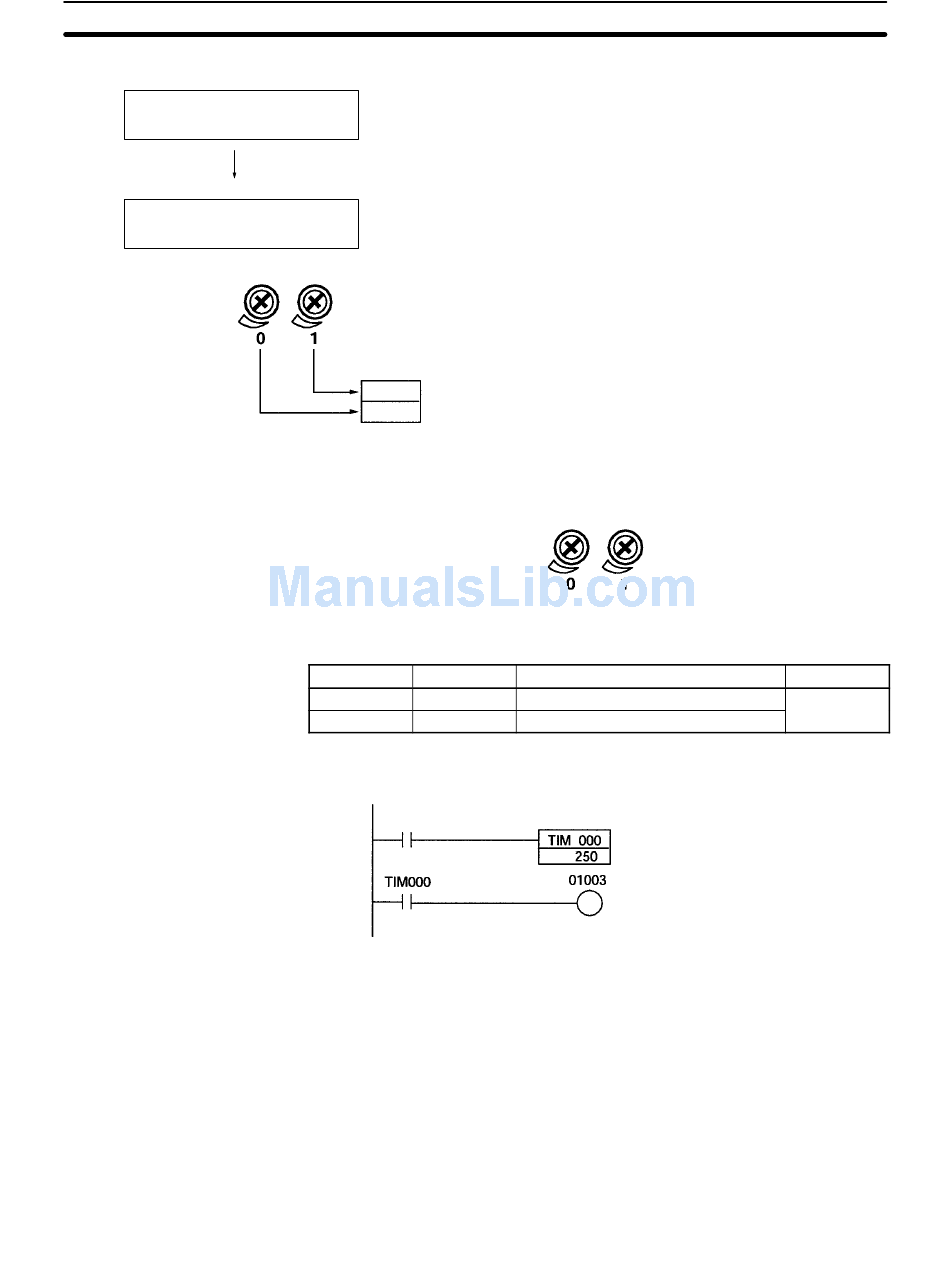

Using Analog Controls
Make the analog settings.
Create a ladder diagram program.
Analog control 0
Making the Analog
Settings
Ladder Diagram
Programming
152
Use a Phillips screwdriver to adjust the controls.
Connect a Programming Device such as a Programming Console, and
check the values stored in SR 250 and SR 251.
Read the values in SR 250 and SR 251 with the ladder diagram program.
Analog control 1
SR 251 Analog control 1 set value (SV)
SR 250 Analog control 0 set value (SV)
Use a Phillips screwdriver to adjust the analog controls. The set values can be
checked by connecting a Programming Device such as a Programming Console
and reading the values stored in SR 250 and SR 251.
Analog control 0
The following table shows the words and bits where the analog settings are
stored.
Word Bit
SR 250 00 to 15
SR 251 00 to 15
In the following example program, the analog control SV (0000 to 0200 BCD)
stored in SR 250 is set as a timer SV. The timer's set range is 0.0 s to 20.0 s.
Start bit
Analog control 1
Name
Analog control 0 SV storage area
Analog control 1 SV storage area
Specifies SR 250 for the timer SV.
Section 2-13
Value
0000 to 0200
(BCD) (BCD)
