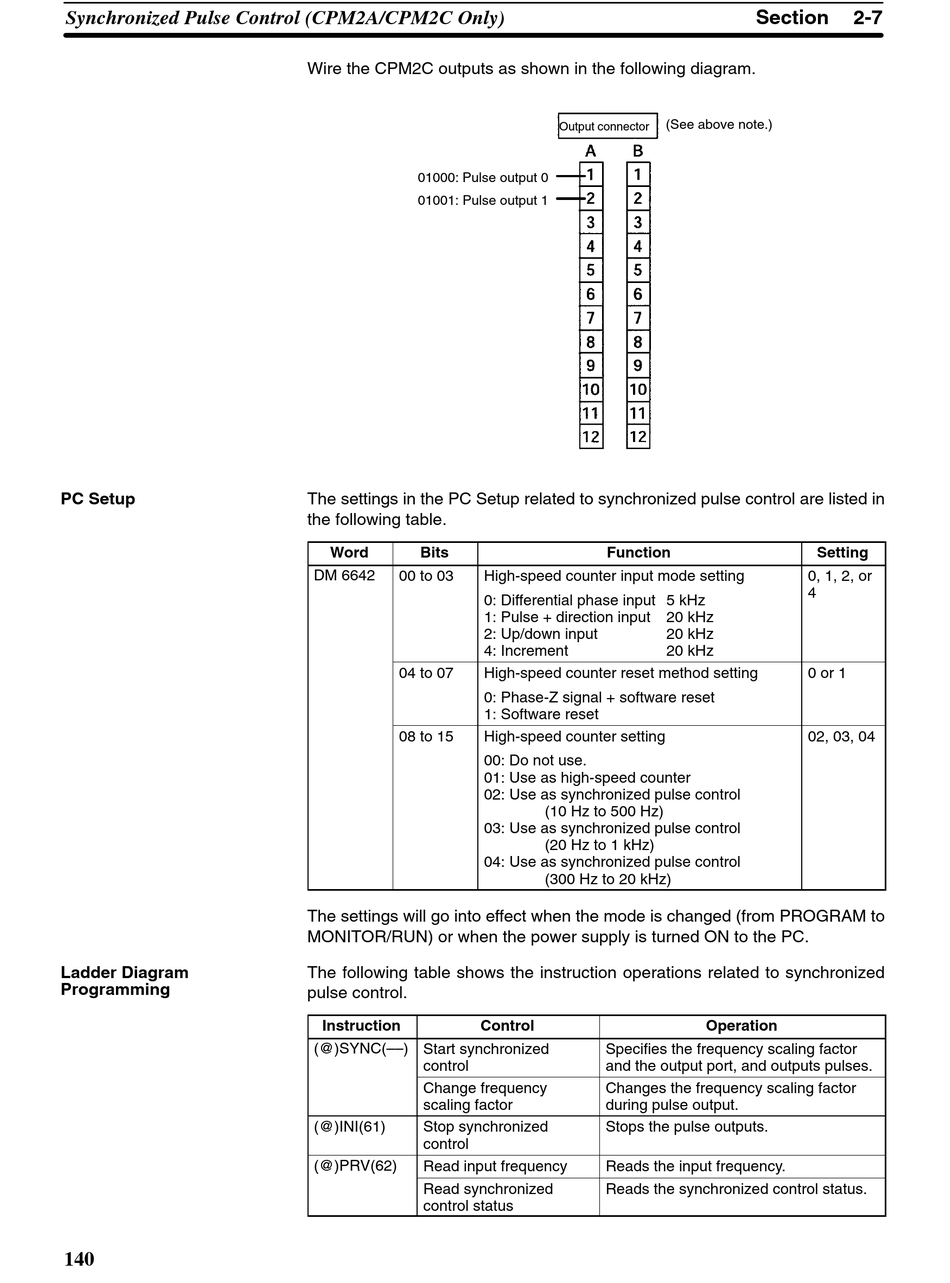

Omron CPM1 - PROGRAMING MANUAL 02-2001 Programming Manual page 161

Synchronized Pulse Control (CPM2A/CPM2C Only)
PC Setup
Ladder Diagram
Programming
140
Wire the CPM2C outputs as shown in the following diagram.
01000: Pulse output 0
01001: Pulse output 1
The settings in the PC Setup related to synchronized pulse control are listed in
the following table.
Word Bits
DM 6642 00 to 03 High-speed counter input mode setting
0: Differential phase input 5 kHz
1: Pulse + direction input 20 kHz
2: Up/down input
4: Increment
04 to 07 High-speed counter reset method setting
0: Phase-Z signal + software reset
1: Software reset
08 to 15 High-speed counter setting
00: Do not use.
01: Use as high-speed counter
02: Use as synchronized pulse control
03: Use as synchronized pulse control
04: Use as synchronized pulse control
The settings will go into effect when the mode is changed (from PROGRAM to
MONITOR/RUN) or when the power supply is turned ON to the PC.
The following table shows the instruction operations related to synchronized
pulse control.
Instruction Control
(@)SYNC(––) Start synchronized
control
Change frequency
scaling factor
(@)INI(61) Stop synchronized
control
(@)PRV(62) ( ) ( ) Read input frequency
Read synchronized
control status
(See above note.)
Output connector
Function
20 kHz
20 kHz
(10 Hz to 500 Hz)
(20 Hz to 1 kHz)
(300 Hz to 20 kHz)
Operation
Specifies the frequency scaling factor
and the output port, and outputs pulses.
Changes the frequency scaling factor
during pulse output.
Stops the pulse outputs.
Reads the input frequency.
Reads the synchronized control status.
Section 2-7
Setting
0, 1, 2, or
4
0 or 1
02, 03, 04
