CPM2A/CPM2C High-speed Counters
Range Comparison
Explanation
In this example, specified interrupt subroutines are executed by matching the
high-speed counter's PV with five range set as a range comparison table. With
each interrupt, the data in DM 0000 to DM 0004 is incremented by one.

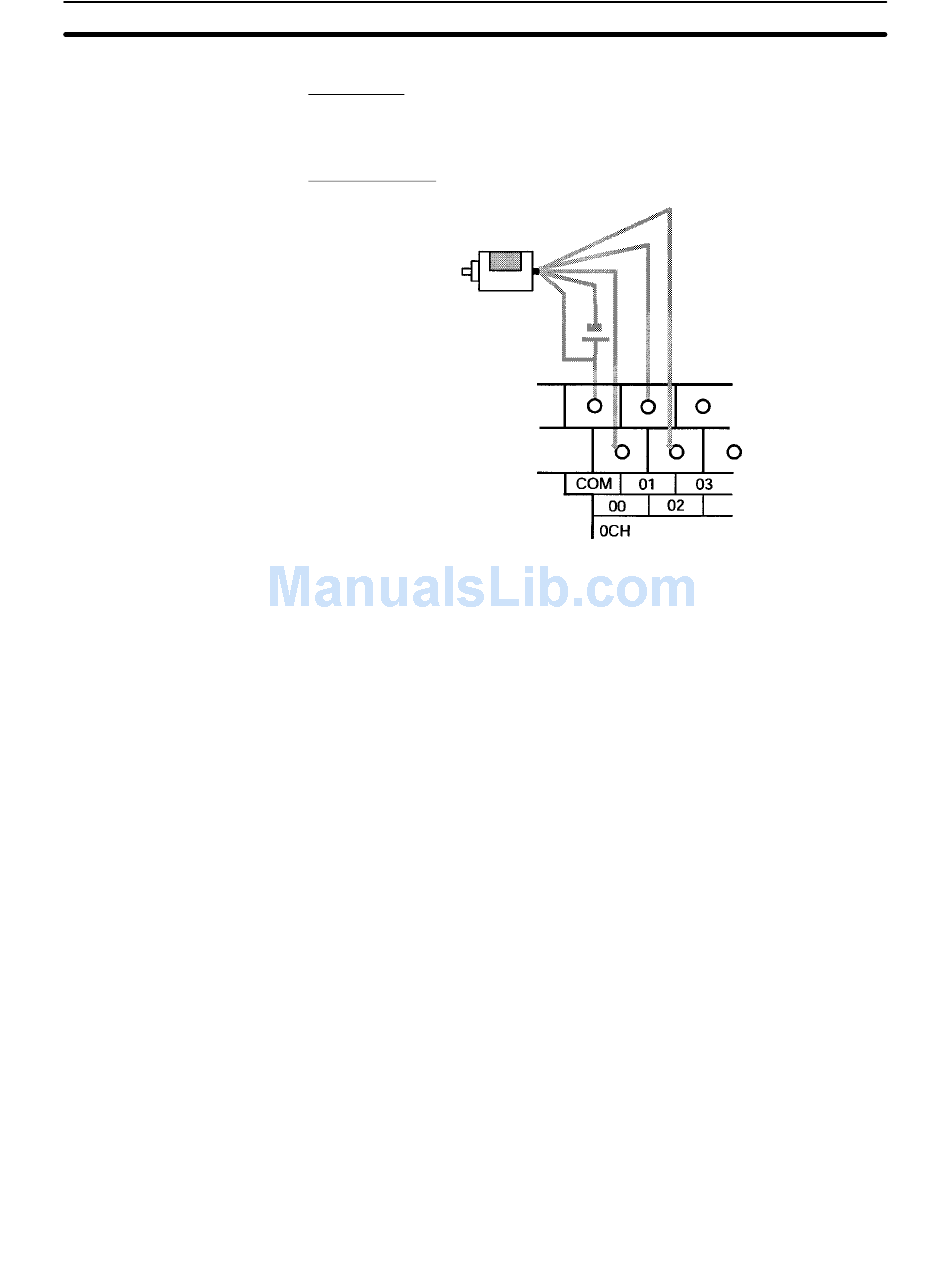

Wiring (CPM2A)
E6B2-CWZ6C
Rotary Encoder
Orange
White
Black
Blue
Brown
Section
2-2
65
