Coding Right-hand Instructions
Multiple Instruction Lines
00000 00001
00002
00100 00200
01001 01002 LR 0000
HR 0015
If a right-hand instruction requires multiple instruction lines (such as KEEP(11)),
all of the lines for the instruction are entered before the right-hand instruction.
Each of the lines for the instruction is coded, starting with LD or LD NOT, to form

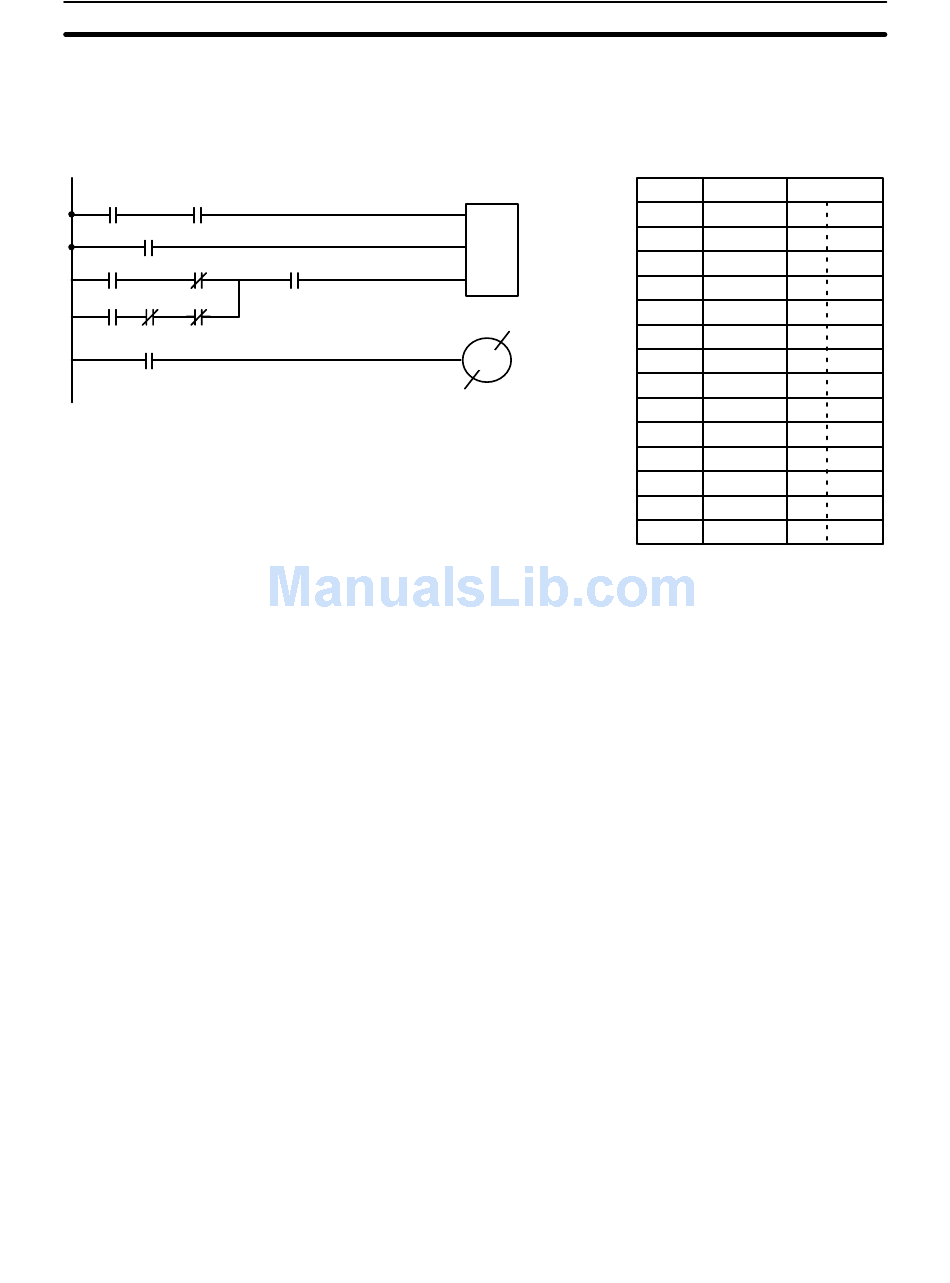

'logic blocks' that are combined by the right-hand instruction. An example of this
for SFT(10) is shown below.
I
P
21600
R
Address Instruction
00000
SFT(10)
00001
HR 00
00002
HR 00
00003
00004
00005
01001 00006
00007
00008
00009
00010
00011
00012
Section 7-5
Data
LD 00000
AND 00001
LD 00002
LD 00100
AND NOT 00200
LD 01001
AND NOT 01002
AND NOT LR 0000
OR LD ––
AND 21600
SFT(10) HR 00
HR 00
LD HR 0015
OUT NOT 01001
