Analog I/O Units
DIP Switch

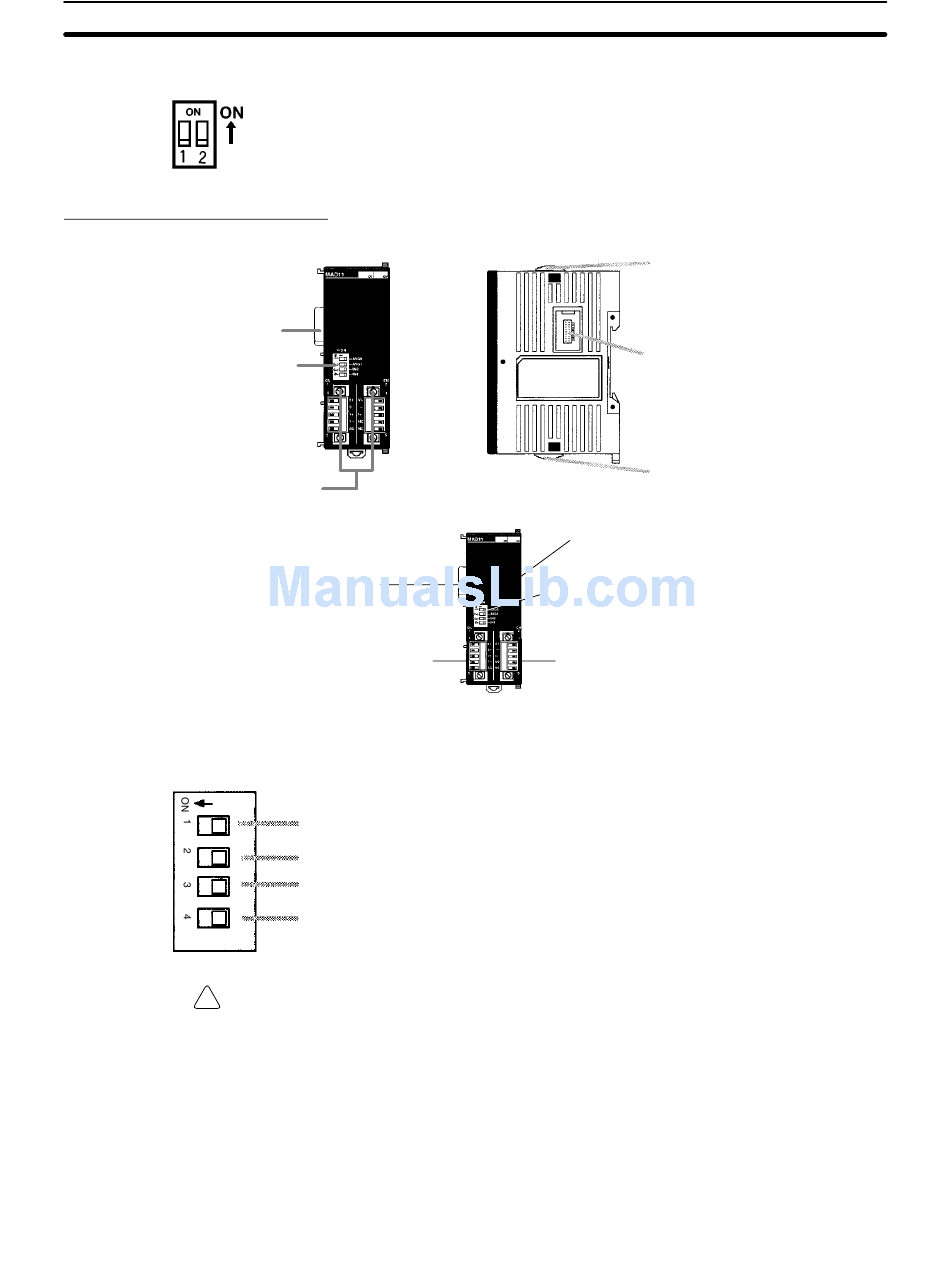

CPM2C-MAD11 Part Names
Expansion I/O
input connector
DIP switch
Analog I/O terminals
Expansion I/O input connector
Analog I/O Terminals
DIP Switch
Caution
!
Expansion I/O Input
Connector
Expansion I/O Output
Connector
Used to enable or disable averaging.
Pin1: Average processing for analog input 0
(OFF: Average processing not performed; ON: Average processing performed)
Pin2: Average processing for analog input 1
(OFF: Average processing not performed; ON: Average processing performed)
Front
Analog input terminals
Connected to analog I/O devices.
Used to specify current or voltage inputs and to enable or disable averaging.
Average processing for analog input 0
(OFF: Average processing not performed; ON: Average processing performed)
Average processing for analog input 1
(OFF: Average processing not performed; ON: Average processing performed)
Input type for analog input 0
(OFF: Voltage input; ON: Current input)
Input type for analog input 1
(OFF: Voltage input; ON: Current input)
Do not touch the DIP switch during operation. Static electricity may cause oper-
ating errors.
Connected to the expansion I/O output connector on the CPU Unit or previous
Expansion (I/O) Unit.
Connected to the expansion I/O input connector on the next Expansion (I/O)
Unit.
Note 1. A maximum of 5 Expansion (I/O) Units can be connected to the CPU Unit
and the total number of allocated words must be 10 maximum for inputs and
10 maximum for outputs.
Side
Lock level
Expansion I/O
output connector
Lock level
Expansion I/O output connector
DIP switch
Analog output terminals
